Management features
Switch type Managed
Switch layer L2
Ports & interfaces

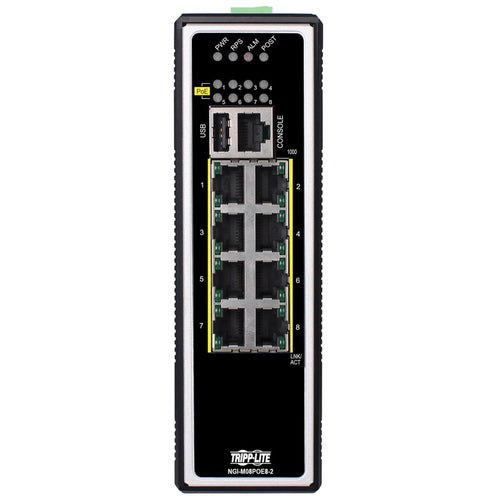

Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Console port RJ-45
USB 2.0 ports quantity 1

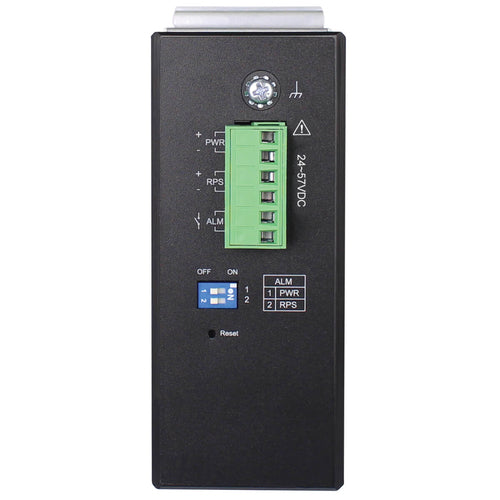

Power connector Terminal block (6-pin)
Network
Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex Yes
Broadcast storm control Yes
Auto MDI/MDI-X Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Auto-negotiation Yes
MAC address auto-learning supported Yes
Data transmission
Switching capacity 16 Gbit/s
MAC address table 16000 entries
Jumbo frames support Yes
Jumbo frames 10000
Security
DHCP features DHCP snooping
Security algorithms SNMP
Design
Product colour Black
Housing material Aluminium
Reset button Yes
LED indicators Yes

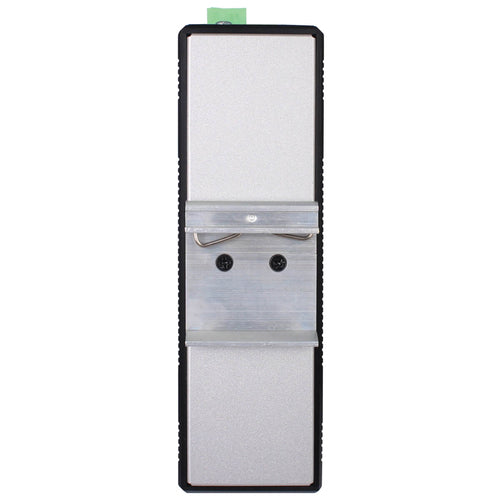

DIN rail mounting Yes
Power
Power supply included Yes
DC input voltage 24 - 57 V
Input current 5.8 A
Power consumption (typical) 15 W
Power consumption (max) 240 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 8
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 240 W
Operational conditions
Operating temperature (T-T) -40 - 75 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 5 - 95%
Operating altitude 0 - 2000 m
Weight & dimensions
Width 50 mm
Depth 119.9 mm
Height 160 mm
Weight 960 g
Packaging data
Package width 232.9 mm
Package depth 182.9 mm
Package height 62 mm
Package weight 1.17 kg
Technical details
Master (outer) case GTIN (EAN/UPC) 10037332266962
Certificates
Compliance certificates CE, REACH, RoHS
Certification FCC, TAA
Logistics data
Country of origin Taiwan
Master (outer) case width 334 mm
Master (outer) case length 384 mm
Master (outer) case height 260.1 mm
Harmonized System (HS) code 8517.62.0020
Master (outer) case gross weight 12.5 kg
Products per master (outer) case 10 pc(s)
