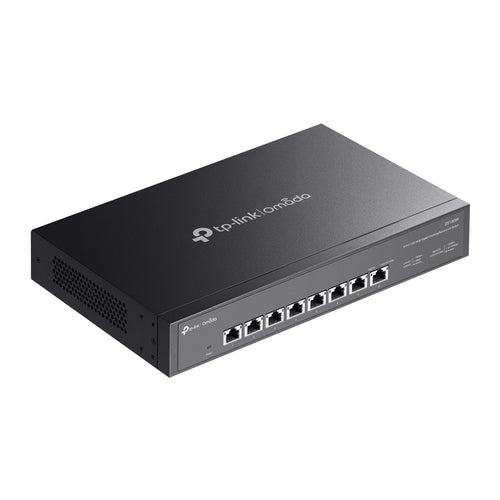

Network Switch TP-Link Omada DS1008X 10G Ethernet Unmanaged Rack Mount 1U
Network Switch TP-Link Omada DS1008X 10G Ethernet Unmanaged Rack Mount 1U
Unmanaged networks requiring high-speed connectivity benefit significantly from the TP-Link Omada DS1008X. Designed for rack-mounted installations, this switch delivers reliable 10G Ethernet support ideal for small to mid-sized business environments.
With a robust specification enabling 100/1000/10000 Mbps transmission speeds, this switch ensures efficient data handling without complicated management configurations. The 1U form factor allows seamless integration into existing rack systems while maximizing space.
- Type: Unmanaged switch
- Ethernet speed: 10G (100/1000/10000 Mbps)
- Form factor: Rack mounting
- Height: 1U
Ideal for IT administrators looking to enhance fast data transmission in multiuser configurations and support dynamic networking requirements.
Available stock: 62
Couldn't load pickup availability
-
Estimated delivery: Jun 23 - Jun 27
Share this product
Infomations
Infomations
No information available.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 100,1000,2500,5000,10000 Mbit/s |
| Auto-negotiation | Yes |
| Data transmission | |
| Switching capacity | 160 Gbit/s |
| Forwarding rate | 119.04 Mpps |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12 |
| Packet buffer memory | 12 MB |
| Security | |
| IGMP snooping | Yes |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
| Number of fans | 1 fan(s) |
| Performance | |
| Plug and Play | Yes |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 0.8 A |
| Power consumption (max) | 31.2 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 294 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Packaging content | |
| Cables included | Power |
| User guide | Yes |
| Rack mount kit | Yes |
| Packaging data | |
| Rubber feet | Yes |
| Certificates | |
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA |
