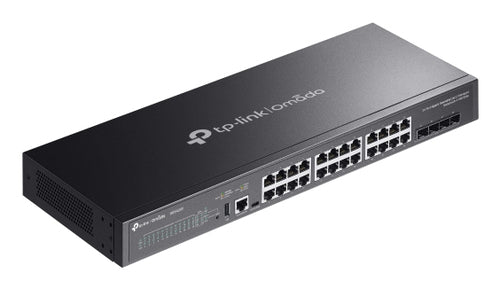

Network Switch TP-Link Omada SG5428X Managed L3 Gigabit Rack Mountable

Infomations

What This Product Does
Omada SG5428X is a dependable entry-level L3 switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It includes 24× gigabit RJ45 ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5428X offers a reliable networking solution for SMEs, and ISPs.

High-speed Connectivity and Powerful Stacking
24× gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.

Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.

Highly Available
ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.

Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.

Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management—all controlled from a single interface.

Apart from the ability to be centrally managed via the web or the Omada app, SG5428X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Network Switch TP-Link Omada SG5428X Managed L3 Gigabit Rack Mountable

Name: Network Switch TP-Link Omada SG5428X Managed L3 Gigabit Rack Mountable
Brand: TP-Link
SKU: SG5428X
Price: 503.77 USD
Availability: InStock

Network Switch TP-Link Omada SG5428X Managed L3 Gigabit Rack Mountable

1 people are viewing this product

$503.77 USD

$503.77 USD ~~$599.49 USD~~

Shipping calculated at checkout.

IT administrators and networking professionals in need of a managed solution will find the TP-Link Omada SG5428X is built to optimize network performance across multiple connected devices. This switch provides the essential features for high-speed connectivity and effective management tailored for business environments.

With its Gigabit Ethernet capabilities, the SG5428X ensures fast data transfers, enhancing operations for all networked devices. Designed for easy rack mounting, it streamlines cabling in server rooms or data centers while offering robust performance.

Type: Managed Layer 3 network switch
Ports: Gigabit Ethernet (10/100/1000)
Form factor: Rack mountable
Ideal for: Businesses requiring network management

Perfect for companies prioritizing effective network management in structured environments, such as office buildings and data centers.

Vendor: TP-Link

Type: Network Switches

Available stock: 60

★

Free Shipping over $2000

Estimated delivery: Jun 23 - Jun 27

Infomations

What This Product Does
Omada SG5428X is a dependable entry-level L3 switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It includes 24× gigabit RJ45 ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5428X offers a reliable networking solution for SMEs, and ISPs.

High-speed Connectivity and Powerful Stacking
24× gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.

Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.

Highly Available
ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.

Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.

Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management—all controlled from a single interface.

Apart from the ability to be centrally managed via the web or the Omada app, SG5428X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Share:

Management features
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
ARP inspection	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
SFP+ module slots quantity	4
USB Type-C ports quantity	1
Console port	RJ-45
USB 2.0 ports quantity	1
Network
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
10G support	Yes
Port mirroring	Yes
Link aggregation	Yes
Broadcast storm control	Yes
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs	4000
Data transmission
Switching capacity	128 Gbit/s
Forwarding rate	95.23 Mpps
MAC address table	16000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	12 MB
Security
DHCP features	DHCP relay, DHCP server
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	SNMP, SNMPv2, SNMPv3
MAC address filtering	Yes
Static port security	Yes
SSH/SSL support	Yes
IP-MAC-Port binding	Yes
Password protection	Yes
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black
LED indicators	Yes
Performance
Physical stacking (units)	4
Built-in processor	Yes
Processor manufacturer	ARM
Processor frequency	1200 MHz
Memory type	DRAM
Internal memory	2000 MB
Flash memory	512 MB
Firmware upgradeable	Yes
Telnet	Yes
Fanless	Yes
Mean time between failures (MTBF)	519.543 h
Power
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	19.6 W
Surge protection	Yes
Surge protection voltage	6 kV
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Management level	4
Bandwidth	64 Gbit/s
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	66.87 BTU/h
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm
Packaging content
Cables included	AC
Quick start guide	Yes
Rack mount kit	Yes
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
