StarTech.com BNDTB310GNDP laptop dock/port replicator

Infomations

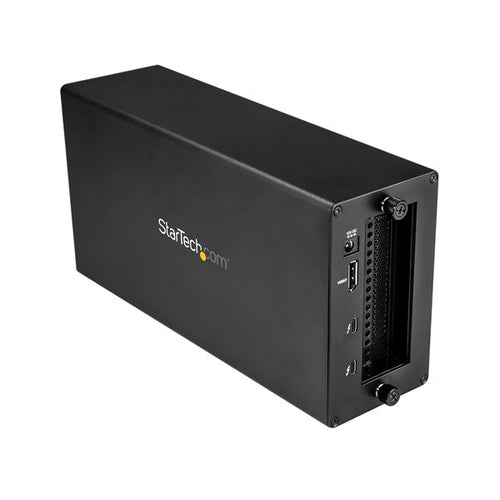

This Thunderbolt 3 PCIe expansion chassis lets you connect your Thunderbolt 3 enabled device to a 10 Gigabit Ethernet network via an external PCIe enclosure

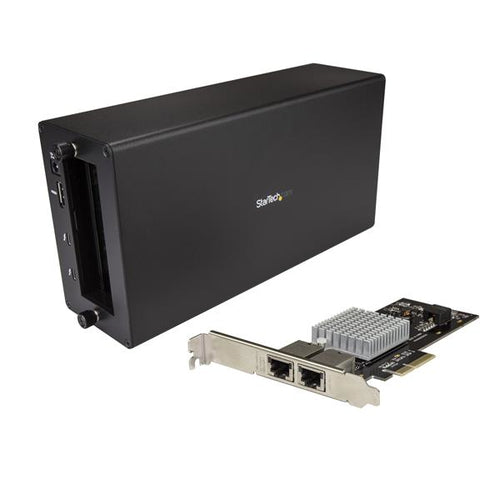

This Thunderbolt 3 to 10GbE NIC lets you connect your Thunderbolt 3 enabled device to a 10 Gigabit Ethernet network. This adapter combines the StarTech.com Thunderbolt 3 PCIe Expansion Chassis (TB31PCIEX16) and the 2-port PCI Express 10G NIC (ST10GPEXNDPI), giving you one DisplayPort output, one additional Thunderbolt 3 port and two 10GbE ports.

Reliable, high-performance and versatile multimode connectivity

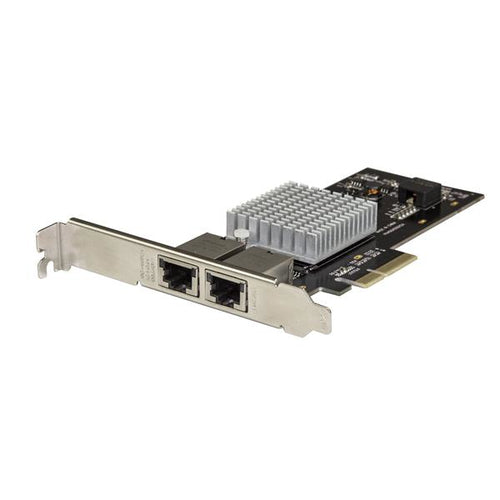

This 10G network card utilizes the Intel X550 chipset with Intel Virtualization Technology (Microsoft Hyper-V) for connectivity, delivering the power, performance and enhanced capabilities you need for dependable network connections.

Install and assemble with ease

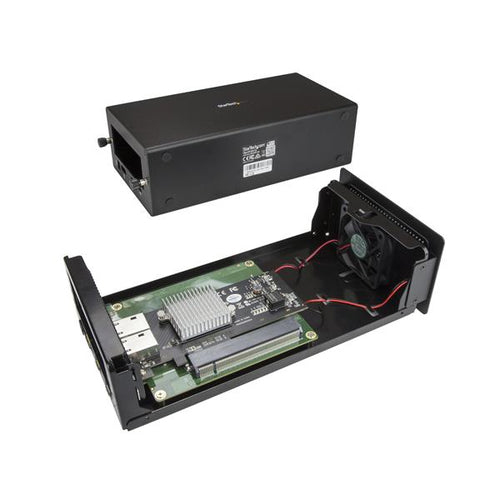

Requiring only a Phillips type screwdriver, you can assemble this Thunderbolt 3 to 10GbE NIC chassis in minutes. It connects easily through a single Thunderbolt 3 port on your computer.

Change up your chassis

The Thunderbolt 3 chassis not only pairs well with the 10GbE NIC -- the card can be swapped for other PCIe cards to help support other functionality and performance. With the extra TB3 port and DP output built into the chassis, you will always have the ability to hook up extended displays to multitask effortlessly.

The TB31PCIEX16 and ST10GPEXNDPI are backed by a StarTech.com 2-year warranty.

The StarTech.com Advantage

- Add 10GbE connectivity to your Thunderbolt 3 desktop or laptop computer
- Upgrade your peripherals without having to upgrade your chassis by just switching out your PCIe card
- Assemble and install easily with just a screwdriver

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

NIC Chassis StarTech Thunderbolt 3 2-Port 10GbE Wired 10Gbps

Name: NIC Chassis StarTech Thunderbolt 3 2-Port 10GbE Wired 10Gbps
Brand: StarTech.com
SKU: BNDTB310GNDP
Price: 860.18 USD
Availability: InStock

NIC Chassis StarTech Thunderbolt 3 2-Port 10GbE Wired 10Gbps

1 people are viewing this product

$860.18 USD

$860.18 USD ~~$946.20 USD~~

Shipping calculated at checkout.

For IT professionals in demanding environments, the StarTech Thunderbolt 3 to 2-port 10GbE NIC chassis enhances your laptop's connectivity for high-speed networking. This adapter is essential for connecting to high-performance Ethernet networks seamlessly.

Its robust design supports multiple Ethernet standards, allowing for compatibility across a variety of networks. Whether you are transferring data heavy files or require a reliable internet connection, this NIC chassis meets your high-performance needs.

Type: Thunderbolt 3 to 2-port 10GbE NIC Chassis
Interface: Wired
Speed: 10Gbps; supports 100, 1000, 2500, 5000, and 10000 Mbit/s
Standards: 10GBASE-T, 100BASE-T, 1000BASE-T, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x
Color: Black

Perfect for professionals needing reliable and robust internet connections in data-centric environments.

Vendor: StarTech.com

Type: Laptop Docks & Port Replicators

Available stock: 13

★

Free Shipping over $2000

Estimated delivery: Jun 14 - Jun 18

Infomations

This Thunderbolt 3 PCIe expansion chassis lets you connect your Thunderbolt 3 enabled device to a 10 Gigabit Ethernet network via an external PCIe enclosure

This Thunderbolt 3 to 10GbE NIC lets you connect your Thunderbolt 3 enabled device to a 10 Gigabit Ethernet network. This adapter combines the StarTech.com Thunderbolt 3 PCIe Expansion Chassis (TB31PCIEX16) and the 2-port PCI Express 10G NIC (ST10GPEXNDPI), giving you one DisplayPort output, one additional Thunderbolt 3 port and two 10GbE ports.

Reliable, high-performance and versatile multimode connectivity

This 10G network card utilizes the Intel X550 chipset with Intel Virtualization Technology (Microsoft Hyper-V) for connectivity, delivering the power, performance and enhanced capabilities you need for dependable network connections.

Install and assemble with ease

Requiring only a Phillips type screwdriver, you can assemble this Thunderbolt 3 to 10GbE NIC chassis in minutes. It connects easily through a single Thunderbolt 3 port on your computer.

Change up your chassis

The Thunderbolt 3 chassis not only pairs well with the 10GbE NIC -- the card can be swapped for other PCIe cards to help support other functionality and performance. With the extra TB3 port and DP output built into the chassis, you will always have the ability to hook up extended displays to multitask effortlessly.

The TB31PCIEX16 and ST10GPEXNDPI are backed by a StarTech.com 2-year warranty.

The StarTech.com Advantage

- Add 10GbE connectivity to your Thunderbolt 3 desktop or laptop computer
- Upgrade your peripherals without having to upgrade your chassis by just switching out your PCIe card
- Assemble and install easily with just a screwdriver

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Share:

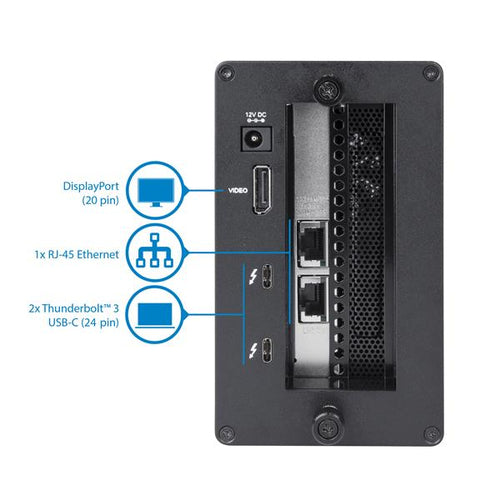

Ports & interfaces
Connectivity technology	Wired
Host interface	Thunderbolt 3
DisplayPorts quantity	1
Thunderbolt 3 ports quantity	2
Microphone in	No
DC-in jack	Yes
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	2
Ethernet LAN data rates	100,1000,2500,5000,10000 Mbit/s
Copper ethernet cabling technology	10GBASE-T, 100BASE-T, 1000BASE-T
Networking standards	IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x
Jumbo frames support	Yes
Jumbo frames	9000
Flow control support	Yes
Auto MDI/MDI-X	Yes
Full duplex	Yes
VLAN tagging	Yes
Performance
Card reader integrated	No
Data transfer rate	40 Gbit/s
Product colour	Black
Housing material	Aluminium, Steel
Certification	CE, FCC
Cooling
Built-in fan	Yes
Number of fans	1 fan(s)
Bearing type	Sleeve bearing
Fan diameter	9.2 cm
Noise level	24.55 dB
Maximum airflow	14.06 cfm
Power
AC input voltage	100 - 240 V
Input current	2 A
Output voltage	12 V
Output current	5.417 A
Power consumption (typical)	65 W
Power plug type	Type N
Compatible power plug types	AU, EU, JP, UK, US
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	20 - 80%
Weight & dimensions
Width	142 mm
Depth	280 mm
Height	82 mm
Weight	1.6 kg
Packaging data
Package width	290 mm
Package depth	360 mm
Package height	145 mm
Package weight	3.5 kg
Packaging content
Cables included	Thunderbolt
AC adapter included	Yes
Quick start guide	Yes
Low-profile bracket	Yes
Technical details
Compliance certificates	RoHS
Other features
PCI slot	PCI-E x4
Cable length	0.5 m
Chipset	Intel - Alpine Ridge DSL6540, Intel - X550AT
