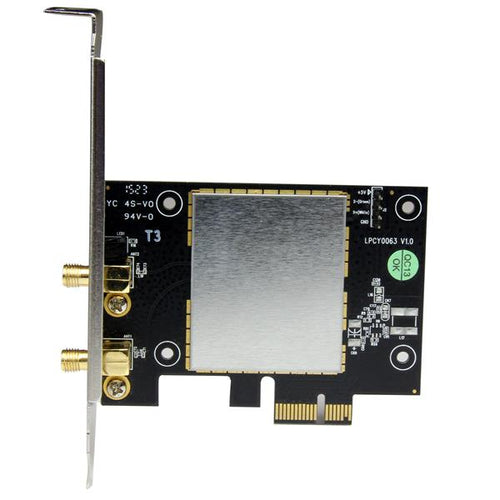

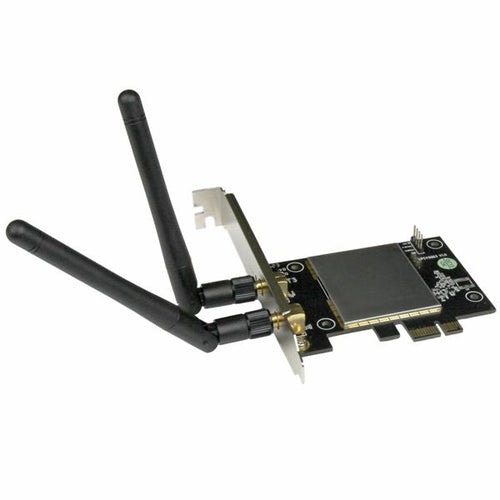

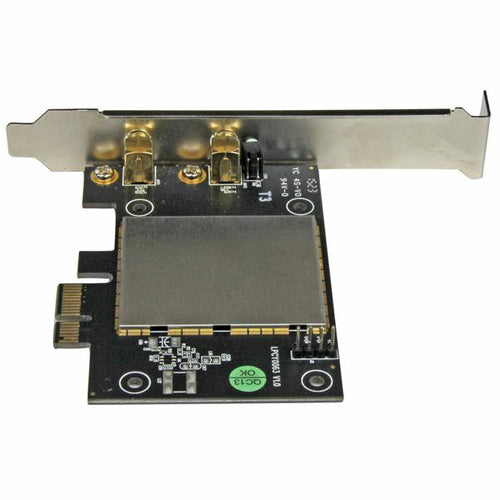

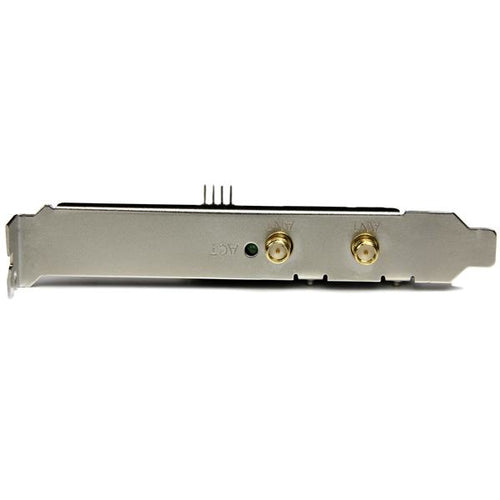

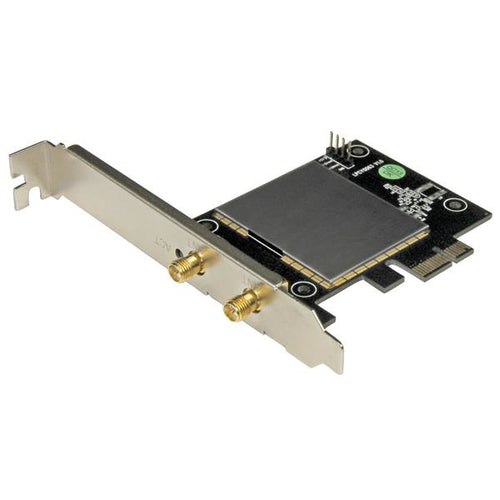

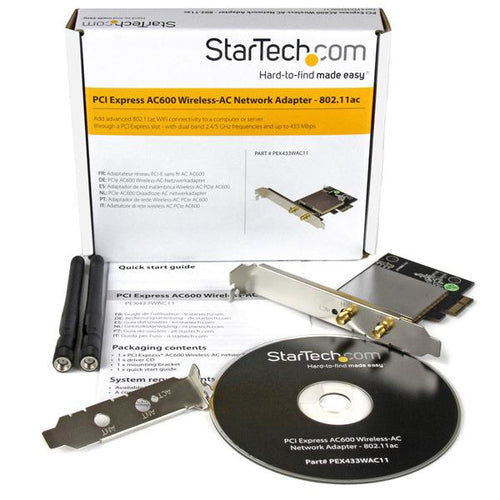

StarTech.com PEX433WAC11 network card
StarTech.com PEX433WAC11 network card
Available stock: 18
Couldn't load pickup availability
Get $20 off when you spend $1,000 or more! Learn more
-
Estimated delivery: Dec 10 - Dec 14
Share this product
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN |
| Network | |
| Maximum data transfer rate | 433 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 150,433 Mbit/s |
| Security algorithms | 64-bit WEP, 128-bit WEP, AES, TKIP, WPA, WPA2 |
| Auto MDIX IEEE | No |
| Full duplex | No |
| Bandwidth | 0.08 GHz |
| Maximum operating distance | 30 m |
| Design | |
| Internal | Yes |
| Antenna connector type | RP-SMA |
| Chipset | Realtek 8821AE |
| LED indicators | Activity, Link |
| Certification | CE, FCC, UL |
| System requirements | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | 10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 97 mm |
| Depth | 121 mm |
| Height | 22 mm |
| Weight | 48 g |
| Packaging data | |
| Drivers included | Yes |
| Low-profile bracket | Yes |
| Package width | 136 mm |
| Package depth | 163 mm |
| Package height | 32 mm |
| Package weight | 170 g |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Gain | 3 dBi |
| Detachable antenna(s) | Yes |
| Antennas quantity | 2 |
| Quick start guide | Yes |
