Features
Type Transmitter & receiver
Connectivity technology Wired
Cable types supported Cat6
Rack mounting No
Maximum digital resolution 3840 x 2160 pixels
Maximum refresh rate 60 Hz
On Screen Display (OSD) No
Product colour Black
LED indicators Yes

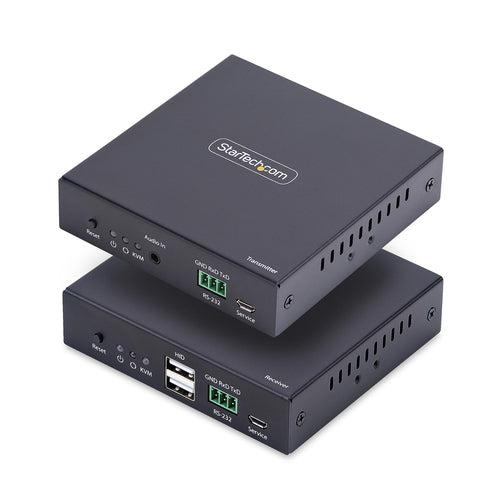

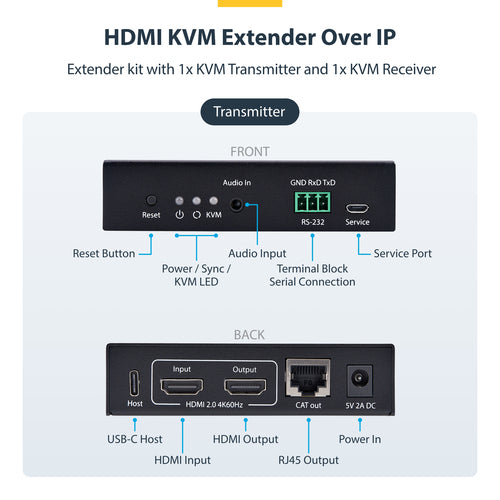

Transmitter

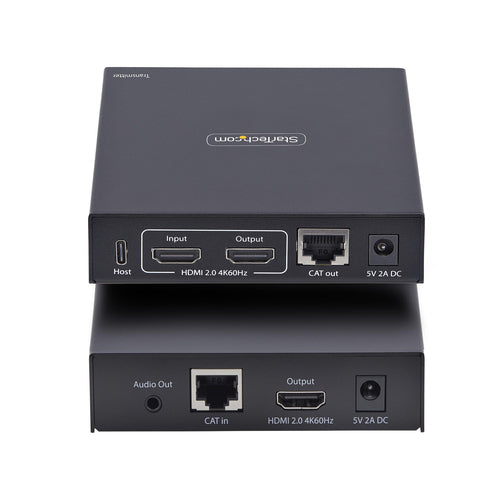

Transmitter video port type HDMI
Transmitter local video port Yes
Transmitter local video port type HDMI
RJ-45 ports quantity (transmitter) 1
Transmitter Micro-USB ports quantity 1

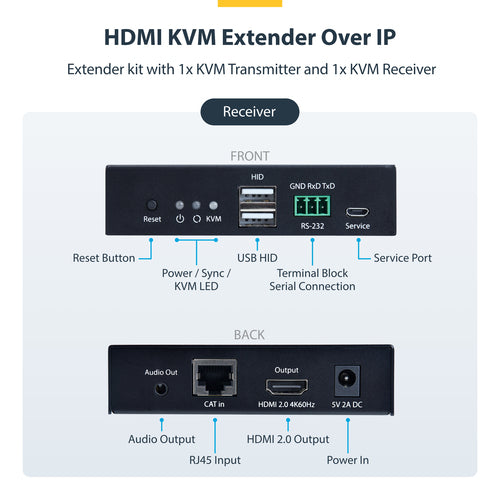

Receiver
Receiver local video port type HDMI
RJ-45 ports quantity (receiver) 1
Receiver Micro-USB ports quantity 1
Receiver USB Type-A ports quantity 2
Ports & interfaces
USB port type USB Type-C
USB 2.0 ports quantity 1
HDMI version 2.0

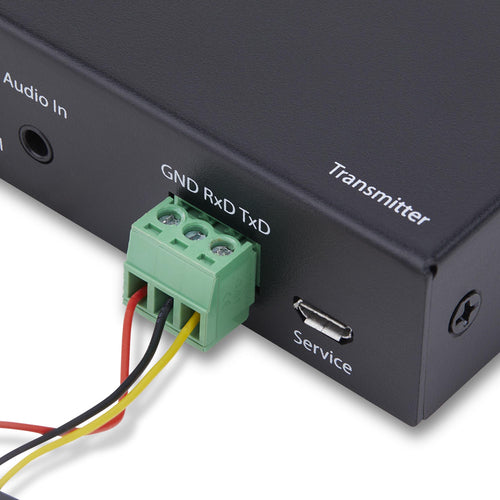

RS-232 ports 2
PC Audio in Yes
PC Audio out Yes
Power
Power plug type Type M
AC input voltage 100 - 240 V
Input current 0.3 A
AC adapter output voltage 5 V
AC adapter output current 2 A
Power consumption (transmitter) (max) 10 W
Power consumption (receiver) (max) 10 W
DC-in jack Yes
Packaging data
Package width 240 mm
Package depth 176 mm
Package height 80 mm
Package weight 1.1 kg

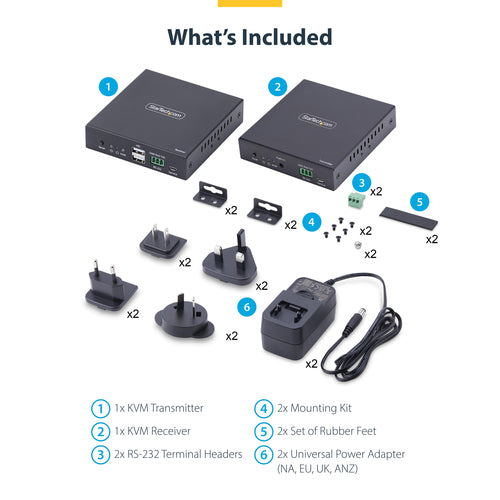

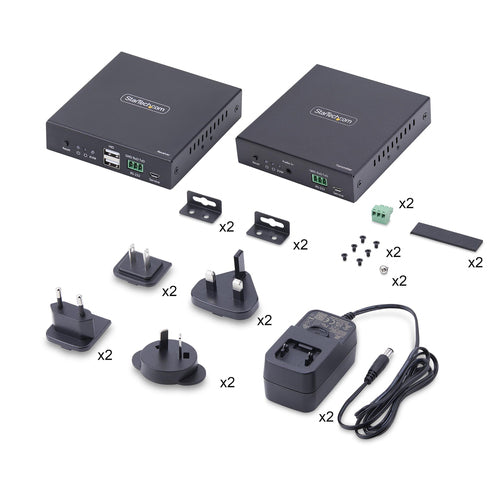

Packaging content
AC adapter included Yes
Mounting bracket(s) included Yes
Included power plug types ANZ, EU, NA, UK
Operational conditions
Operating temperature (T-T) -20 - 60 °C
Storage temperature (T-T) -30 - 70 °C
Operating relative humidity (H-H) 0 - 90%
Other features
Mean time between failures (MTBF) 10000 h
Compliance certificates Federal Communications Commission (FCC), RoHS
Logistics data
Master (outer) case width 380 mm
Master (outer) case length 270 mm
Master (outer) case height 420 mm
Products per master (outer) case 10 pc(s)
