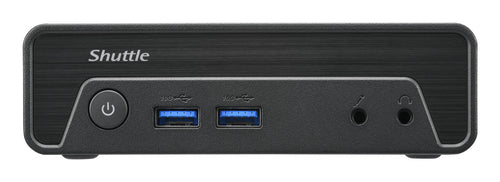

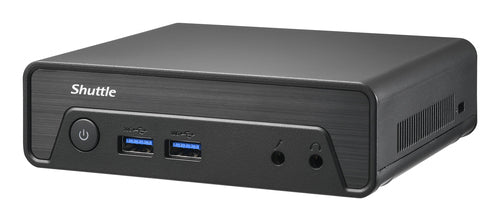

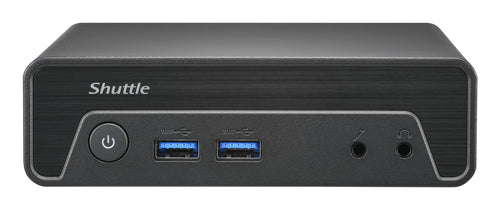

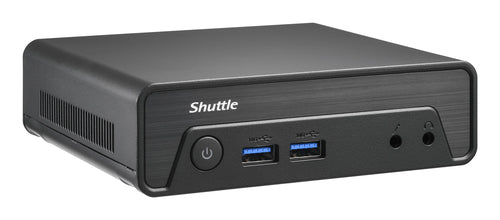

Shuttle Nano PC Mini PC Barebone Intel N100 0.6L Fanless 24/7
Shuttle Nano PC Mini PC Barebone Intel N100 0.6L Fanless 24/7
Experience compact computing with the Shuttle Nano PC NE10N, designed for reliable 24/7 operation. Perfect for digital signage or as a space-efficient desktop solution, it delivers powerful performance in a tiny form factor.
With its fanless design, this Mini PC ensures silent operation while maintaining efficiency. The inclusion of multiple connectivity options makes it ideal for home or business environments where versatility is key.
- Brand: Shuttle
- Model: NE10N
- Processor: Intel N100
- Size: 0.6L

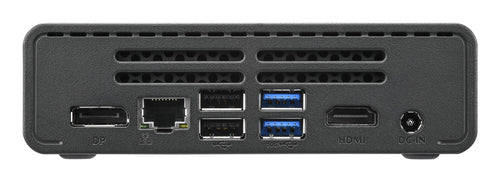

- Display Outputs: 1x HDMI, 1x DP
- USB Ports: 6x USB
- Network: 1x LAN
- Memory Type: DDR4-SDRAM
- Power Consumption: 65 W
- Suitable for: 24/7 permanent operation
- Mounting: Includes VESA
Available stock: 10
Couldn't load pickup availability
-
Estimated delivery: Jun 23 - Jun 27
Share this product
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor model | N100 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 3.4 GHz |
| Built-in processor | Yes |
| Processor cache | 6 MB |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 1 |
| Maximum internal memory | 16 GB |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Single-channel |
| Memory voltage | 1.2 V |
| ECC | No |
| Non-ECC | Yes |
| Storage | |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| Storage drive interface | PCI Express, Serial ATA |
| Card reader integrated | No |
| Graphics | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Audio | |
| Built-in speaker(s) | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Design | |
| Chassis type | 0.6L sized PC |
| Product colour | Black |
| Cooling type | Passive |
| LED indicators | Yes |
| Housing material | Plastic |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
| Performance | |
| Motherboard chipset | Intel SoC |
| Number of processors supported | 1 |
| BIOS type | EFI AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | Senary SN6141 |
| Technical details | |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Software | |
| Windows operating systems supported | Windows 11 |
| Linux operating systems supported | Yes |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, ErP |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 65 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 3.42 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 135 mm |
| Depth | 115 mm |
| Height | 39 mm |
| Weight | 600 g |
| Package weight | 1.5 kg |
| Packaging content | |
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
