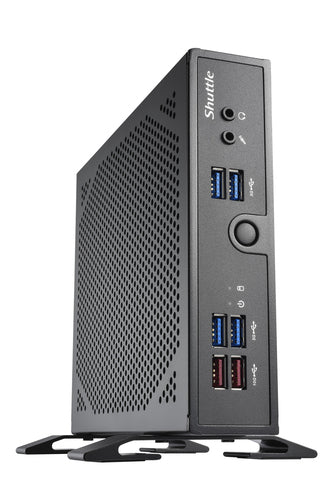

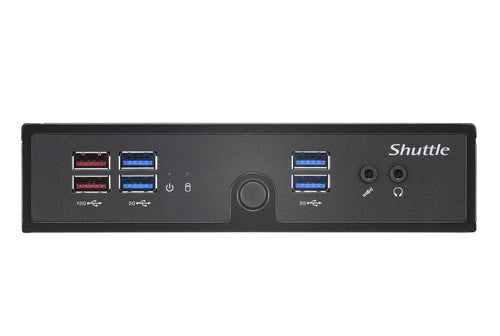

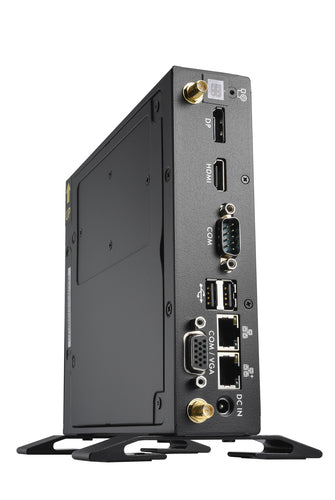

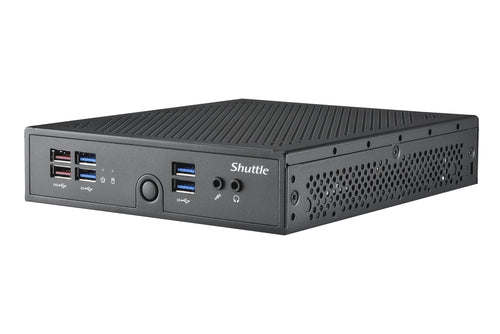

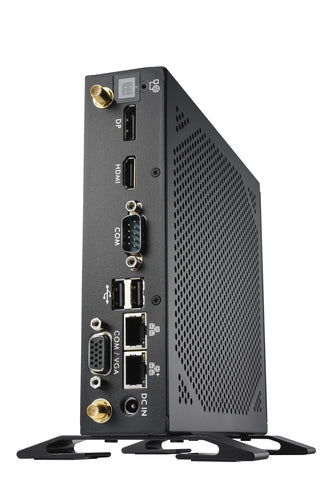

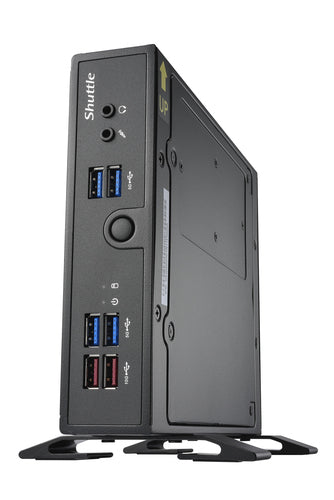

Mini PC Barebone Shuttle XPC DS50U5 i5-1335U 2.5Gbit LAN Fanless
Mini PC Barebone Shuttle XPC DS50U5 i5-1335U 2.5Gbit LAN Fanless
The Shuttle XPC slim Barebone DS50U5 is ideal for those seeking a compact yet powerful computing solution that operates quietly and efficiently. Perfect for 24/7 permanent operation, this fanless mini PC fits seamlessly into any workspace while delivering reliable performance.
Equipped with robust features for business and home use, the DS50U5 combines the power of an Intel i5-1335U processor with versatile connectivity options. Enjoy seamless interactions with dual LAN ports, HDMI, DisplayPort, and VGA connectivity for various display setups.
- Processor: Intel i5-1335U
- Size: 1.3L
- Dual LAN: 1x 2.5Gbit, 1x 1Gbit

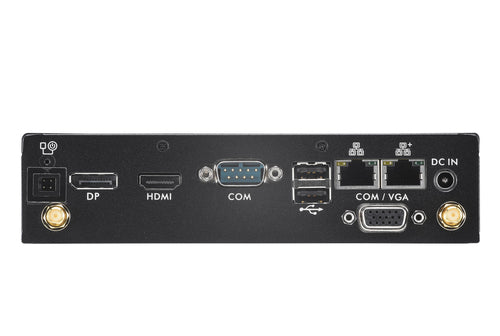

- Ports: 1x COM, 1x HDMI, 1x DP, 1x VGA
- Form Factor: Fanless for quiet operation
- Memory: Supports DDR5-SDRAM
- Storage: PCI Express and Serial ATA III compatible
- Power: 90 W
Available stock: 10
Couldn't load pickup availability
-
Estimated delivery: Jun 23 - Jun 27
Share this product
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 13th gen Intel® Core™ i5 |
| Processor model | i5-1335U |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor boost frequency | 4.6 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Built-in processor | Yes |
| Performance-core boost frequency | 4.6 GHz |
| Efficient-core boost frequency | 3.4 GHz |
| Processor cache | 12 MB |
| Thermal Design Power (TDP) | 15 W |
| ECC supported by processor | No |
| Memory | |
| Internal memory installed | No |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 5200 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.1 V |
| Storage | |
| Storage drives installed | No |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| Storage drive interface | PCI Express, Serial ATA III |
| NVMe | Yes |
| Number of storage drives supported | 3 |
| Graphics | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Audio | |
| Built-in speaker(s) | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I219, Intel I226-LM |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial ports quantity | 1 |
| DC-in jack | Yes |
| Design | |
| Chassis type | 1.3L sized PC |
| Product colour | Black |
| Cooling type | Passive |
| On/off switch | Yes |
| LED indicators | HDD, Power |
| Housing material | Steel |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
| Performance | |
| Number of processors supported | 1 |
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | RealTek ALC888S |
| Technical details | |
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Linux operating systems supported | Yes |
| Operating system installed | No |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, ErP |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 90 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 1.6 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 165 mm |
| Height | 39.5 mm |
| Weight | 1.6 kg |
| Package weight | 2.3 kg |
| Packaging content | |
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
