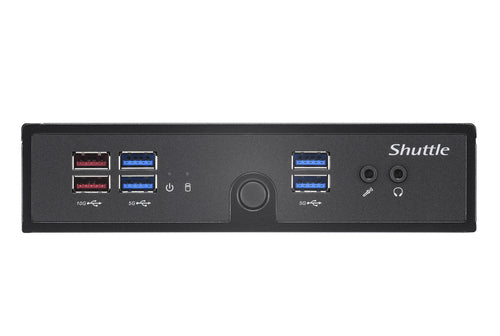

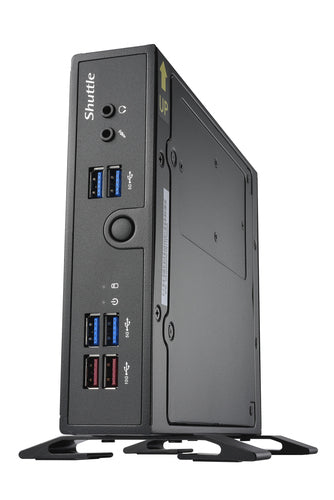

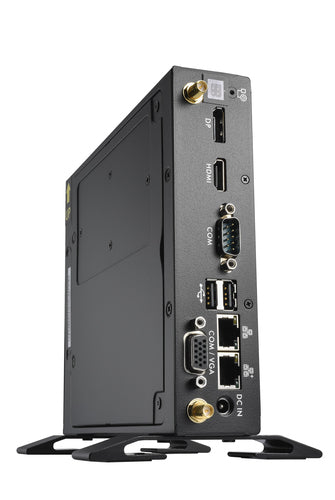

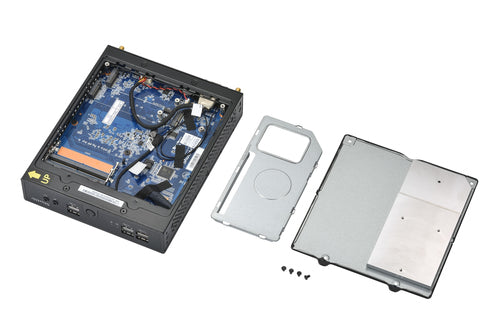

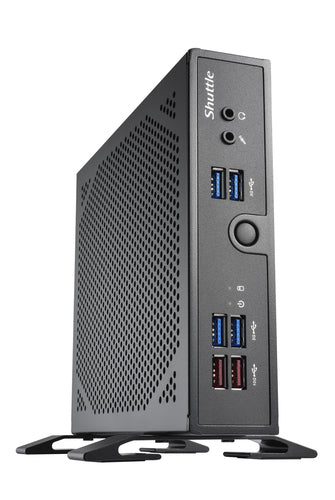

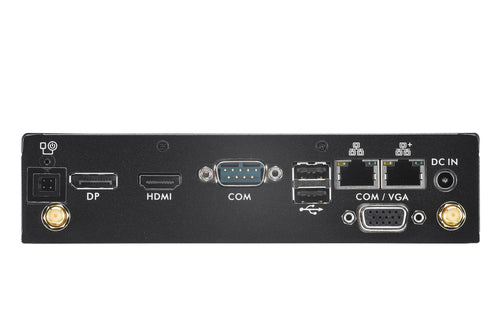

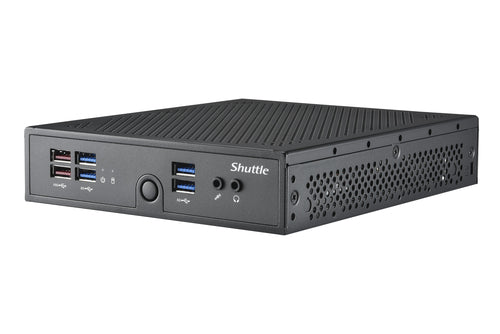

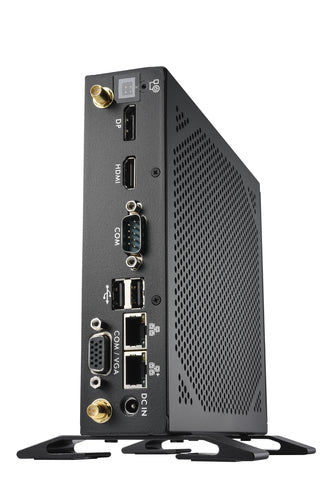

Mini PC Barebone Shuttle XPC DS50U Fanless Intel Celeron 7305
Mini PC Barebone Shuttle XPC DS50U Fanless Intel Celeron 7305
The Shuttle XPC DS50U is designed for customers who need a reliable and compact computing solution for 24/7 operation. Its fanless design keeps it quiet, making it perfect for environments where noise is a concern.
This slim barebone PC offers a balance of performance and energy efficiency, powered by an Intel Celeron 7305 processor. Ideal for business applications, digital signage, or as a home server.
- Intel Celeron 7305 processor
- Fanless design for silent operation
- 2x LAN ports (1x 2.5Gbit, 1x 1Gbit)
- Multiple video outputs: HDMI, DisplayPort, VGA
- Compact 1.3L size
- DDR5-SDRAM support
- PCI Express and Serial ATA III interfaces
- Rated for permanent 24/7 operation
- 90 W power consumption
Available stock: 1
Couldn't load pickup availability
-
Estimated delivery: Jun 23 - Jun 27
Share this product
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | 7305 |
| Processor cores | 5 |
| Processor threads | 5 |
| Performance cores | 1 |
| Efficient cores | 4 |
| Built-in processor | Yes |
| ECC supported by processor | No |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 5200 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.1 V |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| Storage drive interface | PCI Express, Serial ATA III |
| NVMe | Yes |
| Number of storage drives supported | 3 |
| Graphics | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Audio | |
| Built-in speaker(s) | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I219, Intel I226-LM |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial ports quantity | 1 |
| DC-in jack | Yes |
| Design | |
| Chassis type | 1.3L sized PC |
| Product colour | Black |
| Cooling type | Passive |
| On/off switch | Yes |
| LED indicators | HDD, Power |
| Housing material | Steel |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
| Performance | |
| Number of processors supported | 1 |
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | RealTek ALC888S |
| Technical details | |
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Linux operating systems supported | Yes |
| Operating system installed | No |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, ErP |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 90 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 1.6 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 165 mm |
| Height | 39.5 mm |
| Weight | 1.6 kg |
| Package weight | 2.3 kg |
| Packaging content | |
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
