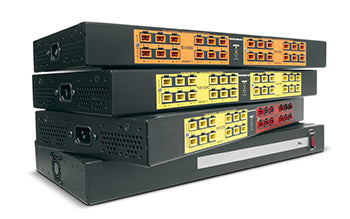

Design out wall warts with maximum power, 300W DC Power Distribution with 24V outputs.

Optimize any installation with the industry-leading power capacity of the fixed voltage, DC Power Distribution line. These solutions not only remove messy, space-consuming, unreliable wall warts and other power clutter from the design, but also provide maximum power to support a multitude of 24V devices.

The 300W unit provides high current capacity to an extensive number of 24V outputs, maximizing the same voltage in the single unit.

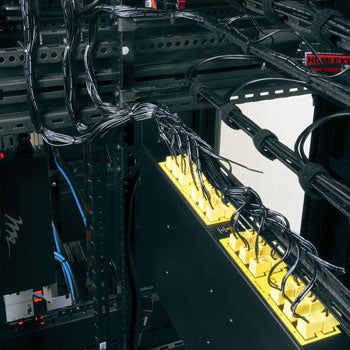

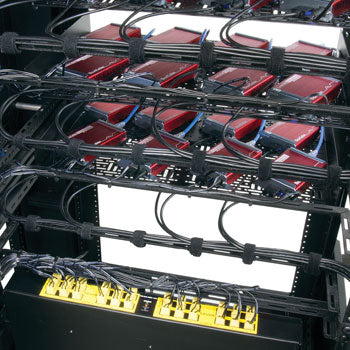

The multi-mount design can be installed in an available 1RU space or at the back or side of the rack for zero-U mounting, providing ultimate installation flexibility.

Promoting enhanced design of system power demands, while still providing a seamless install experience, the 300W DC Power Distribution line is innovatively engineered for multiple applications spanning markets from North America to Europe.

Industry-leading number of outputs with power distributed to as many as 24 devices

Maximum current capacity, up to 300W of power 24V, 12.5A Max (300W)

Reliable multi-level protection on both AC input and DC outputs to ensure maximum uptime MOV surge and overload protection on the AC input Individual redundancy built in with auto-resetting PTC overload protection on each individual output

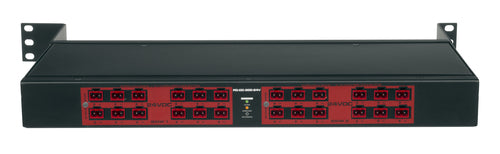

Greater mounting flexibility with multi-mount design that fits in 1 rackspace or can mount at the back or side of the rack simply by rotating mounting brackets

Color-coded screw terminal connectors with industry standard 24V and polarity labeling for easy identification

120V-230V input supports both North American and European installations

LED indicator lights alerting maximum capacity on each voltage bank

Leads trimmed to suitable length leaves less cable to manage, enhancing aesthetics and increasing airflow

Ultra-quiet, thermostatic temperature controlled fan with automatic speed adjustment

Hardware kit includes flexible mounting hardware, color-coded screw terminal connectors to connect devices, and a 6ft IEC power cord
