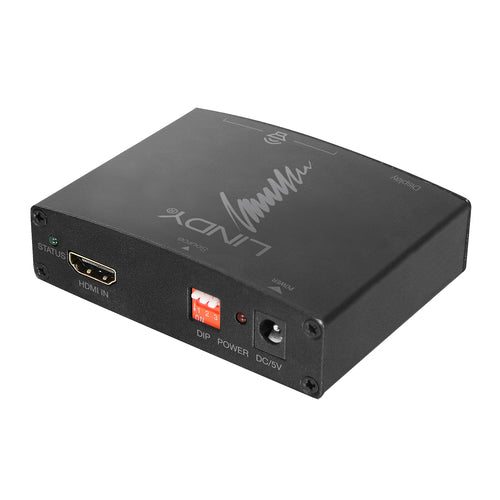

Inputs
HDMI in 1
DC-in jack Yes

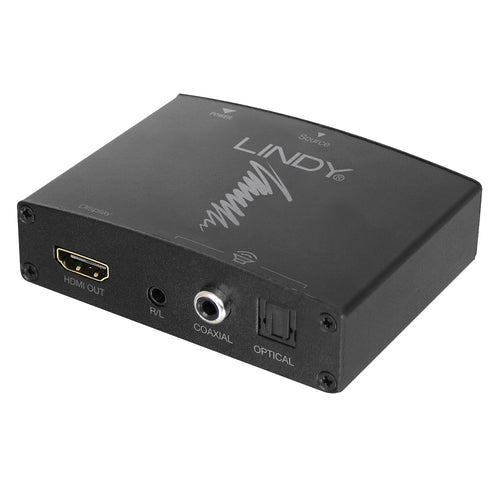

Outputs
Digital audio coaxial out 1
Audio (L/R) out 1
Digital audio optical out 1
S/PDIF out port Yes
Number of HDMI outputs 1
Technical details
Maximum data transfer rate 10200 Mbit/s
HDCP Yes
HDCP version 1.4
Chipset EP91A2E
HDMI version 1.4
HDMI pass-through Yes
CEC pass-through Yes
Input impedance 100 Ω
Output impedance 100 Ω
Supported sample rates 192 kHz
Supported chroma subsampling 4:4:4
Audio codecs Dolby Digital 2/5.1, DTS-HD
Accuracy 0.1 dB
Product colour Black
Maximum resolution 4096 x 2160 pixels
Audio recording formats LPCM
Housing material Metal
Compliance certificates REACH, RoHS
Certification CE, UKCA, FCC, RoHS, REACH
Power
Power consumption (typical) 5 W
Power note 5.5/2.1mm DC
Weight & dimensions
Width 65 mm
Depth 88 mm
Height 24 mm
Weight 118 g
Operational conditions
Operating temperature (T-T) -15 - 55 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 10 - 90%
Packaging data
Quantity 1
Cables included DC to USB Type-A
Manual Yes
Package width 202 mm
Package depth 144 mm
Package height 55 mm
Package weight 250 g
Package type Box
Logistics data
Harmonized System (HS) code 85176990
