Data transmission
Switching capacity 448 Gbit/s
Throughput 334 Mpps
Design
Stackable Yes
Performance
Physical stacking (units) 10
Built-in processor Yes
Processor frequency 1800 MHz
Memory type DDR4-SDRAM
Internal memory 8000 MB
Flash memory 32000 MB
Power
Power consumption note Idle: 49W 100% Traffic Rate: 64W
Other features
Latency 1 Gbps: 2.28 μs 10 Gbps: 1.46 μs 25 Gbps: 1.90 μs 50 Gbps: 3.49 μs
Memory and processor CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration
I/O ports 24 x 10/100/1000 BaseT ports 4 x 1G/10G/25G/50G [4] SFP ports 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port
Performance management Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Weight (imperial) 4.81 kg (10.6 lbs)
Dimensions (W x D x H) (imperial) 43.9 x 442 x 386.1 mm (1.73 x 17.4 x 15.2")

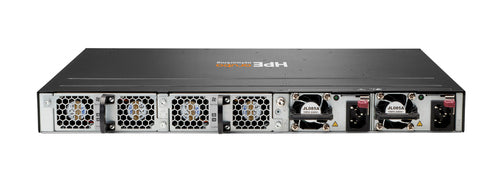

Fan Switch has two fan tray slots and comes with one fan tray installed. Minimum one fan trays required. Optional second fan tray ordered separately. Fan trays are field replaceable and hot‑swappable. Each fan tray contains two fans.
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Weight & dimensions
Width 44 mm
Depth 442 mm
Height 385 mm
Weight 4.81 kg
