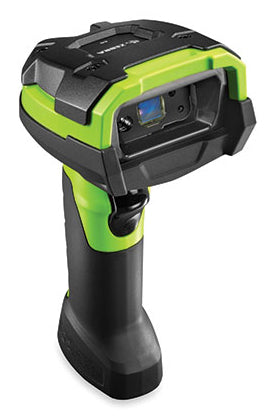

Zebra DS3608-ER Handheld Barcode Reader 1D/2D Laser Scan High-Speed
Zebra DS3608-ER Handheld Barcode Reader 1D/2D Laser Scan High-Speed
Unlock the power of efficient scanning with the Zebra DS3608-ER handheld barcode reader. Ideal for retail, warehousing, and logistics, this device allows you to read both 1D and 2D codes effortlessly, enhancing your workflow and productivity.
Designed for challenging environments, this robust barcode scanner ensures you can capture data quickly and accurately—no matter the code type. Its durability and versatility make it a perfect choice for busy operations looking for reliable scanning solutions.
- Type: Handheld barcode reader
- Scan Capability: 1D/2D laser scanning
- Supported Codes: Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128, MSI, Plessey, U.P.C., Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417
- Wavelength: 655 nm
Available stock: 162
Couldn't load pickup availability
-
Estimated delivery: May 31 - Jun 04
Share this product
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Optical sensor resolution | 1280 pixels |
| Scanner type | 1D/2D |
| Sensor type | Laser |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Wavelength | 655 nm |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -45 - 45° |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232, USB, Keyboard wedge |
| Ethernet LAN | Yes |
| Performance | |
| International Protection (IP) code | IP67 |
| Protection features | Dust resistant, Shock resistant, Water resistant |
| LED indicators | Yes |
| Product colour | Black, Green |
| Programming function | Yes |
| Power | |
| Power source type | Battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3100 mAh |
| Number of reads per charge | 70000 |
| Weight & dimensions | |
| Width | 132 mm |
| Depth | 76 mm |
| Height | 185 mm |
| Weight | 334 g |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
