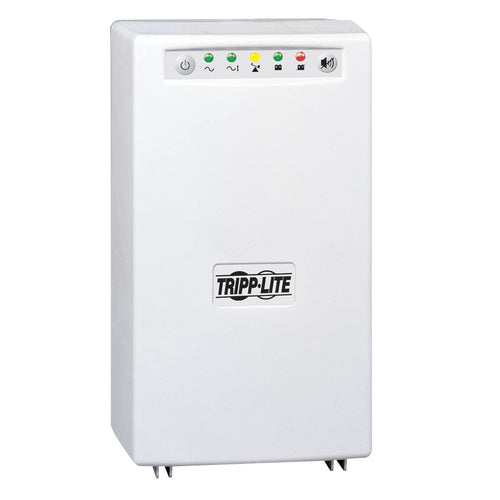

Tripp Lite SMX700HG uninterruptible power supply (UPS)

Infomations

The SMX700HG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient care vicinities. The 700VA/450W capacity provides up to 36 minutes of runtime for a half load or 14.5 minutes for a full load, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout.

Built-in line-interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274V to normal 230V nominal output, without drawing battery power. The SMX700HG’s built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Cumulative leakage current of all connected equipment is less than 100 microamps.

This UPS system features six IEC320 C13 hospital-grade outlets and has a hospital-grade IEC320 C14 plug on a 15-centimeter (six-inch) dongle. All six outlets provide both backup protection and surge protection, rated to 340 joules.

The SMX700HG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with free downloadable PowerAlert® software for safe, unattended system shutdown in the event of a prolonged power failure.

This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMX700HG in this type of application will void the battery warranty.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Uninterruptible Power Supply Tripp Lite SmartPro 230V 700VA 450W 6 Outlets

Name: Uninterruptible Power Supply Tripp Lite SmartPro 230V 700VA 450W 6 Outlets
Brand: Tripp Lite
SKU: SMX700HG
Price: 913.42 USD
Availability: InStock

Uninterruptible Power Supply Tripp Lite SmartPro 230V 700VA 450W 6 Outlets

1 people are viewing this product

$913.42 USD

$913.42 USD ~~$1,114.37 USD~~

Shipping calculated at checkout.

Medical facilities require an uninterruptible power supply that ensures reliability and protection for sensitive devices. The Tripp Lite SmartPro 230V Medical-Grade UPS delivers peace of mind with uninterrupted service during power disruptions.

With its line-interactive technology, this UPS maintains voltage regulation and output within safe operating ranges, making it ideal for critical medical equipment needs. You get six outlets for powering multiple devices, along with USB and DB9 ports for comprehensive communication options.

Model: SmartPro 230V
Capacity: 700VA / 450W
Output Voltage: 230V, 220V, 240V
Frequency: 50/60 Hz
Outlets: 6
Isolation: Full Isolation for safe use
Communication Ports: USB and DB9

Designed for medical applications, this UPS is built to support critical devices in healthcare settings where downtime is not an option.

Vendor: Tripp Lite

Type: Uninterruptible Power Supplies (UPSs)

Available stock: 17

★

Free Shipping over $2000

Estimated delivery: Jun 23 - Jun 27

Infomations

The SMX700HG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient care vicinities. The 700VA/450W capacity provides up to 36 minutes of runtime for a half load or 14.5 minutes for a full load, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout.

Built-in line-interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274V to normal 230V nominal output, without drawing battery power. The SMX700HG’s built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Cumulative leakage current of all connected equipment is less than 100 microamps.

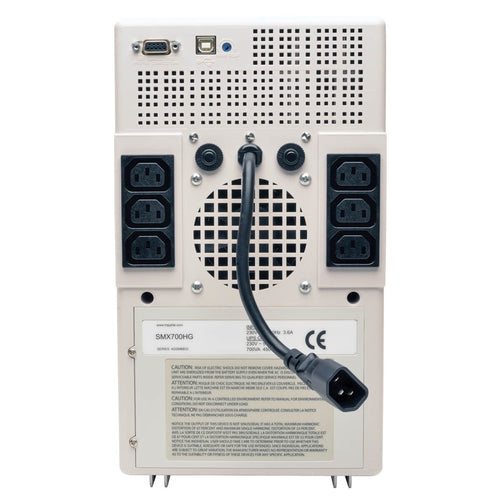

This UPS system features six IEC320 C13 hospital-grade outlets and has a hospital-grade IEC320 C14 plug on a 15-centimeter (six-inch) dongle. All six outlets provide both backup protection and surge protection, rated to 340 joules.

The SMX700HG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with free downloadable PowerAlert® software for safe, unattended system shutdown in the event of a prolonged power failure.

This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMX700HG in this type of application will void the battery warranty.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Share:

Features
Output power capacity	0.7 kVA
Output power	450 W
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Input frequency	50/60 Hz
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Maximum current	3.6 A
Surge energy rating	340 J
Response time	5 ms
EMI/RFI noise filtering	Yes
Audible alarm(s)	Yes
Ports & interfaces
AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	6 AC outlet(s)
USB 2.0 ports quantity	1
RS-232 ports	1
Battery
Typical backup time at full load	14.5 min
Typical backup time at half load	36 min
Battery recharge time	3.6 h
Hot-swap battery	Yes
Cold start	Yes
Design
Form factor	Tower
Housing material	Polyvinyl chloride (PVC)
Cable length	1.83 m
Cooling type	Active
Product colour	White
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Certificates
Compliance certificates	RoHS
Certification	CE/IEC 60601-1, FCC B
Weight & dimensions
Width	190.5 mm
Depth	229 mm
Height	325 mm
Weight	19.1 kg
Packaging data
Package width	309.9 mm
Package depth	339.9 mm
Package height	469.9 mm
Package weight	20.6 kg
Logistics data
Harmonized System (HS) code	85078000
Products per master (outer) case	1 pc(s)
Country of origin	China
Other features
Nominal input voltage	230 V
Package dimensions (WxDxH)	310 x 340 x 470 mm
