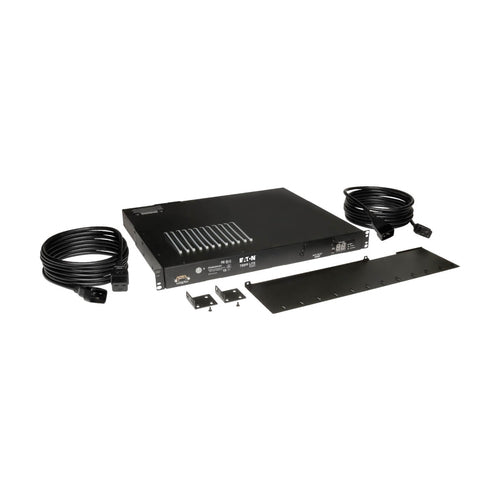

Tripp Lite PDUMH20HVAT power distribution unit (PDU)

Infomations

200-240V 20A Automatic Transfer Switch (ATS) / Local Metered rack PDU (rPDU) (Agency de-rated to 16A continuous)
Provides a redundant power option for critical networking equipment with a single input power cord
2 digit display reports output power consumption in amps
1U horizontal rack-mount form factor; 14.8 in. / 37.6 cm depth
10 outlets (8 C13, 2 C19)
Set of Plug-lock output power cable retention sleeves prevent accidental disconnection of connected devices
Set of two C20 inlets support connection to separate PRIMARY and SECONDARY power sources

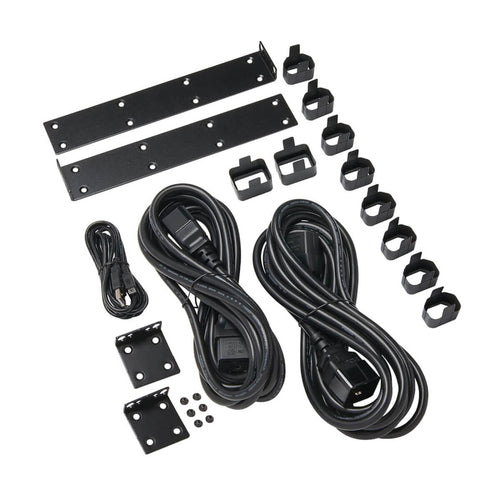

Two 12-ft. / 3.6m C19 to C20 power cables included
ATS circuits normally maintain output sourced from the primary input cable; As primary input power fails or becomes unstable, the ATS will switch to maintain output sourced from the secondary input cable until power on the primary input is restored and stable
ATS configurations enable fault-tolerant, hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system (in a two-UPS environment, the primary input cable must be supported by an online UPS with zero transfer time similar to SmartOnline series)
Advanced ATS configurations utilizing separate mains circuits, backup generators and even separate out of phase utility power grid feeds are fully supported
On-board ATS processor constantly evaluates power quality on both inputs to prevent transfer to the secondary source when unavailable or of lower quality than the primary source
Super-fast switchover between primary and secondary power sources occurs in 2-5 milliseconds
Built-in card slot supports optional SNMPWEBCARD or WEBCARDLX for permanent upgrade to a switched & monitored PDU system
Outlets are factory programmed for sequential turn-on at 250 millisecond intervals when the PDU is first energized to prevent inrush-related equipment interaction on startup
Front panel LEDs confirm power availability on both input lines
Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Power Distribution Unit Tripp Lite 3.8kW PDU 1U Auto Transfer Switch 8 C13 2 C19 Outputs

Name: Power Distribution Unit Tripp Lite 3.8kW PDU 1U Auto Transfer Switch 8 C13 2 C19 Outputs
Brand: Tripp Lite
SKU: PDUMH20HVAT
Price: 482.29 USD
Availability: InStock

Power Distribution Unit Tripp Lite 3.8kW PDU 1U Auto Transfer Switch 8 C13 2 C19 Outputs

1 people are viewing this product

$482.29 USD

$482.29 USD ~~$631.80 USD~~

Shipping calculated at checkout.

Safeguard your critical equipment with the Tripp Lite PDUMH20HVAT power distribution unit, designed to ensure uninterrupted power supply for your devices. This reliable PDU is ideal for data centers and IT infrastructure, providing a robust solution for power management.

With a maximum output of 3.8kW, this single-phase unit features automatic transfer switching for seamless operation during power fluctuations. It includes two 200-240V C20 inlets and offers multiple outputs, making it a versatile option for various applications.

Capacity: 3.8kW Single-Phase
C20 Inlets: 2
C13 Outlets: 8
C19 Outlets: 2
Design: 1U Horizontal, Metal
Color: Black
Metered: Yes
Compliance: TAA

Vendor: Tripp Lite

Type: Power Distribution Units (PDUs)

Available stock: 5
🚨 Hot Demand! Only 5 left — grab yours before it's gone! 💥

Free Shipping over $2000

Estimated delivery: Jun 23 - Jun 27

Infomations

200-240V 20A Automatic Transfer Switch (ATS) / Local Metered rack PDU (rPDU) (Agency de-rated to 16A continuous)
Provides a redundant power option for critical networking equipment with a single input power cord
2 digit display reports output power consumption in amps
1U horizontal rack-mount form factor; 14.8 in. / 37.6 cm depth
10 outlets (8 C13, 2 C19)
Set of Plug-lock output power cable retention sleeves prevent accidental disconnection of connected devices
Set of two C20 inlets support connection to separate PRIMARY and SECONDARY power sources
Two 12-ft. / 3.6m C19 to C20 power cables included
ATS circuits normally maintain output sourced from the primary input cable; As primary input power fails or becomes unstable, the ATS will switch to maintain output sourced from the secondary input cable until power on the primary input is restored and stable
ATS configurations enable fault-tolerant, hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system (in a two-UPS environment, the primary input cable must be supported by an online UPS with zero transfer time similar to SmartOnline series)
Advanced ATS configurations utilizing separate mains circuits, backup generators and even separate out of phase utility power grid feeds are fully supported
On-board ATS processor constantly evaluates power quality on both inputs to prevent transfer to the secondary source when unavailable or of lower quality than the primary source
Super-fast switchover between primary and secondary power sources occurs in 2-5 milliseconds
Built-in card slot supports optional SNMPWEBCARD or WEBCARDLX for permanent upgrade to a switched & monitored PDU system
Outlets are factory programmed for sequential turn-on at 250 millisecond intervals when the PDU is first energized to prevent inrush-related equipment interaction on startup
Front panel LEDs confirm power availability on both input lines
Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Share:

Design
PDU types	Metered
Rack capacity	1U
Mounting	Horizontal
Housing material	Metal
Product colour	Black
Ports & interfaces
AC outlets quantity	10 AC outlet(s)
Power plug	C20 coupler
AC outlet types	C13 coupler, C19 coupler
Features
LED indicators	Yes
Cable length	3.6 m
Power
Nominal input voltage	200-240 V
AC input frequency	50 - 60 Hz
Maximum current	20 A
Nominal output voltage	200-240 V
Certificates
Compliance certificates	RoHS
Certification	UL 60950 (USA, Canada), CE (Europe), Class A (Emissions), NOM (Mexico)
Operational conditions
Storage temperature (T-T)	-15 - 50 °C
Operating altitude	0 - 3000 m
Weight & dimensions
Width	439 mm
Depth	376 mm
Height	44 mm
Weight	4.69 kg
Packaging data
Package weight	8.07 kg
Package width	528.3 mm
Package depth	589.3 mm
Package height	137.2 mm
Logistics data
Country of origin	Taiwan
Products per master (outer) case	1 pc(s)
