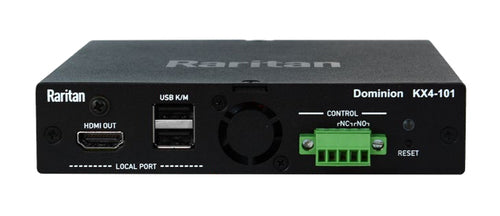

The Dominion® KX IV-101 (DKX4-101), Raritan’s highest performing KVM-over-IP switch, provides a new level of Ultra HD 4K performance for remote access and management. More powerful and flexible than any other KVM-over-IP solution, it supports higher video resolutions, faster frame rates, higher video quality, and faster virtual media.

The KX IV-101 supports unblocked, Java-free, BIOS-level remote access of a single server, PC or workstation over LAN, WAN or even the Internet. A native HDMI device, the KX IV-101 has available cables/adapters for VGA, DVI, Mini DisplayPort, and USB-C. It provides users the most flexibility with access remote computers via User Station, laptop, PC or smartphone. The KX IV-101 supports many of the popular Dominion features such as virtual media, absolute mouse synchronization, LDAP/Radius/AD authentication, AES encryption, support for up to 8 simultaneous sessions, and much, much more.

Integration with KX IV User Station
For the highest performance for broadcast, control rooms, and studios, a new Dominion KX IV User Station will be available.

Integration with CommandCenter
With CommandCenter centralized management, customers can access hundreds or even thousands of computer devices spread over multiple locations. The KX IV-101 can be used standalone, with Dominion Users Stations and/or integrated with CommandCenter.

Ultra High Performance 4K and 1080p
The Dominion KX IV-101 supports access to servers with 4K video resolution (3840x2160), up to 30 frames per second with the new KX IV User Station. It also supports HD resolutions up to 1920x1080 and 1920x1200 at up to 60 frames per second with high quality 4:4:4 color for high quality images and video.

Flexible, Multi-Purpose, IP-Based
The KX IV-101 has user-configurable bandwidth to operate over LAN, WAN, and even the Internet for emergency out-of-hours IT support. As a flexible IP solution, it is accessible via User Station, Laptop, PC, and SmartPhone supporting users, managers, engineers, and IT. Java-free KVM access is available on Windows, Linux and Mac.

Dominion Features and Compatibility
The KX IV-101 supports many of the popular Dominion features such as: BIOS-level access, virtual media, absolute mouse synchronization, LDAP/Radius/AD authentication, AES encryption, and support for up to 8 simultaneous sessions. Utilize the KX IV-101 with the other Dominion products, KX III or IV User Stations. Native support for HDMI, with optional adapters for VGA, DVI, Mini DisplayPort and USB-C.

Integrated KVM Solution
The KX IV-101 scales with Raritan’s CommandCenter management system, allowing multiple users to access multiple KX IV-101 and KX III switches, in single or multiple locations, across the country or even the world. CommandCenter integrates with the KX User Stations, Dominion products, as well as popular IT solutions such as VNC, RDP and SSH.
