Thunderbolt 4 Docking Station Kensington SD5800T 98W PD 4K Quad Video HDMI DP

Infomations

Ideal for professionals and creatives who want more screens for visual productivity, more speed to work with large files, support for multiple 4K monitors, and more ports so they can connect to accessories without using adapters, the SD5800T Thunderbolt™ 4 and USB4® Quad Video Docking Station is a high-speed dock that provides everything you need to unlock the full potential of your premium laptop. As one of the first Thunderbolt™ 4 docks capable of supporting Quad 4K displays, the SD5800T Thunderbolt™ 4 and USB4® Quad Video Docking Station provides a powerful plug-and-play connection—including support for four 4K monitors for the latest Windows laptops and two 6K monitors for the latest MacBook models, 40Gbps data transfer speeds, up to 100W charging (98W certified), and a 16-in-1 design. The SD5800T Thunderbolt™ 4 and USB4® Quad Video Docking Station delivers more screens, more speed, and more power—so you can be more productive and focused.

Universal Compatibility
Offers a quick and powerful plug-and-play solution for Thunderbolt™ 4, Thunderbolt™ 3, USB4®, and USB-C® devices running Windows (10 or later) or macOS (11 or later).

Thunderbolt™ 4 Technology
Supports next-level Thunderbolt™ experiences. Transfers 40Gbps of data, video, and audio. Blocks peripheral devices from unauthorized access to your system memory using Intel VT-d DMA protection.

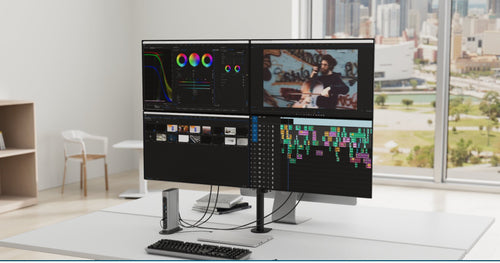

Quad 4K or Single 8K Support

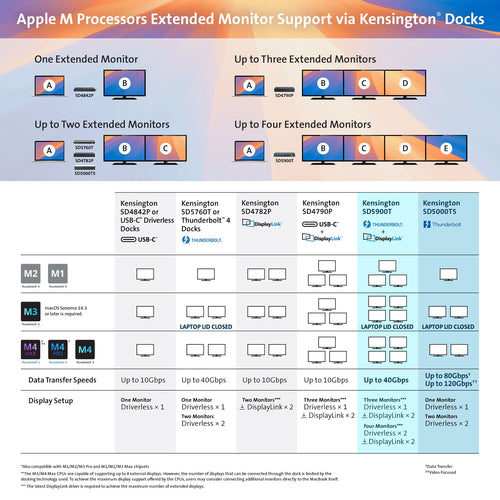

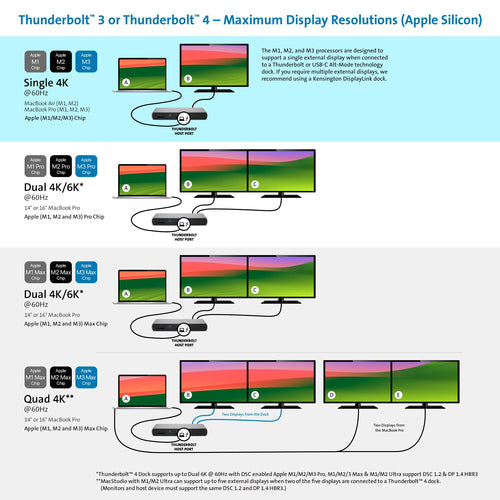

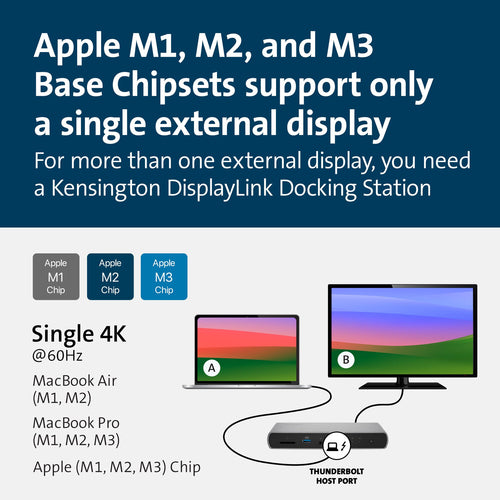

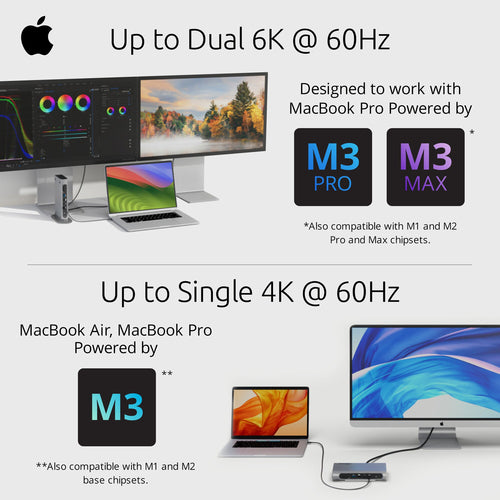

Supports Quad 4K @ 60Hz or Single 8K @ 60Hz for Windows via an HDMI® port, or through two HDMI® ports and two DP ports. Supports Dual 6K @ 60Hz for MacBook models with M4/M5 Base chipsets, M1/M2/M3/M4 Pro chipsets, and M1/M2/M3/M4 Max chipsets, and Single 4K @ 60Hz for MacBook models with M1/M2/M3 base chipsets. Additional monitors bypass the dock and connect directly to MacBook models with M1/M2/M3/M4 Max chipsets.

Up to 100W Charging (98W certified)
Ideal for devices that require higher power, the SD5800T delivers up to 100W charging (98W certified) to the host and connected accessories.

Productive 16-in-1 Design

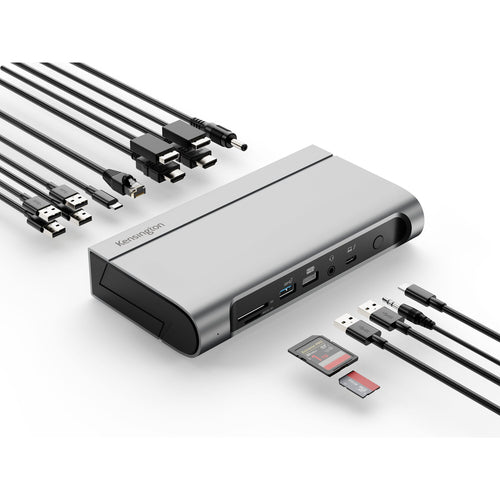

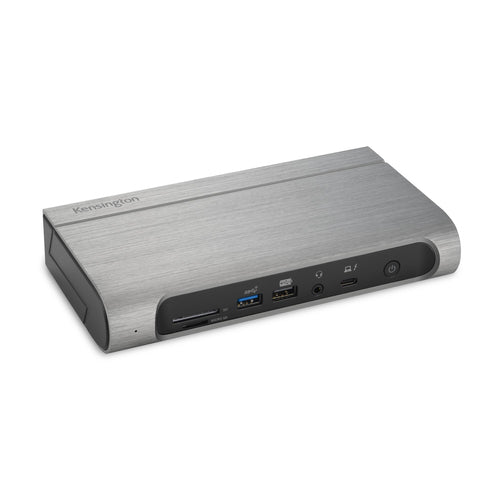

Ports include 2 x HDMI®, 2 x DP, 1 x Thunderbolt™ host, 1 x USB-C® 3.2 Gen2 10Gbps, 3 x USB-A 3.2 Gen2 10Gbps, 2 x USB-A 3.2 Gen1 5Gbps, 1 x USB-A 2.0 480Mbps, 1 x combo audio jack, 2 x SD or Micro Card readers, and 1 x 2.5Gbps Ethernet.

Built-in SD and Micro SD Card Readers
Perfect for graphic designers, video editors, and animators requiring fast and efficient data transfer speeds, the SD5800T transfers files at ultra-fast speeds via built in UHS-II SD and Micro SD card readers.

Zero-Footprint Mounting Option and Security Cable Lock Slots
Maximize desktop space by mounting your docking station out of the way. Mounting bracket sold separately (K34050WW). Protect your investment with a Kensington cable lock (K65020WW or K60603WW), sold separately.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Thunderbolt 4 Docking Station Kensington SD5800T 98W PD 4K Quad Video HDMI DP

Name: Thunderbolt 4 Docking Station Kensington SD5800T 98W PD 4K Quad Video HDMI DP
Brand: Kensington
SKU: K32856NA
Price: 289.48 USD
Availability: InStock

1 people are viewing this product

$289.48 USD

$289.48 USD ~~$318.43 USD~~

Shipping calculated at checkout.

Upgrade your connectivity with the Kensington SD5800T Thunderbolt 4 Docking Station. Designed for both Windows and macOS, this versatile dock allows you to easily connect multiple displays and devices through a single Thunderbolt 4 cable.

Experience seamless video output with support for quad video up to 4K resolution. Its powerful 98W power delivery ensures your devices stay charged, while multiple USB ports facilitate high-speed data transfers.

Connectivity: Thunderbolt 4 and USB4
Power Delivery: 98W
Video Output: Quad 4K via DP/HDMI
Ethernet: Supports up to 2500 Mbit/s
Compatibility: Windows and macOS
Color: Grey

Vendor: Kensington

Type: Laptop Docks & Port Replicators

Available stock: 269

★

Free Shipping over $2000

Estimated delivery: Jun 23 - Jun 27

Infomations

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Ports & interfaces
Connectivity technology	Wired
Host interface	Thunderbolt 4
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	98 W
HDMI ports quantity	2
HDMI version	2.1
DisplayPorts quantity	2
DisplayPort version	1.4
Combo headphone/mic port	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
DC-in jack	Yes
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Performance
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
HD type	8K Ultra HD
Maximum digital resolution	7680 x 4320 pixels
Number of displays supported	4
Maximum refresh rate	240 Hz
Cable lock slot	Yes
Cable lock slot type	Kensington, Nano
Product colour	Grey
On/off switch	Yes
LED indicators	Link, Power
Plug and Play	Yes
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)
Country of origin	Thailand
Power
Power source type	DC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	2 A
Output voltage	20 V
Output current	8.5 A
Compatible power plug types	US
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	0 - 55%
Weight & dimensions
Width	195 mm
Depth	104 mm
Height	36 mm
Weight	610 g
Packaging data
Package width	254 mm
Package depth	156 mm
Package height	93 mm
Package weight	1.72 kg

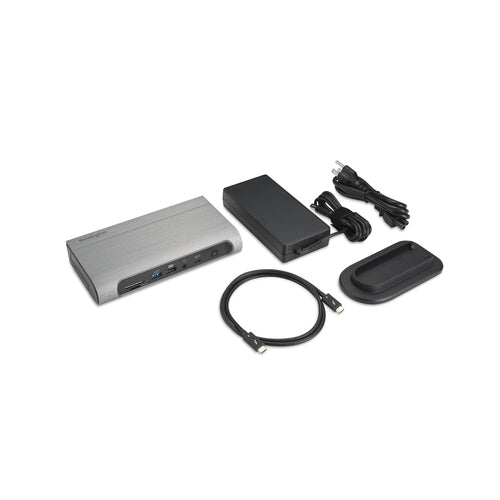

Packaging content
Warranty card	Yes
Cables included	AC, Thunderbolt
AC adapter included	Yes
Quick start guide	Yes
Stand included	Yes
Technical details
Compliance certificates	CB, CE, Federal Communications Commission (FCC), Industry Canada (IC), RCM, RoHS, VCCI
Logistics data
Products per master (outer) case	6 pc(s)
Other features
Chipset	Intel JHL8440 Thunderbolt 4
