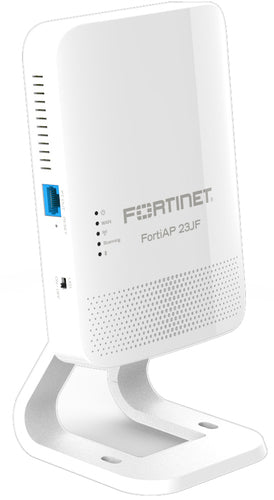

Wireless Access Point Fortinet FortiAP 23JF Dual-Band 1200Mbit/s EAP Support
Wireless Access Point Fortinet FortiAP 23JF Dual-Band 1200Mbit/s EAP Support
High-density wireless deployments in office environments require reliable access points that deliver consistent performance and enhanced security. The Fortinet FortiAP 23JF is engineered to meet these demands with robust connectivity and support for various EAP authentication methods, making it an ideal choice for businesses that prioritize secure Internet access.
This wireless access point provides dual-band frequencies, enabling efficient use of both 2.4 GHz and 5 GHz ranges for high-speed data transfer up to 1200 Mbit/s. With comprehensive EAP protocol support, it ensures secure connections for all devices, making it a critical component for modern network security.
- Dual-band support: 2.4 GHz and 5 GHz
- High-speed data transfer: Up to 1200 Mbit/s
- Supported EAP protocols: EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2
- Security standards: WPA, WPA2, WPA3
- Gigabit Ethernet connectivity: 10/100/1000 Mbit/s
Ideal for IT teams deploying secure wireless networks across office environments, campuses, and multi-floor business applications.
Available stock: 43
Couldn't load pickup availability
-
Estimated delivery: Jun 14 - Jun 18
Share this product
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Networking standards | IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.3bz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11v, IEEE 802.1af, IEEE 802.11ad, IEEE 802.11w, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.3at, IEEE 802.11g, IEEE 802.11h, IEEE 802.1Q, IEEE 802.3az, IEEE 802.11i, IEEE 802.1x |
| Channel bandwidth | 80 MHz |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Modulation | 64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK |
| Security | |
| Security algorithms | EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, WPA, WPA2, WPA3 |
| Number of SSID supported | 16 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| RS-232 interface | Yes |
| Power | |
| Power consumption (typical) | 17.5 W |
| Design | |
| Placement | Wall |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 3 |
| Antenna gain level (max) | 4 dBi |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, Taiwan |
| Weight & dimensions | |
| Width | 168 mm |
| Depth | 117 mm |
| Height | 28 mm |
| Weight | 450 g |
| Packaging data | |
| Package weight | 700 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
