Infomations

The HDMI over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 131ft to a 4K display using a single Cat6/6a Ethernet cable. This is an ideal solution where HDMI video and audio in conference rooms, classrooms, lecture halls, and many other installation needs are far beyond the length limitations of standard HDMI cabling.

This HDMI over Cat Extender is HDCP 2.2 compliant, making sure that the connection from the source is secure. Multi-channel audio formats are supported, including PCM 7.1, Dolby TrueHD and DTS-HD Master Audio. With bi-directional Power over Cable (PoC) support, one power adapter at either transmitter or receiver side can power both units, so no additional power adapter is required, allowing for greater flexibility in installations.

Note: Ensure a solid, reliable connection between the 4K HDMI Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.

Signal Specifications
- Video Resolution: Up to 4K resolution at 60Hz, 4:4:4
- Transmitter Input/Output Ports: 1 x HDMI IN; 1 x IR OUT; 1 x RJ45; 1 x DC 12V IN
- Receiver Input/Output Ports: 1 x HDMI OUT; 1 x IR IN; 1 x RJ45; 1 x DC 12V IN
- Audio Formats: Supports Multichannel audio up to PCM 7.1, Dolby TrueHD and DTS-HD Master Audio

Electrical Specification
- Power Supply: Bi-directional Power over Cable (PoC), one power adapter at either transmitter or receiver side can power both units
- Power Adapter: Input: 100-240VAC, 50-60Hz
- Power Adapter: Output: 12VDC, 1A

Physical Specifications
- Operating Temperature: 0°C to 45°C; 10-90% RH (Non-Condensing)
- Storage Temperature: -20°C to 70°C; 10-90% RH (Non-Condensing)

Physical Characteristics
- Transmitter Dimensions (LxWxH): 90x70x15.2mm
- Transmitter Dimensions with Mounting Brackets (LxWxH): 90x90x15.2mm
- Receiver Dimensions (LxWxH): 90x70x15.2mm
- Receiver Dimensions with Mounting Brackets (LxWxH): 90x90x15.2mm
- DC Jack: OD = 6.3mm, ID = 2.0mm; CU: Nickel Plating
- Power Adapter Cable Length: 1800±50mm
- QC Inspection: Bi-directional PoC Test, max length cable transmission, 1080p and 4K 60Hz 4:4:4 video/ image test on all ports, IR control function test and accessory functionality

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

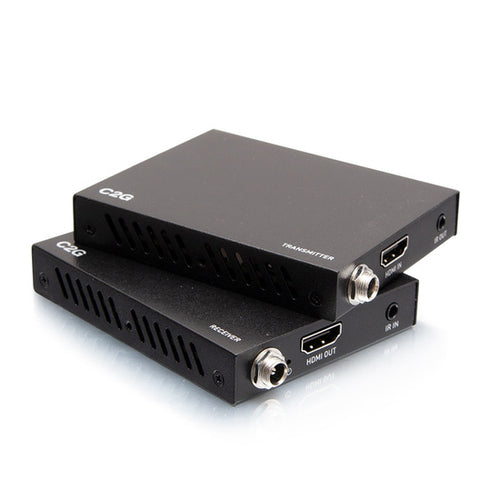

HDMI Extender C2G C2G60220 4K 60Hz 40m AV Transmitter Receiver Wired

Name: HDMI Extender C2G C2G60220 4K 60Hz 40m AV Transmitter Receiver Wired
Brand: C2G
SKU: C2G60220
Price: 144.80 USD
Availability: InStock

1 people are viewing this product

$144.80 USD

$144.80 USD ~~$194.03 USD~~

Shipping calculated at checkout.

Installation of multimedia systems across large spaces often requires reliable signal transmission. The C2G HDMI over Cat Extender is perfect for delivering 4K UHD video signals from a source to a display over distances up to 40 meters using standard Ethernet cabling.

This extender features both a transmitter and a receiver, ensuring you get high-resolution video output without degradation. With support for 4K 60Hz, this solution effectively meets the needs of high-performance AV setups in conference rooms, classrooms, or home theaters.

Resolution: 4K 60Hz (3840 x 2160 pixels)
Distance: Up to 40 meters
Type: AV transmitter and receiver
Connection type: Wired
Color: Black

Ideal for technical professionals deploying high-definition AV systems in environments where distance and signal integrity are critical.

Vendor: C2G

Type: AV Extenders

Available stock: 396

★

Free Shipping over $2000

Estimated delivery: Jun 14 - Jun 18

Infomations

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Features
Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6, Cat6a
Maximum transfer distance	40 m
Maximum refresh rate	60 Hz
Cable length	1.8 m
Product colour	Black
Ports & interfaces
Connectivity technology	Wired
HDMI in	1
Number of HDMI outputs	1
Remote (IR) input	1
Remote (IR) output	1
Power
Power source type	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output current	1 A
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	70 mm
Depth	90 mm
Height	15.2 mm
Packaging data
Quantity per pack	1 pc(s)
