Product description

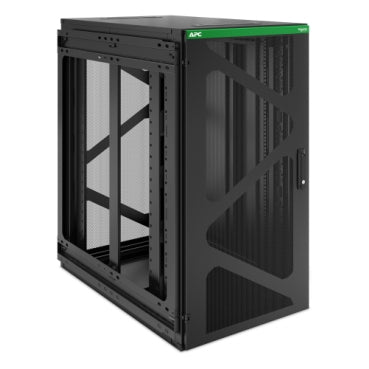

This wall rack designed for side mounting is suitable for all kinds of 19 inch IT/network equipment. With 24U/HE internal height and four adjustable rack mount styles, you can easily mount rack-mountable devices up to 835 mm deep. With its wall mounting bracket, it is easy to mount to the wall and the rack, itself 80 kg, offers an additional 158 kg load capacity. Because there is a lockable door at the front and back, the installed equipment is safe but still easily accessible. The side panel that can be completely removed from the inside increases access if desired.

Easy installation
This APC patch cabinet is delivered assembled, making this rack easy and quick to install.

Dimensions
This rack can be mounted to the wall as a patch, edge or network cabinet using a wall mounting bracket and thus protrudes only 664 mm together (bracket + rack). The rack is 1156 mm high and 1037 mm deep. Maximum mounting depth equipment (835mm)

Cable and accessory integration
The bottom and roof of this patch cabinet are pre-treated, see photo top, so that they can be easily adjusted and made suitable as a cable outlet. Two accessory channels are also included, which offer tool-free mounting options for APC PDUs (Power Distribution Units) and cable management accessories.

Multiple sizes
The NetShelter WX 800 mm deep wall enclosures are available in three heights: 12, 18, 24U and can all handle a load of 158kg.

Rackmount styles
The vertical rackmount styles are adjustable in steps of 6mm.

Security

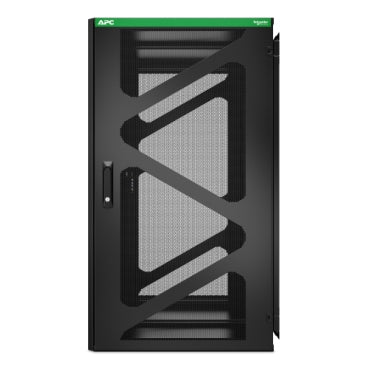

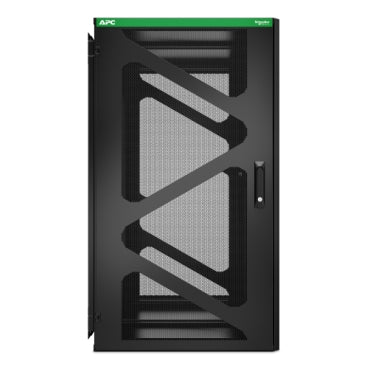

Mounted network equipment in the rack is safe, because the perforated doors are equipped with a lock.

Warranty
The standard factory warranty is five years.

The NetShelter UPS Depth Wall-Mount Enclosure offers reliability, durability, and ease-of-deployment for single-phase equipment mounted on the wall Available in 12U, 18U, and 24U sizes, NetShelter UPS Depth Wall-Mount Enclosure is designed with an 800mm depth to accommodate a wide range of single-phase applications Bracket-style mounting ensures quick and easy deployment Low-profile side-mount configuration ensures the enclosure extends less than 25 inches from the wall, a perfect solution for locations with limited space Compatible with APC's NetBotz security solutions for remote access, video surveillance, and environmental monitoring (sold separately) Maximum load capacity of 350lb ensures durability for heavy-duty equipment Both top and bottom feature cable access openings to route, secure, and organize cables Accessory channels included to provide toolless mounting capabilities for rack PDU's and cable management accessories Ideal for diverse segments such as retail, healthcare, distribution centers, and education, providing an efficient solution for deploying IT equipment for edge computing applications 19 rack width, ships fully-assembled, ventilated, backed by 5-year APC warranty
