APC Power Distribution Unit (PDU) Metered 0U Horizontal/Vertical 30 AC Outlets LCD Black
APC Power Distribution Unit (PDU) Metered 0U Horizontal/Vertical 30 AC Outlets LCD Black
Manage your power distribution with the APC AP8867 PDU, designed for both horizontal and vertical mounting. With 30 AC outlets, this metered unit provides flexibility and visibility for your electrical needs.
The versatile design of the APC AP8867 allows you to efficiently organize and monitor your power usage. Ideal for data centers and server rooms, this PDU features a clear LCD display to keep track of your power consumption and ensure reliability.
- Type: Metered
- Form Factor: 0U
- Mounting: Horizontal/Vertical
- Color: Black
- Display: LCD
- Number of AC Outlets: 30
Available stock: 6
Couldn't load pickup availability
-
Estimated delivery: May 31 - Jun 04
Share this product
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Design | |
|---|---|
| PDU types | Metered |
| Rack capacity | 0U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Display | LCD |
| Ports & interfaces | |
| AC outlets quantity | 30 AC outlet(s) |
| AC outlet types | C13 coupler |

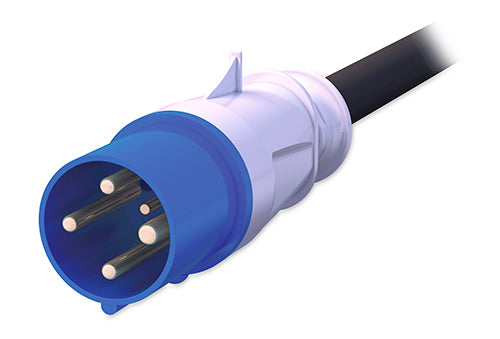

| Input connection type | IEC 309 60A 3P+PE |
| Features | |
| Cable length | 1.83 m |
| Power | |
| Nominal input voltage | 208 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 60 A |
| Nominal output voltage | 208 V |
| Output voltage | 208 V |
| Load capacity | 17300 VA |
| Maximum input current per phase | 48 A |
| Maximum total current draw per phase | 48 A |
| Power protection features | Overload |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | cUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC-15 A, UL, VCCI A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Width | 56 mm |
| Depth | 51 mm |
| Height | 1829 mm |
| Weight | 10.2 kg |
| Packaging data | |
| Package weight | 14.1 kg |
| Package width | 221 mm |
| Package depth | 112 mm |
| Package height | 2149 mm |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 59943.98 |
