StarTech.com HSB3SATSASBA disk array

StarTech.com HSB3SATSASBA disk array

StarTech.com HSB3SATSASBA disk array

StarTech.com HSB3SATSASBA disk array

StarTech.com HSB3SATSASBA disk array

StarTech.com HSB3SATSASBA disk array

Infomations

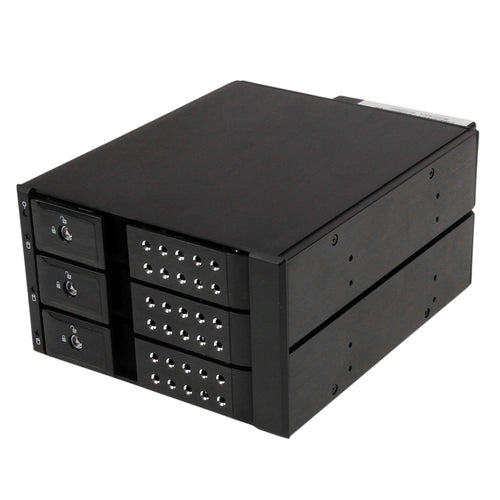

Easily connect and hot swap up to three 3.5” SATA/SAS hard drives from two 5.25” bays

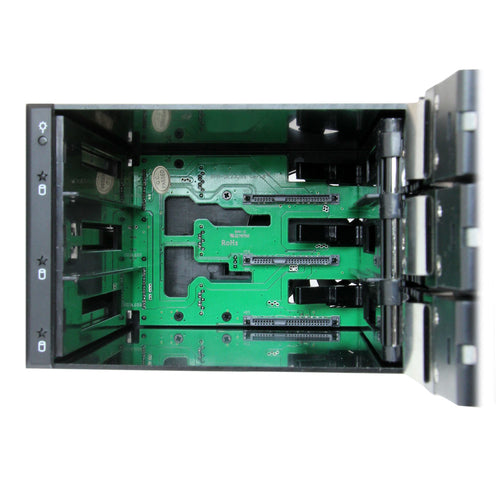

The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5\" drives from the front of your computer, by turning two 5.25\" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).

For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.

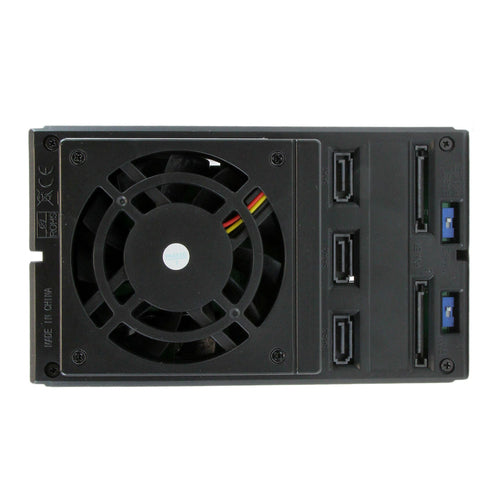

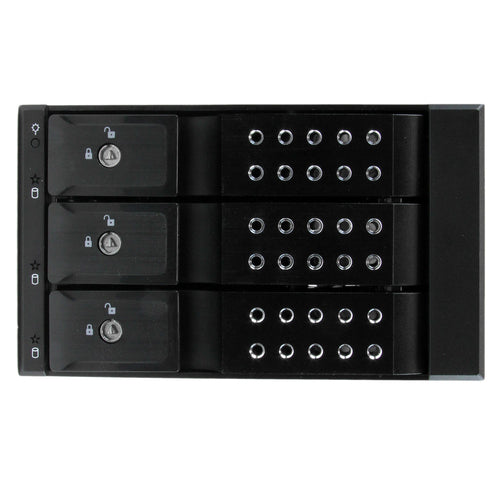

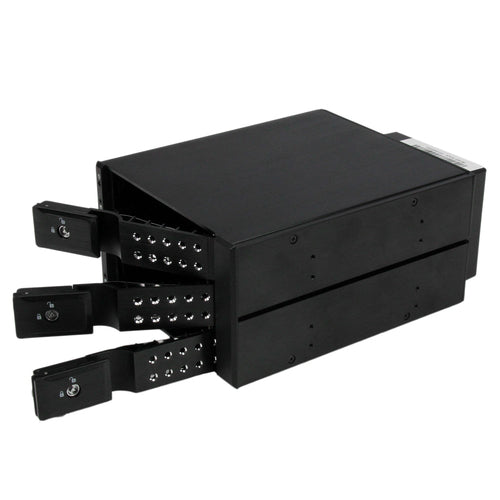

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.

The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

StarTech.com HSB3SATSASBA disk array

StarTech.com HSB3SATSASBA disk array

1 people are viewing this product

$93.22 USD

$93.22 USD ~~$105.34 USD~~

StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD, 0 TB, Serial ATA, Serial ATA II, Serial ATA III, 3.5", 1.2 kg, Black

Vendor: StarTech.com

Type: Disk Arrays

SKU: HSB3SATSASBA

Available stock: 6
🚨 Hot Demand! Only 6 left — grab yours before it's gone! 💥

Free Shipping over $1000

Limited time offer

Get $20 off when you spend $1,000 or more! Learn more

Estimated delivery: Dec 11 - Dec 15

Infomations

Easily connect and hot swap up to three 3.5” SATA/SAS hard drives from two 5.25” bays

The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5\" drives from the front of your computer, by turning two 5.25\" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).

For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.

The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Share:

Storage
Storage drives installed	No
Installed storage drive type	No
Total installed storage capacity	0 TB
Supported storage drive types	HDD
Number of storage drives supported	3
Maximum supported storage capacity	12 TB
Storage drive interface	Serial ATA, Serial ATA II, Serial ATA III
Storage drive size	3.5"
Data transfer rate	6 Gbit/s
Hot-swap drive bays	Yes
Ports & interfaces
Host ports	3
SATA host port	Yes
Number of SATA power connectors	2
SATA power connector type	SATA 15-pin
Design
Internal	No
Product colour	Black
LED indicators	Activity, Power
Number of fans	1 fan(s)
Performance
Backplanes support	Yes
Weight & dimensions
Width	145 mm
Depth	194.1 mm
Height	110 mm
Weight	1.2 kg
Packaging data
Package width	179 mm
Package depth	253 mm
Package height	123 mm
Package weight	1.2 kg
Packaging content

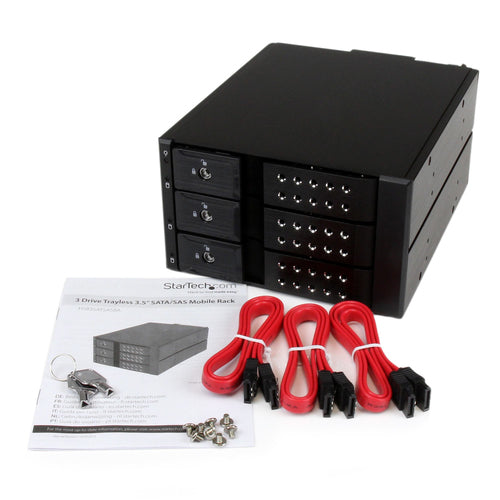

Cables included	SATA
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 85%
Storage temperature (T-T)	-20 - 60 °C
Other features
Compliance certificates	RoHS
Logistics data
Products per master (outer) case	8 pc(s)
Master (outer) case length	523 mm
Master (outer) case width	386 mm
Master (outer) case height	290 mm
Harmonized System (HS) code	84717020
