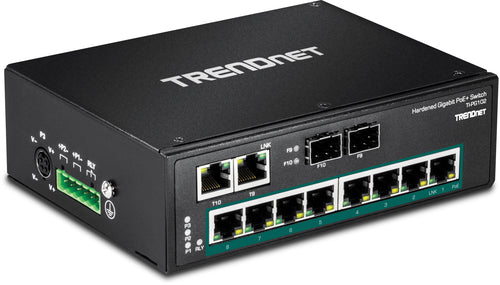

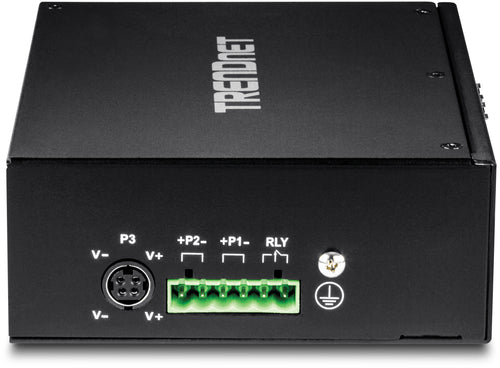

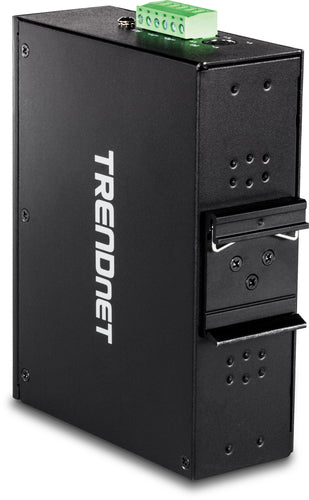

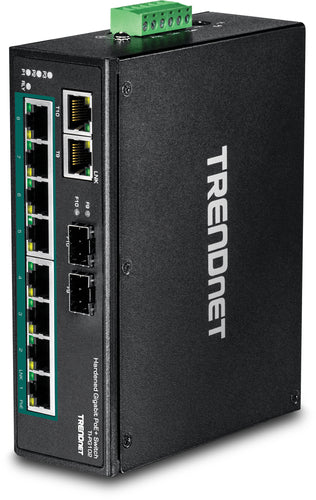

Trendnet TI-PG102 network switch
Trendnet TI-PG102 network switch
Oops! Looks like you just missed it!
-
Estimated delivery: Oct 14 - Oct 18
Share this product
Couldn't load pickup availability
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Data transmission | |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.8 Mpps |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
| DIN rail mounting | Yes |
| Performance | |
| Buffer size | 2048 KB |
| Mean time between failures (MTBF) | 510400 h |
| Power | |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 48 - 56 V |
| Input voltage | 48/56 V |
| Power consumption (max) | 5.67 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 240 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 155 mm |
| Depth | 120 mm |
| Height | 48 mm |
| Weight | 445 g |
| Packaging data | |

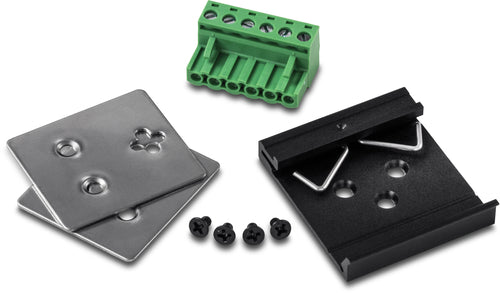

| Wall mounting kit | Yes |
| Terminal block included | Yes |
| Certificates | |
| Certification | CE FCC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
