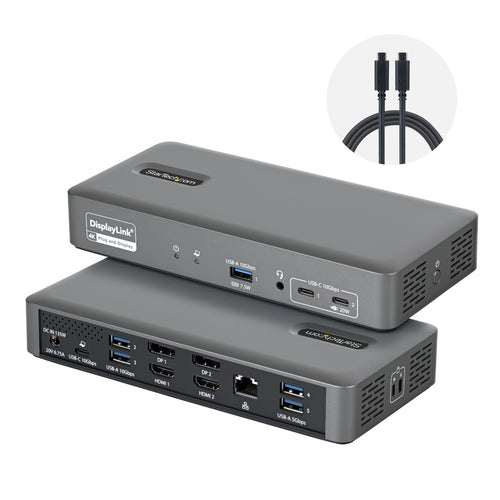

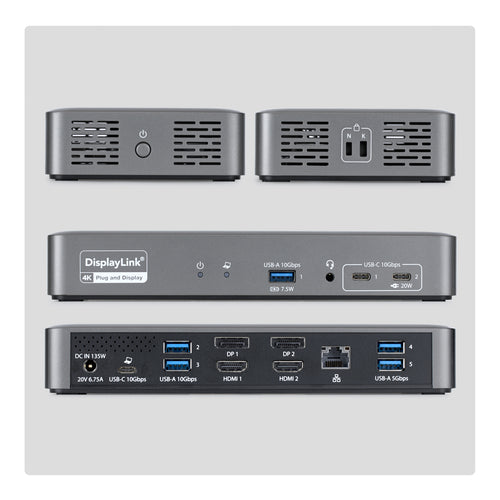

StarTech.com 194N-USBC-SMARTDOCK laptop dock/port replicator
StarTech.com 194N-USBC-SMARTDOCK laptop dock/port replicator
Oops! Looks like you just missed it!
-
Estimated delivery: Oct 15 - Oct 19
Share this product
Couldn't load pickup availability
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 96 W |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 2 |
| Cable lock slot | Yes |
| Cable lock slot type | Nano, Kensington |
| Product colour | Grey |
| On/off switch | Yes |
| LED indicators | Yes |
| UASP support | Yes |
| Housing material | Plastic |
| Mean time between failures (MTBF) | 10000 h |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 1.9 A |
| Output voltage | 20 V |
| Output current | 6.75 A |
| Power consumption (max) | 135 W |
| Compatible power plug types | US |
| Software | |
| Windows operating systems supported | Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 |
| Mac operating systems supported | Mac OS X 15.0 Sequoia, Mac OS X 14.0 Sonoma, Mac OS 26 Tahoe, Mac OS X 13.0 Ventura, Mac OS X 12.0 Monterey, Mac OS X 11.0 Big Sur, Mac OS X 11.1 Big Sur, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Linux operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width | 95 mm |
| Depth | 202 mm |
| Height | 32 mm |
| Weight | 360 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 140 mm |
| Package depth | 255 mm |
| Package height | 90 mm |
| Package weight | 1.1 kg |
| Packaging content | |
| Cables included | USB Type-C |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 287 mm |
| Master (outer) case length | 470 mm |
| Master (outer) case height | 270 mm |
| Other features | |
| Chipset | DisplayLink - DL-6950, VIA Labs - VL108, VIA Labs - VL822, VIA Labs - VL817, VIA Labs - VL122, Realtek - RTL8153B |
