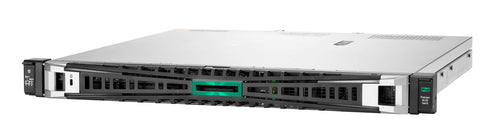

HPE ProLiant DL20 Gen11 server
HPE ProLiant DL20 Gen11 server
Oops! Looks like you just missed it!
-
Estimated delivery: Oct 14 - Oct 18
Share this product
Couldn't load pickup availability
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | 6325P |
| Processor frequency | 3.5 GHz |
| Processor boost frequency | 5.2 GHz |
| Performance cores | 4 |
| Processor cores | 4 |
| Processor cache | 12 MB |
| Number of processors installed | 1 |
| Processor cache type | L3 |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 4x DIMM |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Maximum internal memory | 128 GB |
| Storage | |
| Total storage capacity | 1.92 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 960 GB |
| SSD interface | SATA III |
| Supported SSD sizes | 2.5" |
| Number of SSDs supported | 4 |
| RAID support | Yes |
| Supported RAID controllers | Embedded Intel VROC SATA (formerly known as Intel RSTe) |
| Optical drive type | No |
| Graphics | |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| Network | |
| LAN controller | Broadcom BCM5719 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Expansion slots | Two maximum, for detailed descriptions refer to the QuickSpecs. |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Design | |
| Chassis type | Rack (1U) |
| Product colour | Black, Silver |
| Cooling type | Active |
| Rack mounting | Yes |
| Performance | |
| Management platform | HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE Compute Ops Management (optional subscription available) |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | No |
| Power | |
| Power supply type | 2x HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit |
| Redundant power supply (RPS) support | Yes |
| Power supply | 500 W |
| Number of main power supplies | 2 |
| Weight & dimensions | |
| Depth | 694 mm |
| Height | 586 mm |
| Weight | 10.9 kg |
| Other features | |
| Standard fans | 3x High Performance Fans |
| Dimensions (W x D x H) (imperial) | 268 x 693.9 x 586 mm (10.6 x 27.3 x 23.1") |
| Storage drive type | 2x HPE 960GB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
| Security features | Embedded Trusted Platform Module (TPM) 2.0 enabled by default. For servers shipping to China, the TPM is disabled. For full security features refer to the QuickSpecs. |
| Weight (imperial) | 10.9 kg (24 lbs) |
| Number of processors supported | 1 |
