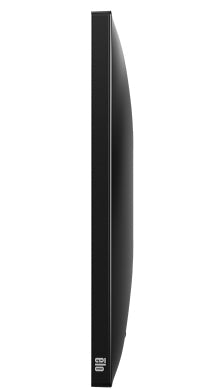

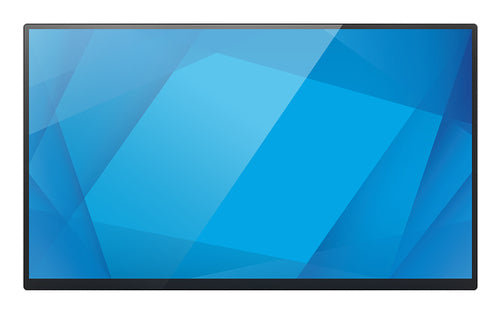

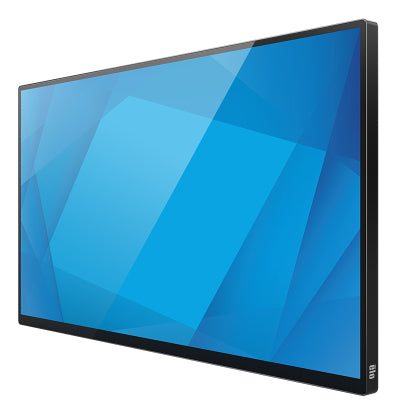

Elo Touch Solutions 2410L
Elo Touch Solutions 2410L
Oops! Looks like you just missed it!
-
Estimated delivery: Oct 15 - Oct 19
Share this product
Couldn't load pickup availability
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Display | |
|---|---|
| Panel type | TFT-LCD |
| Display diagonal | 60.5 cm (23.8") |
| Display technology | LED |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 250 cd/m² |
| HD type | Full HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 14 ms |
| Contrast ratio (typical) | 1300:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Active display area (W x H) | 527.04 x 296.46 mm |
| Maximum frame rate | 75 fps |
| Ports & interfaces | |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| USB ports quantity | 6 |
| USB version | 2.0 |
| USB connector type | Micro-USB, USB Type-A, USB Type-B |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| DC-in jack | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 2 W |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Anti-glare screen | Yes |
| Performance | |
| Purpose | Commercial |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 10 |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| International Protection (IP) code | IP54 |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
| Power consumption (typical) | 17 W |
| Power consumption (standby) | 1 W |
| Input voltage | 100 - 240 V |
| Power consumption (off) | 0.24 W |
| Power consumption (max) | 18.5 W |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 21 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Energy efficiency scale | A to G |
| Weight & dimensions | |
| Display width | 542.7 mm |
| Display depth | 319.4 mm |
| Display height | 42.8 mm |
| Display weight | 3.6 kg |
| Packaging data | |
| Package width | 690 mm |
| Package depth | 420 mm |
| Package height | 130 mm |
| Package weight | 5.64 kg |
| Packaging content | |
| Cables included | HDMI, USB, VGA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Certificates | |
| Certification | UL: AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012/IEC 60601-1 Ed. 3.1 cUL: (CAN/CSA-C22.2 NO. 60601-1:14 /IEC60601-1 Ed. 3.1 CB: IEC 60601-1:2005+A1:2012 (Ed. 3.1) CE: IEC 60601-1-2:2014 (Ed. 4) Risk Management: ISO 14971:2007 + EN ISO 14971:2012 Usability: IEC 60601-1-6:2010+A1:2013 (Ed. 3.1), IEC 62366:2007+A1:2014 (Ed. 1.1) |
| Features | |
| Wall mountable | Yes |
| Technical details | |
| Compliance certificates | BIS, BSMI, CB, CE, China Compulsory Certification (CCC), China RoHS, EAC, Federal Communications Commission (FCC), KCC, RCM, REACH, RoHS, UKCA, VCCI, WEEE, cUL |
