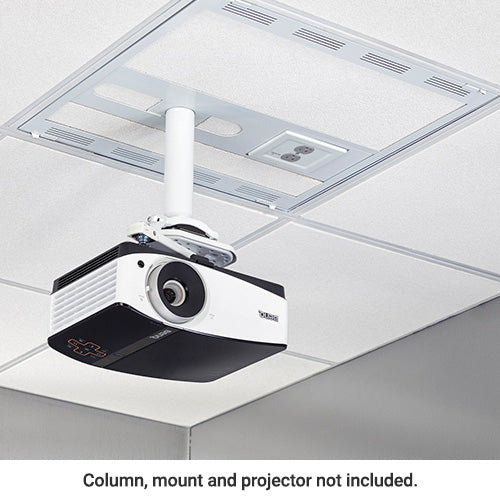

The CMS492CP2 conceals AV equipment above a 2' X 2' ceiling tile and supports a 1.5" NPT column drop for mounting projectors within the same tile grid providing a clean professional look for classrooms and conference rooms.

Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring the SurgeX® non-sacrificial multi-stage filtration and surge protection system. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.

Chief's powered solutions were co-developed with SurgeX, a brand of AMETEK® Electronic Systems Protection.

Features
- Optimal pipe flexibility within the tile helps with less reliance on image correction improving image quality
- Drop carriage door improves accessibility and serviceability providing full access to equipment
- Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time
- Inside the plenum box or facing the room
- Up to 2 single gang or 1 dual gang outlet
- 4 nested knockouts for 1-1/4", 1", & ½" diameter conduit
- Built in ventilation
- AV tray supports a variety of AV components
- Ships with 1 shelf, 2nd shelf sold separately see CMSUNV2
- 1 RU rack rail brackets sold separately, see CMS1RU
- Overall weight capacity 100 lbs (45 kg)
- 50 lbs (22 kg) for projector ceiling plate
- 25 lbs (11 kg) per shelf location
- Ships with speed connect installation hardware
- Lightweight construction, one man installation
- Plenum rated, UL approved in accordance to 2043
- TAA Compliant
- Surge and Filter Module
- Non-volatile spike protection with LED power indicator
- Non-sacrificial multi-stage technology
- Non-current limiting design passes full power on a regular circuit; redundant protection circuits
- Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
- Line filter reduces common and differential mode noise by up to 40 dB
- Rated for 125V~, 60Hz, 15 A
- 1875 watt maximum
- Ferrite toroid based EMI Filter
- Withstand rating of 240 VAC continuous without damage or loss of protection
