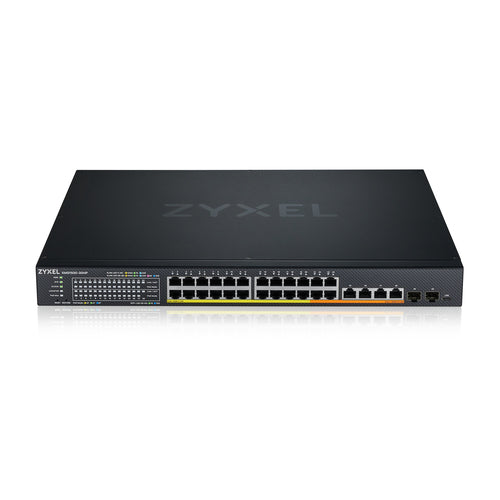

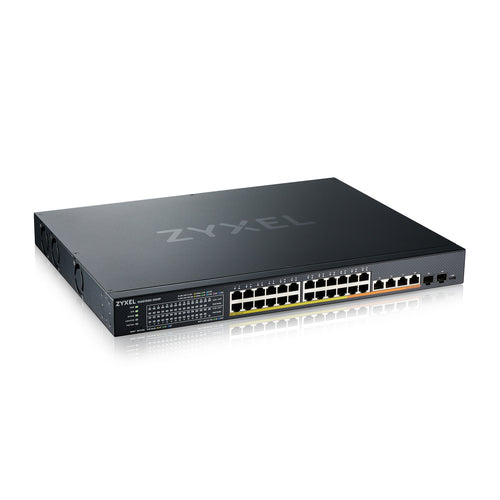

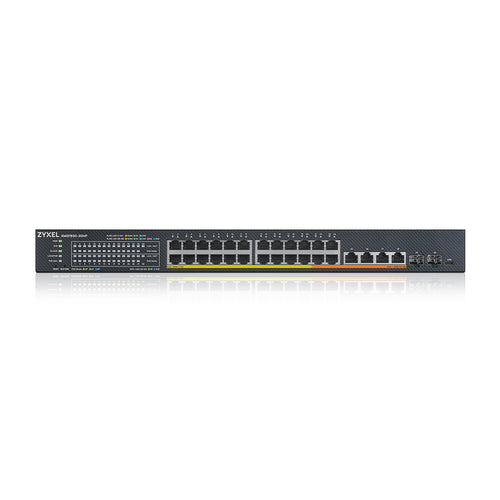

Zyxel XMG1930-30HP, Managed, L3, 2.5G Ethernet (100/1000/2500), Power over Ethernet (PoE), Rack mounting, 1U
Available stock: 7
-
Estimated delivery: Jul 08 - Jul 12
Share this product
Couldn't load pickup availability
Informations
Informations
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 10G Ethernet (copper) ports quantity | 4 |
| Installed SFP+ modules quantity | 2 |
| Fiber optic connector | SFP+ |
| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Policy-based routing | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,10000 Mbit/s |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Data transmission | |
| Switching capacity | 240 Gbit/s |
| Forwarding rate | 178.5 Mpps |
| MAC address table | 16000 entries |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Security | |
| DHCP features | DHCP client, DHCPv6 relay |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Yes |
| Performance | |
| Mean time between failures (MTBF) | 587922.31 h |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 864.1 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 28 |
| Power over Ethernet plus (PoE+) ports quantity | 20 |
| Total Power over Ethernet (PoE) budget | 700 W |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 864.1 BTU/h |
| Weight & dimensions | |
| Width | 441 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Weight | 4.85 kg |
| Packaging content | |
| Cables included | AC |
| Rack mount kit | Yes |
