Informations

5-port GbE Unmanaged PoE Switch

Along with the complete commercial product portfolio that offers customers with total network solutions, Zyxel introduces the new RGS100-5P PoE switch with ruggedized design concepts to meet stringent outdoor or harsh network deployment scenarios. The wide operating temperature range ensures reliable performance in adverse environments and expands RGS100-5P’s network availability in a wide variety of field applications.

Benefits

Rugged and reliable design for harsh environments

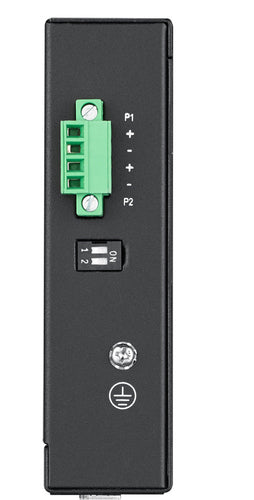

Designed with fanless and IP30 standard metal mechanism, the Zyxel RGS100-5P is able to to deliver excellent thermal controls and withstand dusty environments and can be installed on either a DIN rail or wall mount for efficient use of cabinet space. In addition, wide-ranging operating temperature tolerance allows RGS100-5P to be deployed across a spectrum of harsh environments. Equipped with dual DC power inputs, the RGS100-5P is capable of highavailability operation and resilience under the most demanding conditions. When switching is applied normally in outdoor settings, ESD (electrostatic discharge) and DC surge protection prevent the loss of business revenue and productivity due to damage or fatigue caused by power disturbances.

Trouble-free installation and easy extendibility

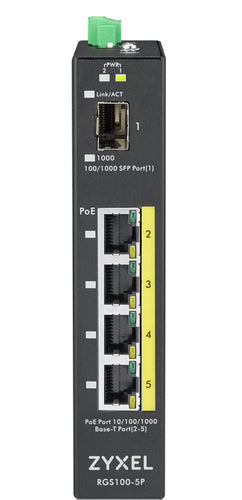

This rugged unmanaged PoE switch comes with four (4) 10/100/1000 Base-T copper PoE ports and one (1) 100/1000-Base-X SFP fiber interface. The switch also supports the 802.3at PoE plus standard, with each PoE port providing up to 30W of power to efficiently accommodate the most power-hungry devices. The fiber uplink can extend the network to long-distance nodes up to 40 km (43,744 yards) away for added flexibility.

Plug-and-Play deployments
The Zyxel RGS100-5P is able to negotiate the optimal data speed and activate duplex mode automatically with N-Way feature. It can also detect the type of connection to any Ethernet device with support for auto-MDI/MDI-X. Broadcast storm protection can easily be activated via DIP switch. Plug-and-play makes deploying the RGS100-5P hassle-free for any application or scenario.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Zyxel RGS100-5P

Name: Zyxel RGS100-5P
Brand: Zyxel
SKU: RGS100-5P-ZZ0101F
Price: 307.90 GBP
Availability: InStock

Zyxel RGS100-5P

1 people are viewing this product

£307.90 GBP

£307.90 GBP ~~£366.40 GBP~~

Shipping calculated at checkout.

Zyxel RGS100-5P, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, Wall mountable

Vendor: Zyxel

Type: Network Switches

Available stock: 1
🚨 Hot Demand! Only 1 left — grab yours before it's gone! 💥

Free Shipping over £2000

Estimated delivery: Jul 11 - Jul 15

Informations

5-port GbE Unmanaged PoE Switch

Along with the complete commercial product portfolio that offers customers with total network solutions, Zyxel introduces the new RGS100-5P PoE switch with ruggedized design concepts to meet stringent outdoor or harsh network deployment scenarios. The wide operating temperature range ensures reliable performance in adverse environments and expands RGS100-5P’s network availability in a wide variety of field applications.

Benefits

Rugged and reliable design for harsh environments
Designed with fanless and IP30 standard metal mechanism, the Zyxel RGS100-5P is able to to deliver excellent thermal controls and withstand dusty environments and can be installed on either a DIN rail or wall mount for efficient use of cabinet space. In addition, wide-ranging operating temperature tolerance allows RGS100-5P to be deployed across a spectrum of harsh environments. Equipped with dual DC power inputs, the RGS100-5P is capable of highavailability operation and resilience under the most demanding conditions. When switching is applied normally in outdoor settings, ESD (electrostatic discharge) and DC surge protection prevent the loss of business revenue and productivity due to damage or fatigue caused by power disturbances.

Trouble-free installation and easy extendibility
This rugged unmanaged PoE switch comes with four (4) 10/100/1000 Base-T copper PoE ports and one (1) 100/1000-Base-X SFP fiber interface. The switch also supports the 802.3at PoE plus standard, with each PoE port providing up to 30W of power to efficiently accommodate the most power-hungry devices. The fiber uplink can extend the network to long-distance nodes up to 40 km (43,744 yards) away for added flexibility.

Plug-and-Play deployments
The Zyxel RGS100-5P is able to negotiate the optimal data speed and activate duplex mode automatically with N-Way feature. It can also detect the type of connection to any Ethernet device with support for auto-MDI/MDI-X. Broadcast storm protection can easily be activated via DIP switch. Plug-and-play makes deploying the RGS100-5P hassle-free for any application or scenario.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Share:

Management features
Switch type	Unmanaged
Switch layer	L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	1
Fiber optic connector	SFP
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
Optical fiber
Fiber ethernet cabling technology	1000BASE-X
Transmission distance (max)	40 km
Data transmission
Switching capacity	10 Gbit/s
Throughput	7.44 Mpps
MAC address table	2000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	0.25 MB
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Product colour	Black
Housing material	Metal
International Protection (IP) code	IP30
Wall mountable	Yes
DIN rail mounting	Yes
Performance
Plug and Play	Yes
Mean time between failures (MTBF)	568430 h
Power
DC input voltage	12 - 58 V
Input voltage	12 - 58 V
Power consumption (max)	125 W
Power protection features	Short circuit
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	120 W
Operational conditions
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	42625 BTU/h
Weight & dimensions
Width	29.1 mm
Depth	107.3 mm
Height	139 mm
Weight	500 g
Packaging content
Rack mount kit	Yes
Packaging data
Wall mounting kit	Yes
Package width	70 mm
Package depth	177.8 mm
Package height	205 mm
Package weight	700 g
Logistics data
Harmonized System (HS) code	85176990
