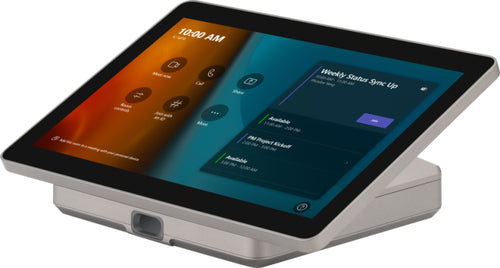

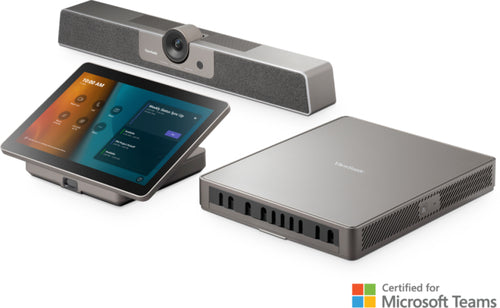

Viewsonic TeamJoin TRS10-UB video conferencing system
Viewsonic TeamJoin TRS10-UB video conferencing system
Available stock: 8
-
Estimated delivery: Jul 11 - Jul 15
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Performance | |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Product colour | Black |
| Auto framing | Yes |
| Product type | Video collaboration bar |
| PTZ control | Yes |
| Video | |
| HD type | 2K Ultra HD |
| Maximum video resolution | 3804 x 2160 pixels |
| Supported graphics resolutions | 320 x 240, 352 x 288, 480 x 270, 640 x 360, 640 x 480 (VGA), 800 x 600 (SVGA), 960 x 540, 1024 x 576 (WSVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160 |
| Audio | |
| Built-in speaker(s) | Yes |
| Noise reduction | Yes |
| Memory | |
| Internal memory | 8000 MB |
| Internal memory type | DDR4 |
| Storage media type | SSD |
| Total storage capacity | 128 GB |
| Ports & interfaces | |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Camera | |
| Megapixel (approx.) | 12 MP |
| Camera type | Single camera |
| Zoom capability | Yes |
| Digital zoom | 5x |
| Sensor type | CMOS |
| Image sensor size | 1/2.3" |
| Horizontal field of view | 109° |
| Vertical field of view | 74.4° |
| Diagonal field of view | 117.8° |
| Communication protocol | UVC 1.1 |
| Display | |
| Built-in display | Yes |
| Display | LED |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Display brightness | 300 cd/m² |
| Microphone | |
| Number of microphone arrays | 6 |
| Features | |
| Motion sensor | Yes |
| Logistics data | |
| Harmonized System (HS) code | 8525890000 |
| Computer system | |
| Processor family | Intel® Core™ i3 |
| Processor model | i3-1220P |
| VESA mounting | Yes |
| Operating system installed | Windows 11 IoT Enterprise |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8.1 |
| Mac operating systems supported | Yes |
| Other operating systems supported | Android, ChromeOS |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 111.9 W |
| Weight & dimensions | |
| Interface module dimensions (W x D x H) | 230 x 275.5 x 43 mm |
| Remote control dimensions (W x H x D) | 244.8 x 160 x 98 mm |
| Speaker dimensions (WxDxH) | 461 x 93 x 76.4 mm |
| Weight | 8.3 kg |
| Packaging data | |
| Package width | 565 mm |
| Package depth | 550 mm |
| Package height | 215 mm |
| Package weight | 10.2 kg |
| Packaging content | |
| Cables included | AC, USB Type-C |
| Power cable length | 1.8 m |
| Wall mounting kit | Yes |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Remote control included | Yes |
| Screws included | Yes |
| Quick start guide | Yes |
