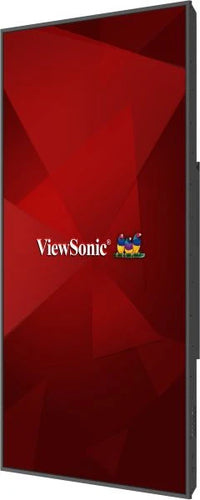

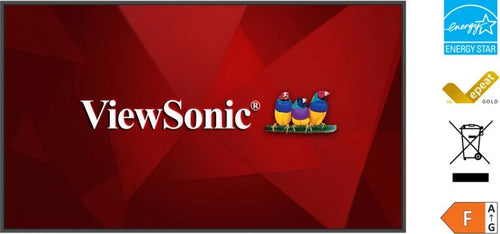

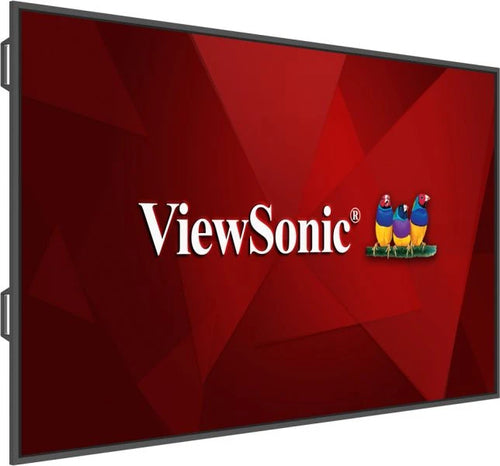

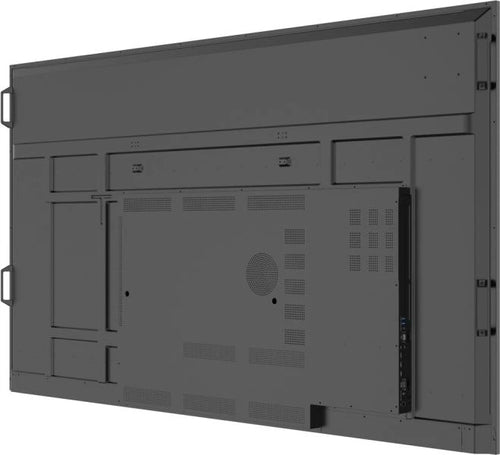

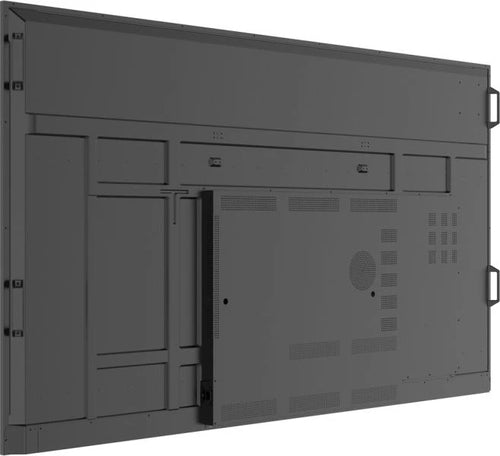

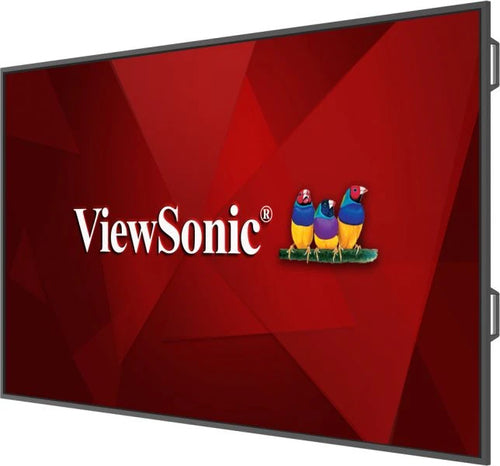

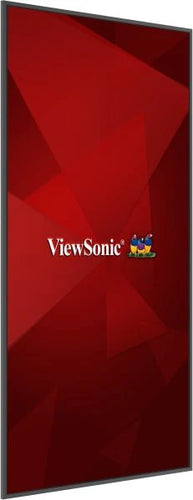

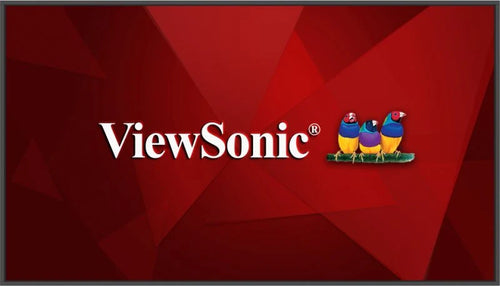

Viewsonic CDE86G3-1C Signage Display
Viewsonic CDE86G3-1C Signage Display
Available stock: 1
-
Estimated delivery: Oct 06 - Oct 10
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Display | |
|---|---|
| Panel type | TFT |
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Display diagonal | 2.18 m (86") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Active display area (W x H) | 941.184 x 529.416 mm |
| Panel life | 50000 h |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| Surface hardness | 3H |
| Ports & interfaces | |
| HDMI ports quantity | 3 |
| HDMI version | 2.1 |
| HDMI input ports quantity | 3 |
| DVI port | No |
| VGA (D-Sub) input ports | 1 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| USB ports quantity | 3 |
| USB version | 2.0 |
| USB connector type | USB Type-A, USB Type-C |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| PC Audio in | Yes |
| RS-232 interface | Yes |
| Digital audio optical out | 1 |
| PC Audio out | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| Bezel width (bottom) | 1.59 cm |
| Bezel width (side) | 1.59 cm |
| Bezel width (top) | 1.59 cm |
| Anti-glare screen | Yes |
| Performance | |
| Purpose | Commercial |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| Power | |
| Power consumption (typical) | 138.3 W |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | F |
| Energy consumption (SDR) per 1000 hours | 220 kWh |
| Energy consumption (HDR) per 1000 hours | 219 kWh |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
| Display width | 1933.8 mm |
| Display depth | 79.7 mm |
| Display height | 1103.8 mm |
| Display weight | 39.5 kg |
| Weight | 42.8 kg |
| Packaging data | |
| Package width | 2095 mm |
| Package depth | 185 mm |
| Package height | 1220 mm |
| Package weight | 58.9 kg |
| Packaging content | |
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, HDMI, RS-232 |
| Mounting kit | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Pallet gross length | 114 cm |
| Pallet gross width | 2.17 m |
| Pallet gross height | 134 cm |
| Harmonized System (HS) code | 8528521000 |
| Network | |
| Ethernet LAN | Yes |
| Technical details | |
| Sustainability certificates | ENERGY STAR, EPEAT Gold, ErP |
| Compliance certificates | CB, CE, EAC, Federal Communications Commission (FCC), RCM, REACH, RoHS, WEEE, cTUVus |
