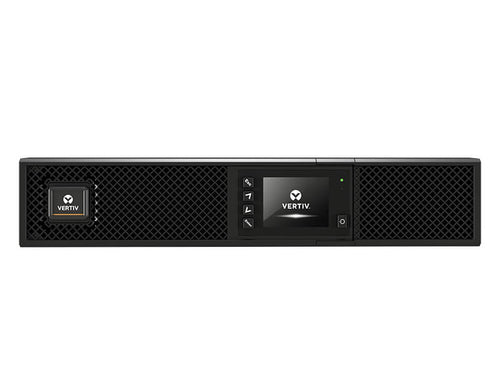

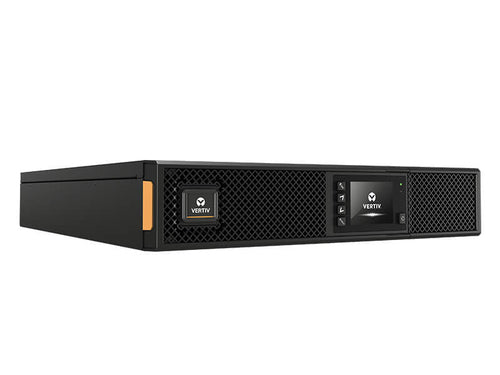

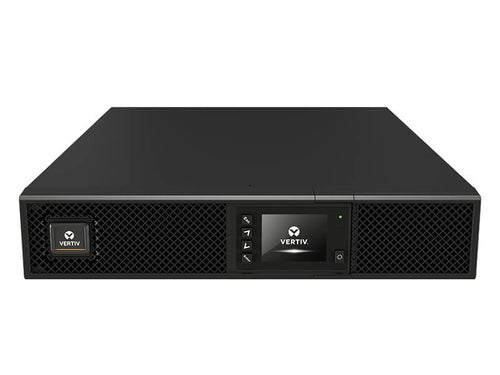

Vertiv Liebert GXT5-750IRT2UXLN uninterruptible power supply (UPS)
Vertiv Liebert GXT5-750IRT2UXLN uninterruptible power supply (UPS)
Available stock: 2
-
Estimated delivery: Jul 11 - Jul 15
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 0.75 kVA |
| Output power | 750 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 115 V |
| Input operation voltage (max) | 288 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 3% |
| Response time | 0 ms |
| Number of input phases | 1 |
| Efficiency | 95% |
| Input power factor | 0.99 |
| Emergency Power Off (EPO) | Yes |
| Noise level | 46 dB |
| Power protection features | Overload |
| Audible alarm(s) | Yes |
| Ports & interfaces | |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| USB port | Yes |
| Serial interface type | RS-232, RS-485 |
| Serial ports quantity | 1 |
| Emergency Power Off (EPO) connector | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 VAh |
| Battery voltage | 12 V |
| Typical backup time at full load | 5.6 min |
| Typical backup time at half load | 16.3 min |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 2U |
| Product colour | Black |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | IEC/EN/AS 62040-2 2nd Ed (Cat 2 – 6); FCC 15 A CISPR22 A(RFI) |
| Packaging content | |
| Cables included | USB cable |
| Manual | Yes |
| Quick installation guide | Yes |
| Safety regulation & standards | |
| Safety | IEC62040-1:2008, GS; UL1778, c-UL |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 430 mm |
| Depth | 400 mm |
| Height | 85 mm |
| Weight | 21 kg |
| Packaging data | |
| Package width | 517 mm |
| Package depth | 617 mm |
| Package height | 262 mm |
| Package weight | 21 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Battery type | VRLA |
| Output connections | IEC320 C13 |
| Input connection type | C14 |
| Dimensions (WxDxH) | 430 x 400 x 85 mm |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Non-operating relative humidity (non-condensing) | 0 - 95% |
| Overload protection | Yes |
| Package dimensions (WxDxH) | 517 x 617 x 262 mm |
| Bypass | Yes |
