The MC112CS is a media converter designed to convert 100BASE-FX fiber to 10/100Base-TX copper media and vice versa. Adopting WDM technology, MC112CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC112CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on transferring data and at 1550nm on receiving data. So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data. Another TP-Link´s media converter MC111CS is just one of the examples to cooperate with MC112CS. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port. The MC112CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers (12.5 miles).

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

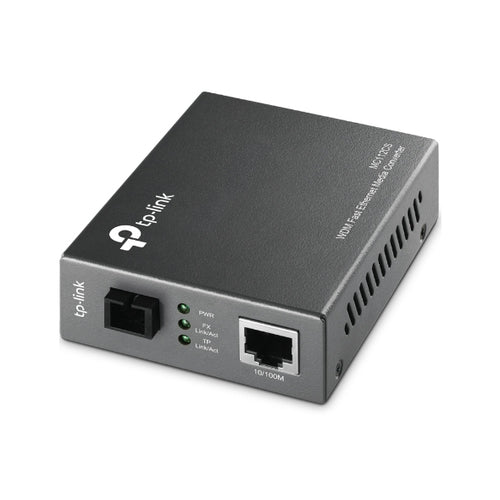

TP-Link MC112CS network media converter

TP-Link MC112CS network media converter

1 people are viewing this product

£21.09 GBP

£21.09 GBP ~~£25.10 GBP~~

Shipping calculated at checkout.

TP-Link MC112CS, 100 Mbit/s, IEEE 802.3, IEEE 802.3u, 10,100 Mbit/s, 10BASE-TX, 100BASE-FX, 100BASE-TX, Full, Half, Cat3, Cat4, Cat5

Vendor: TP-Link

Type: Network Media Converters

Available stock: 6
🚨 Hot Demand! Only 6 left — grab yours before it's gone! 💥

Free Shipping over £2000

Estimated delivery: Jul 08 - Jul 12

Informations

The MC112CS is a media converter designed to convert 100BASE-FX fiber to 10/100Base-TX copper media and vice versa. Adopting WDM technology, MC112CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC112CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on transferring data and at 1550nm on receiving data. So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data. Another TP-Link´s media converter MC111CS is just one of the examples to cooperate with MC112CS. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port. The MC112CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers (12.5 miles).

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Share:

Network
Maximum data transfer rate	100 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10,100 Mbit/s
Copper ethernet cabling technology	10BASE-TX, 100BASE-FX, 100BASE-TX
Auto MDI/MDI-X	Yes
Duplex system	Full, Half
Cable types supported	Cat3, Cat4, Cat5
Performance
Maximum transfer distance	20000 m
Wavelength-division multiplexing (WDM)	Yes
Fiber mode structure	Single-mode
Features
Internal	No
LED indicators	Yes
Product colour	Black
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC
Power
Power consumption (max)	2.41 W
Weight & dimensions
Width	95 mm
Depth	73 mm
Height	27 mm
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Certificates
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	85176990
