Ports & interfaces
Connectivity technology Wireless
Host interface PCI Express
Interface WLAN / Bluetooth
Network
Maximum data transfer rate 2402 Mbit/s
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi Yes
Wi-Fi band Dual-band (2.4 GHz / 5 GHz)
Frequency range 2.4 - 5 GHz
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rates supported 54,300,574,1733,2402 Mbit/s
Modulation 16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM
Security algorithms 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Bluetooth Yes
Bluetooth version 5.0
Design
Component for PC
Product colour Black, Red
Internal Yes
Antenna Yes

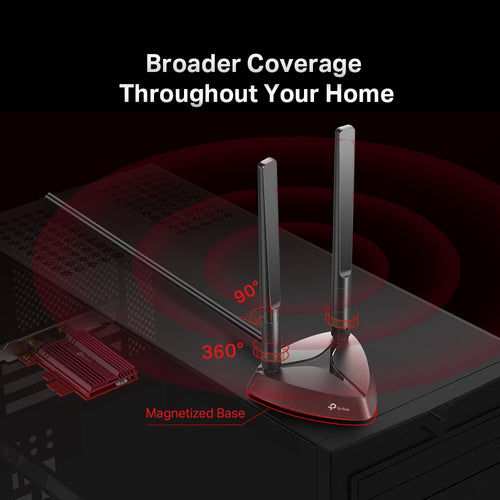

Antenna design External
Transmitting power (CE) 23 dBm
Transmitting power (FCC) 27 dBm
Chipset Intel Wi-Fi 6
Receiver sensitivity 5 GHz : 11ax HT160:-56.25dBm 11ax HT80: -59dBm 11ax HT40: -62.25dBm 11ax HT20: -65dBm 11ac HT160:-62dBm 11ac HT80: -65.5dBm 11ac HT40: -69.75dBm 11ac HT20: -73.75dBm 11n HT40: -74.5dBm 11n HT20: -77.5dBm 11a 54Mbps: -77.75dBm 11a 6Mbps: -94.5dBm 2.4GHz : 11ax HT40: -60.75dBm 11ax HT20: -63.75dBm 11n HT40: -73dBm 11n HT20: -76.25dBm 11g 54Mbps: -76.5dBm 11b 11Mbps: -89dBm
Operating modes Infrastructure mode
System requirements
Windows operating systems supported Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Sustainability
Sustainability compliance Yes
Weight & dimensions
Width 95.2 mm
Depth 120.8 mm
Height 21.5 mm
Packaging data
Package width 270 mm
Package depth 215 mm
Package height 47 mm
Package weight 480 g

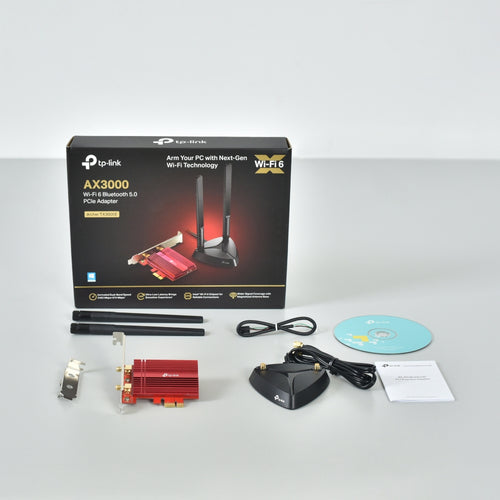

Packaging content
Mounting brackets included Yes
Resource CD Yes
Bluetooth header cable Yes
Quick installation guide Yes
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Logistics data
Harmonized System (HS) code 85176990
