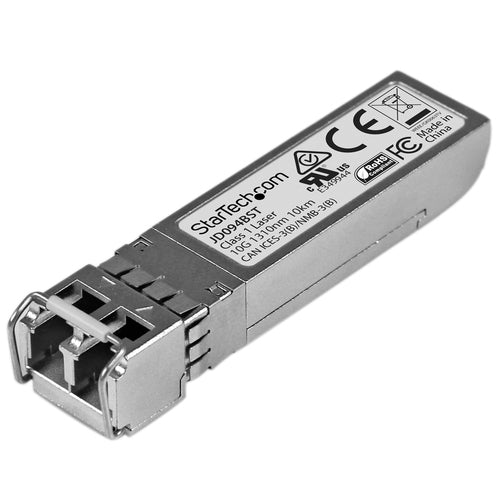

SFP+ Transceiver Module StarTech.com JD094BST 10GBASE-LR 10km 1310nm LC
SFP+ Transceiver Module StarTech.com JD094BST 10GBASE-LR 10km 1310nm LC
Organizations leveraging HPE networking systems require fast, reliable connections for high-demand applications. The StarTech.com SFP+ Transceiver Module delivers exceptional performance, ensuring efficient data transfer across your fiber optic infrastructure.
With a data transfer speed of 10,000 Mbit/s and a 10km range, this transceiver is built to meet the needs of modern network environments. Its compatibility with HPE JD094B and support for Digital Diagnostic Monitoring (DDM) offer flexibility and real-time diagnostics crucial for maintaining network integrity.
- Compatibility: HPE JD094B
- Data transfer speed: 10,000 Mbit/s
- Range: 10km
- Wavelength: 1310nm
- Connector type: LC
- DDM support: Yes
- Application: 10GbE single mode fiber optic
Ideal for IT administrators and businesses looking to enhance their network performance with high-speed fiber optic connections.
Available stock: 12
-
Estimated delivery: May 30 - Jun 03
Share this product
Couldn't load pickup availability
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LR |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3ae |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 2104865 h |
| Power | |
| Power consumption (typical) | 1.2 W |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC, UR |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 13.9 mm |
| Depth | 58.4 mm |
| Height | 12.6 mm |
| Weight | 20 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 119 mm |
| Package depth | 92 mm |
| Package height | 33 mm |
| Package weight | 49 g |
| Logistics data | |
| Master (outer) case width | 340 mm |
| Master (outer) case length | 358 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 211 mm |
| Products per master (outer) case | 55 pc(s) |
| Country of origin | China |
