SATA III (6Gbps) | PCI Express 2.0 | PCIe x2 Slot | 10x SATA Connectors | 2-Year Warranty

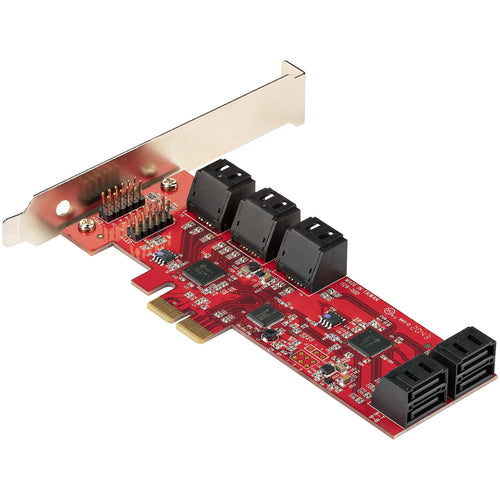

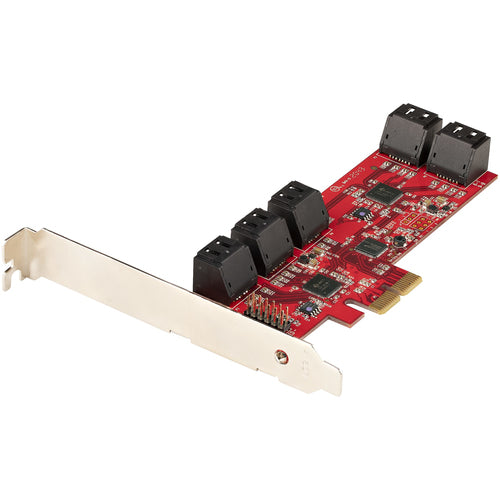

This 10-port SATA III (6Gbps) controller enables you to add 10 SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 2.0 Specifications.

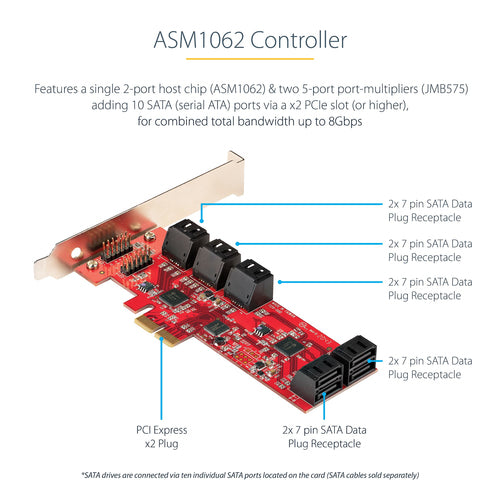

ASM1062 to Deliver 10-Port SATA 6Gbps Performance

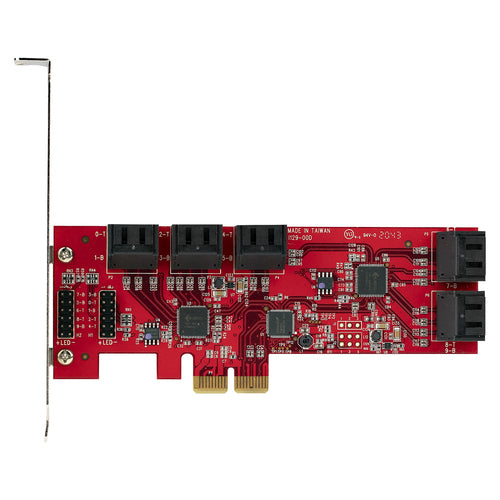

Featuring the ASM1062 controller, this SATA card enables the connection of 10 high-performance SATA 6Gbps drives with a combined total throughput of up to 8Gbps. The SATA drives are connected via ten individual SATA ports located on the card (SATA cables sold separately).

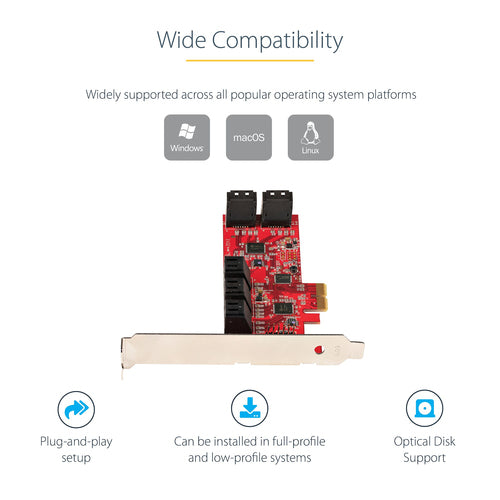

Wide Compatibility

The controller card is widely supported across all popular operating system platforms including Windows (7,8,10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).

To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.

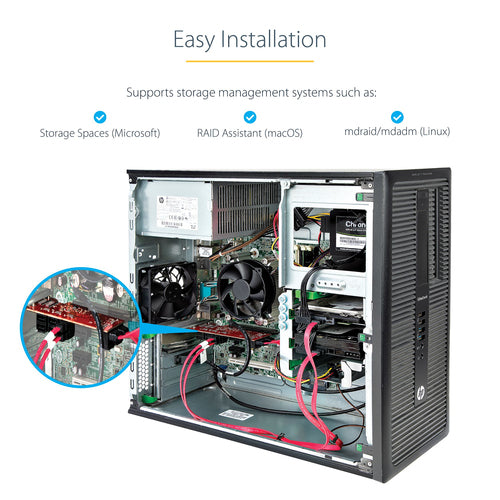

Hassle-Free Installation

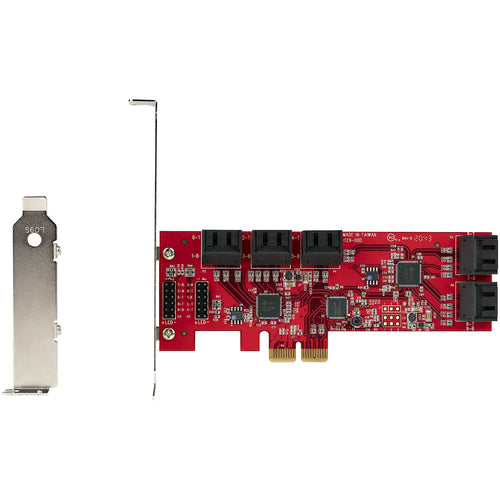

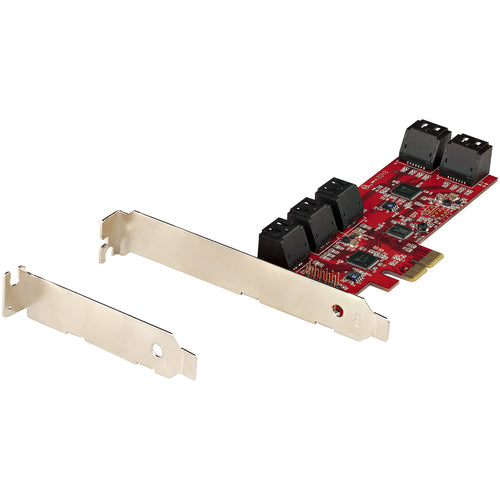

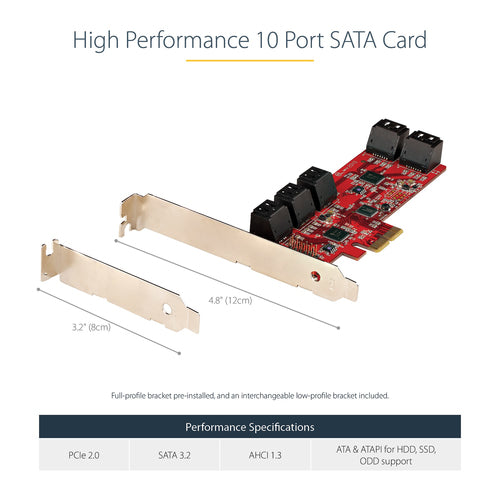

The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.

10P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.

The StarTech.com Advantage

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

PCIe SATA Expansion Card StarTech.com 10-Port 6Gbps ASM1062 Low/Full Profile

Name: PCIe SATA Expansion Card StarTech.com 10-Port 6Gbps ASM1062 Low/Full Profile
Brand: StarTech.com
SKU: 10P6G-PCIE-SATA-CARD
Price: 82.21 GBP
Availability: InStock

1 people are viewing this product

£82.21 GBP

£82.21 GBP ~~£102.76 GBP~~

Shipping calculated at checkout.

IT professionals looking to expand system storage will benefit from the StarTech.com 10-Port PCIe SATA Expansion Card, designed for high-capacity RAID setups and versatile storage configurations. This card's stacked SATA connectors optimize space while offering reliable data transfer up to 6Gbps.

Built to support both Low and Full Profile systems, its PCI Express 2.0 interface and advanced ASM1062 chipset ensure seamless integration and performance consistency. Enhance your system’s capabilities effortlessly with this effective expansion solution.

Port Count: 10 ports
Data Transfer Rate: Up to 6Gbps
Compatibility: Low/Full Profile systems
Connector Design: Stacked SATA connectors
Chipset: ASM1062 for reliable performance
Functionality: Non-Raid
Interface: PCI Express 2.0

Ideal for IT administrators and small to mid-size business owners seeking to improve their infrastructure with efficient and scalable storage solutions.

Vendor: StarTech.com

Type: Interface Cards/Adapters

Available stock: 7
🚨 Hot Demand! Only 7 left — grab yours before it's gone! 💥

Free Shipping over $2000

Estimated delivery: May 30 - Jun 03

Infomations

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Ports & interfaces
Host interface	PCIe
Output interface	SATA
Expansion card standard	PCIe 2.0
Internal SATA ports quantity	10
Port multiplier	Yes
Design
Internal	Yes
Product colour	Red
Features
Chipset	ASMedia - ASM1062
Data transfer rate (max)	6 Gbit/s
S.M.A.R.T. support	Yes
TRIM support	Yes
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-25 - 85 °C
Operating relative humidity (H-H)	20 - 80%
System requirements
Windows operating systems supported	Windows 7 Ultimate x64, Windows 10, Windows 7 x64, Windows 10 Education, Windows 8, Windows 10 Education x64, Windows 7, Windows 8 Enterprise, Windows 10 Enterprise, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows 10 Enterprise x64, Windows 7 Enterprise x64, Windows 8 Pro, Windows 10 Home, Windows 7 Home Basic, Windows 8 Pro x64, Windows 10 Home x64, Windows 7 Home Basic x64, Windows 8 x64, Windows 10 IOT Core, Windows 7 Home Premium, Windows 8.1, Windows 10 IoT Enterprise, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 10 Pro, Windows 7 Professional, Windows 8.1 Enterprise x64, Windows 10 Pro x64, Windows 7 Professional x64, Windows 8.1 Pro, Windows 10 x64, Windows 7 Starter, Windows 8.1 Pro x64, Windows 11, Windows 7 Starter x64, Windows 8.1 x64, Windows 11 x64, Windows 7 Ultimate
Mac operating systems supported	Mac OS X 10.13 High Sierra, Mac OS X 11.0 Big Sur, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.10 Yosemite, Mac OS X 10.15.3 Catalina, Mac OS X 10.11 El Capitan, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2019, Windows Server 2012 R2, Windows Server 2016
Technical details
Compliance certificates	CE, RoHS

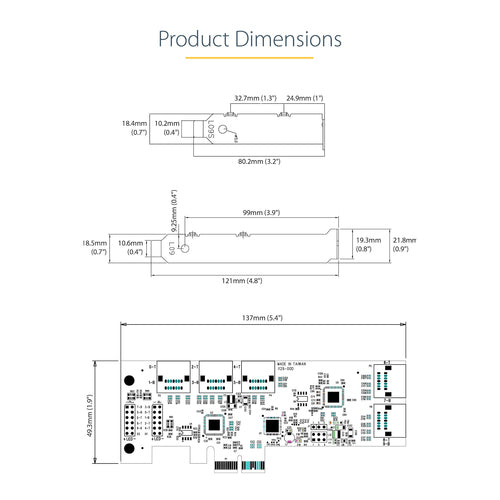

Weight & dimensions
Width	54 mm
Depth	139 mm
Height	16 mm
Weight	75 g
Packaging data
Mounting brackets included	Yes
Quick installation guide	Yes
Package width	142 mm
Package depth	175 mm
Package height	30 mm
Package weight	120 g
Logistics data
Harmonized System (HS) code	84733020
Products per master (outer) case	60 pc(s)
Master (outer) case width	500 mm
Master (outer) case length	370 mm
Master (outer) case height	310 mm
