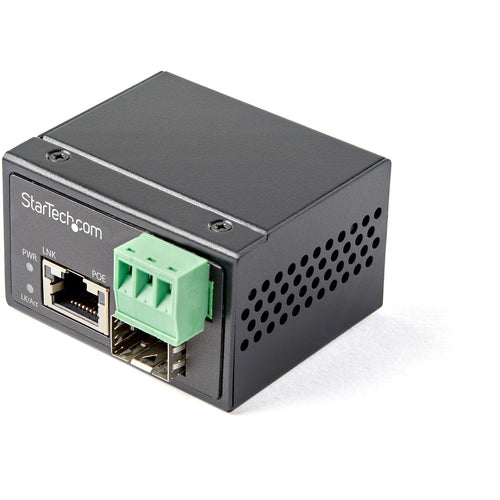

Network Media Converter StarTech IMC1GSFP30W PoE+ 30W 1000 Mbit/s
Network Media Converter StarTech IMC1GSFP30W PoE+ 30W 1000 Mbit/s
Industrial environments that require reliable conversion from fiber to copper benefit immensely from the StarTech IMC1GSFP30W. This media converter enables efficient data transmission, making it essential for applications ranging from industrial setups to commercial buildings.
With support for both singlemode and multimode fiber, it offers robust performance in challenging conditions. The compact design makes installation easy in tight spaces, while the 1000 Mbit/s data transfer speed ensures effective connectivity over long distances.
- Power over Ethernet (PoE+): 30W
- Conversion: SFP to RJ45
- Data transfer speed: 1000 Mbit/s
- Operating temperature range: -40 to +75°C
- Compliance: IEEE 802.3 standards
- Design: Mini and compact installation
- Maximum reach: 100 m
Ideal for IT administrators and professionals extending network infrastructure in diverse environments, ensuring reliable connectivity where it's needed most.
Available stock: 3
-
Estimated delivery: May 30 - Jun 03
Share this product
Couldn't load pickup availability
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Network | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Flow control support | Yes |
| Duplex system | Full |
| Performance | |
| Maximum transfer distance | 100 m |
| Fiber mode structure | Multi-mode, Single-mode |
| Buffer size | 512 KB |
| Mean time between failures (MTBF) | 500000 h |
| Features | |
| Internal | No |
| Product colour | Black |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power | |
| Input voltage | 48 - 56 V |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 30 W |
| Power plug type | Type N |
| Weight & dimensions | |
| Width | 36 mm |
| Depth | 59 mm |
| Height | 49 mm |
| Weight | 80 g |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Quick installation guide | Yes |
| Packaging data | |
| Package width | 155 mm |
| Package depth | 105 mm |
| Package height | 64 mm |
| Package weight | 204.9 g |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 355 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case height | 225 mm |
| Products per master (outer) case | 20 pc(s) |
