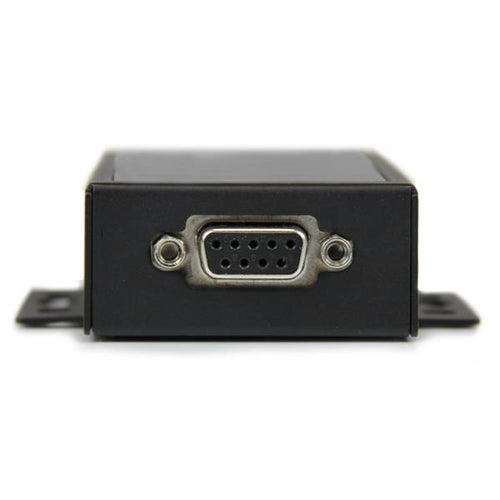

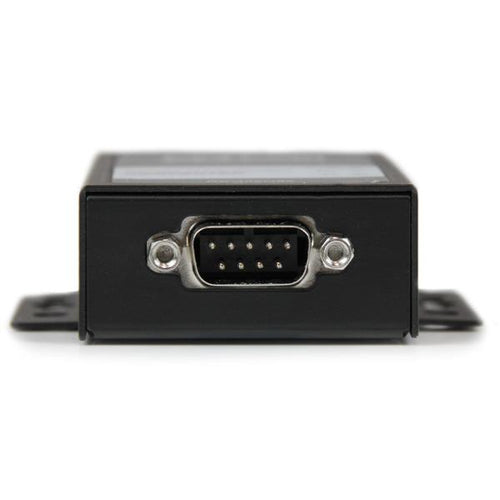

Serial Port Converter StarTech.com IC232485S RS232 to RS422/485 15KV ESD Protection

Infomations

Convert an RS232 data signal to either RS485 or RS422 with this wall-mountable, ESD-protected adapter

The IC232485S Industrial RS232 to RS-422/485 Serial Converter is a bi-directional adapter that lets you adapt an RS232 data signal to either RS485 (2 or 4-wire) or RS422 and vice-versa, with support for baud rates up to 921.6 Kbps.

Ideal for industrial environments, the serial port converter provides 15KV ESD protection on all signal pins to protect costly and often sensitive control equipment against electrical damage. The serial converter also features a sturdy wall-mountable metal housing with Power, Tx and Rx LED indicators for simple status monitoring.

The adapter supports auto baud rate detection as well as RS-422 and RS485 mode detection, with an integrated dip switch for manual mode selection if needed, and supports connection distances of up to 4000ft (1200m).

Backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

- Protect sensitive industrial equipment with integrated ESD protection
- Communicate efficiently with connected devices through high-speed 921Kbps support
- Suitable for industrial environments with a rugged, wall-mountable enclosure

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Serial Port Converter StarTech.com IC232485S RS232 to RS422/485 15KV ESD Protection

Name: Serial Port Converter StarTech.com IC232485S RS232 to RS422/485 15KV ESD Protection
Brand: StarTech.com
SKU: IC232485S
Price: 58.54 GBP
Availability: InStock

1 people are viewing this product

£58.54 GBP

£58.54 GBP ~~£69.66 GBP~~

Shipping calculated at checkout.

Industrial environments requiring robust data connections benefit from the StarTech.com RS232 to RS422/485 Serial Port Converter. This device delivers reliable data transmission, ensuring stable connections while safeguarding against electrical surges.

With an operating temperature range that extends to 50 °C and 15KV ESD protection, this converter is built to withstand harsh conditions, making it suitable for long-distance connections of RS232 devices. Equip your communication setup with a product designed for durability and stability.

Type: RS232 to RS422/485 Serial Port Converter
ESD Protection: 15KV
Temperature Range: 0 - 50 °C (operating), -20 - 60 °C (storage)
Humidity Range: 5 - 85%
Dimensions: 59 mm x 117 mm x 22 mm

Ideal for IT technicians managing industrial applications and communication setups requiring resilient devices under challenging conditions.

Vendor: StarTech.com

Type: Serial Converters/Repeaters/Isolators

Available stock: 6
🚨 Hot Demand! Only 6 left — grab yours before it's gone! 💥

Free Shipping over $2000

Estimated delivery: May 30 - Jun 03

Infomations

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Technical details
Host interface	RS-232
Output interface	RS-232
Connector 1	DB-9
Connector 2	DB-9
Connector gender	Male/Female
Product colour	Black
Maximum cable length	1200 m
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 85%
Weight & dimensions
Width	59 mm
Depth	117 mm
Height	22 mm
Weight	143 g
Package width	208 mm
Package depth	146 mm
Package height	41 mm
Package weight	351 g
Power
Input voltage	110 - 240 V
Input current	0.3 A
Material
Housing material	Steel
Certificates
Certification	CE, FCC, REACH
Packaging data
Manual	Yes
