StarTech.com PEX4S232485 interface cards/adapter

Name: StarTech.com PEX4S232485 interface cards/adapter
Brand: StarTech.com
SKU: PEX4S232485
Price: 98.00 GBP
Availability: InStock

1 people are viewing this product

£98.00 GBP

£98.00 GBP ~~£114.00 GBP~~

StarTech.com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485, PCIe, Serial, RS-232/422/485, SystemBase SB16C1052PCI, 256 B, 0 - 100 °C

Vendor: StarTech.com

Type: Interface Cards/Adapters

Available stock: 9
🚨 Hot Demand! Only 9 left — grab yours before it's gone! 💥

Free Shipping over $2000

Limited time offer

Get $20 off when you spend $1,000 or more! Learn more

Estimated delivery: Dec 04 - Dec 08

Infomations

Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot

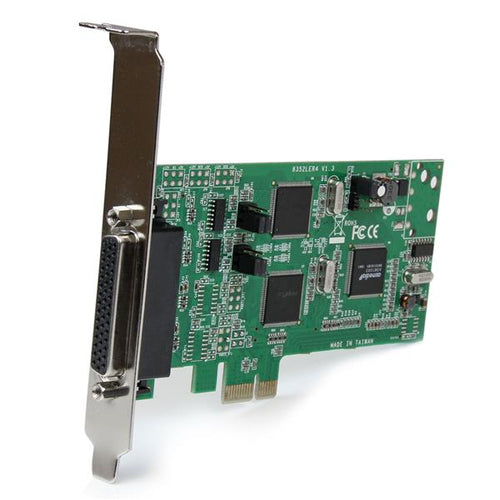

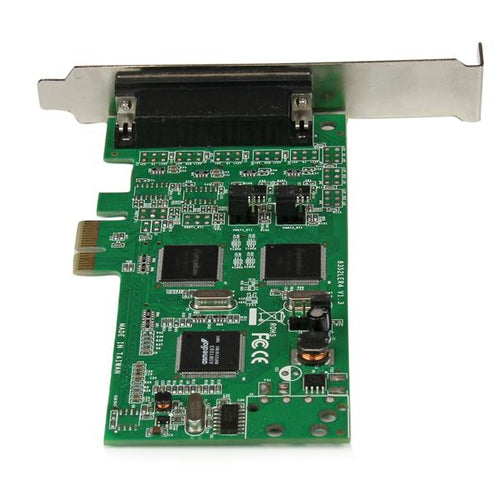

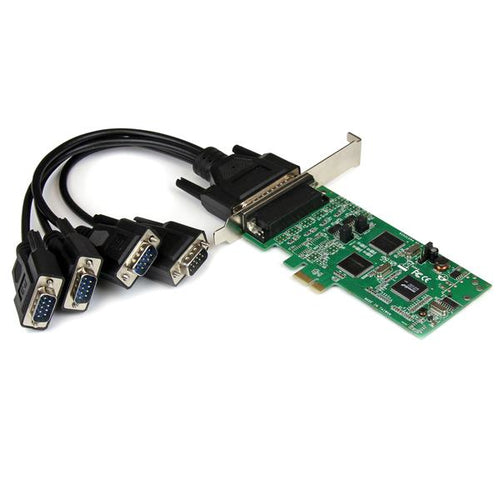

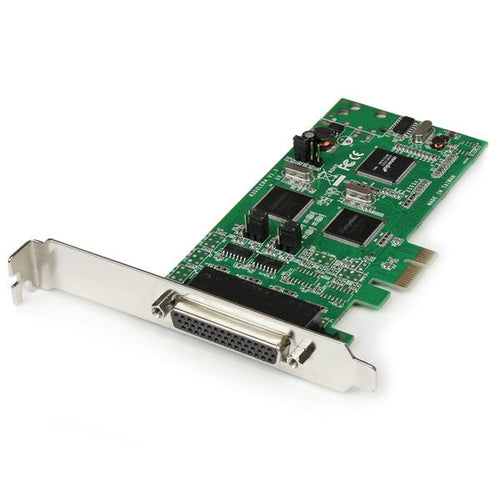

The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.

This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.

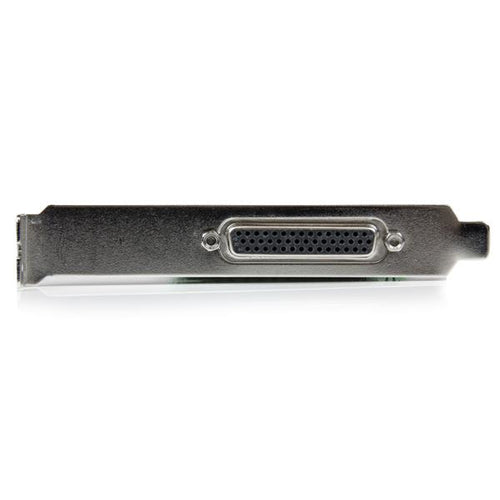

A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

- This single PCI Express combo card is compatible with any serial device protocol (RS232, RS422, and RS485), allowing for communication with multiple devices over mixed protocols
- Includes both low profile/half-height and full profile brackets to ensure fitment into a broad range of system form factors

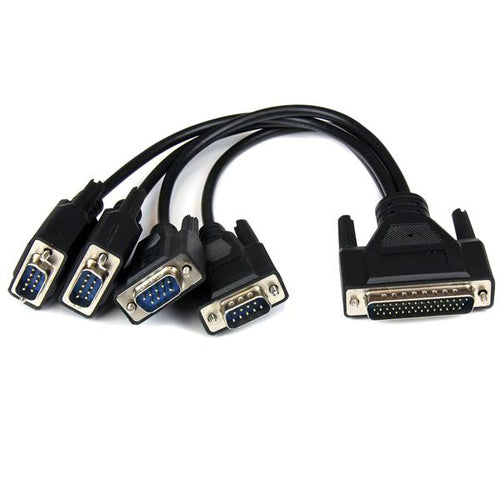

- The included breakout cable saves expense as an all-in-one solution, and allows the addition of multiple serial ports through a single PCI Express slot

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Ports & interfaces
Host interface	PCIe
Output interface	Serial
Serial ports quantity	4
Serial interface type	RS-232/422/485
Design
Internal	Yes
Features
Chipset	SystemBase SB16C1052PCI
FIFO (First In, First Out)	256 B
Operational conditions
Operating temperature (T-T)	0 - 100 °C
Storage temperature (T-T)	0 - 150 °C
Operating relative humidity (H-H)	20 - 80%
System requirements
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Yes
Technical details
Compliance certificates	RoHS
Weight & dimensions
Width	125 mm
Depth	70 mm
Height	20 mm
Weight	67.4 g
Packaging data
User guide	Yes
Package width	146 mm
Package depth	210 mm
Package height	41 mm
Package weight	390 g
Logistics data
Harmonized System (HS) code	84733020
Other features
Data transfer rate	0.4608 Mbit/s
Connectivity technology	Wired
