Streamline RS-232 connectivity for serial device management over IP with this PoE powered serial device server

This PoE serial-to-IP converter is an efficient solution for remotely connecting and controlling a variety of RS232 serial devices over an IP-based network. Compliant with the 802.3af PoE standard, the RJ45 LAN to DB9 adapter facilitates a seamless integration of data and power supply to the unit through a single Cat5/5e/6/6a copper cable

Configuration and Management

The DB9 to Ethernet Adapter family shares the same Windows Virtual COM Port software and Web User Interface (WebUI) for a unified experience. Users can employ the Windows software to view and manage all device servers within a network and to set up virtual COM ports. Alternatively, the WebUI provides a platform-independent method, allowing users to access and configure these device servers from any operating system. This flexibility ensures that administrators can manage their network of device servers efficiently, regardless of the operating system they are using.

The product family includes the following options:

• 1-Port Serial to Ethernet Adapter with PoE (I13P-SERIAL-ETHERNET)
• 1-Port Serial to Ethernet Adapter (I13-SERIAL-ETHERNET)
• 2-Port Serial to Ethernet Adapter (I23-SERIAL-ETHERNET)
• 4-Port Serial to Ethernet Adapter (I43-SERIAL-ETHERNET)

PoE and Ethernet options

Choose between dual power options, M-size barrel connector and Power over Ethernet (PoE), that provide maximum installation flexibility for a variety of scenarios. The TAA-compliant IP-to-serial converter features a single RJ45 10/100 Mbps Ethernet port and supports Telnet Server (RFC2217), TCP Server, TCP Client, and UDP protocols for versatile network connectivity. Supports Level-4 ESD protection (15kV air/8kV contact) and can supply 5VDC over pin 9 if required.

Flexible Installation and Rugged Chassis

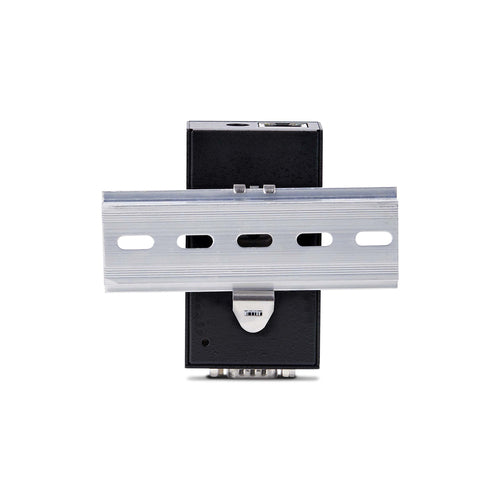

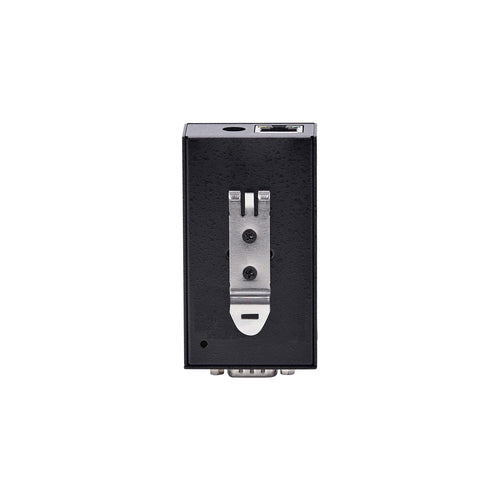

The converter is housed in a full metal enclosure for durability in harsh environments. The DB9 over IP converter includes all necessary wall and DIN rail mounting hardware. Multiple mounting holes along the chassis allow it to be installed in the most useful orientation for any application. The compact design of 1.8x1x3.2in (46.1x 25x 81.9mm) is ideal for environments where space is at a premium.

The StarTech.com Advantage

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

StarTech.com I13P-SERIAL-ETHERNET serial converter/repeater/isolator

Name: StarTech.com I13P-SERIAL-ETHERNET serial converter/repeater/isolator
Brand: StarTech.com
SKU: I13P-SERIAL-ETHERNET
Price: 145.00 GBP
Availability: InStock

1 people are viewing this product

£145.00 GBP

£145.00 GBP ~~£159.00 GBP~~

StarTech.com 1-Port Serial to Ethernet Adapter, 802.3af PoE IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mountable, RJ45 LAN to DB9 Serial Converter, TAA, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, 0 - 60 °C, -20 - 75 °C, 5 - 95%, 82 mm, 46 mm

Vendor: StarTech.com

Type: Serial Converters/Repeaters/Isolators

Available stock: 21

★

Free Shipping over $2000

Limited time offer

Get $20 off when you spend $1,000 or more! Learn more

Estimated delivery: Dec 04 - Dec 08

Infomations

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Network
Networking standards	IEEE 802.3af, IEEE 802.3i, IEEE 802.3u
Auto-negotiation	Yes
Auto MDI/MDI-X	Yes
Full duplex	Yes
Technical details
Host interface	RS-232
Output interface	RJ-45
Connector 1	DB-25S
Connector 2	RJ-45
Connector gender	Female/Female
Mounting	Wall/DIN
Baud rate	921.6 Kbit/s
Product colour	Black
Data bits	7, 8
Parity bit	Even, Mark, No, Odd, Space
Stop bits	1, 2
Compliance certificates	Trade Agreements Act (TAA)
Flow Control type	No, RTS/CTS, XON/XOFF
Electrostatic Discharge (ESD) protection (air)	15 kV
Electrostatic Discharge (ESD) protection (contact)	8 kV
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	82 mm
Depth	46 mm
Height	25 mm
Weight	155 g
Package width	144 mm
Package depth	207 mm
Package height	30 mm
Package weight	1.2 kg
Material
Housing material	Steel
Indication
LED indicators	Yes

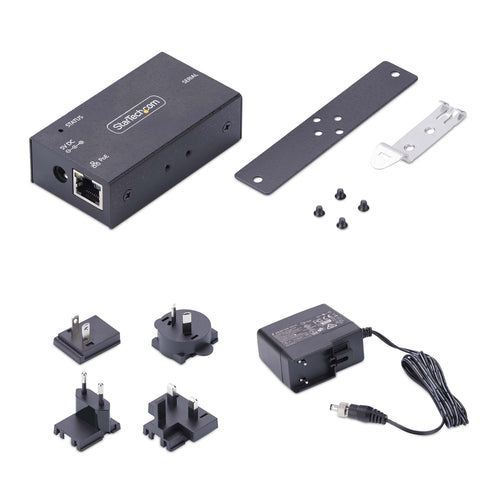

Packaging content
Mounting brackets included	Yes
Number of screws included	4 pc(s)
AC adapter included	Yes
DIN rail included	Yes
Packaging data
Manual	Yes
Software
Windows operating systems supported	Windows 11 Enterprise x64, Windows 7 Professional x64, Windows Vista Enterprise x64, Windows 10, Windows 11 Home, Windows 7 Starter, Windows Vista Home Basic, Windows 10 Education, Windows 11 Pro, Windows 7 Starter x64, Windows 10 Education x64, Windows 11 x64, Windows 7 Ultimate, Windows Vista Home Premium, Windows 10 Enterprise, Windows 7 Ultimate x64, Windows Vista Home Premium x64, Windows 10 Enterprise x64, Windows 7 x64, Windows Vista Ultimate, Windows 10 Home, Windows 8, Windows Vista Ultimate x64, Windows 10 Home x64, Windows 7, Windows 8 Enterprise, Windows 10 IOT Core, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows XP, Windows 10 IoT Enterprise, Windows 7 Enterprise x64, Windows 8 Pro, Windows XP Home, Windows 10 Pro, Windows 7 Home Basic, Windows 8 Pro x64, Windows XP Home x64, Windows 10 Pro x64, Windows 7 Home Basic x64, Windows 8 x64, Windows Vista, Windows XP Professional, Windows 10 x64, Windows 7 Home Premium, Windows Vista Business, Windows XP Professional x64, Windows 11, Windows 7 Home Premium x64, Windows Vista Business x64, Windows 11 Enterprise, Windows 7 Professional, Windows Vista Enterprise
Logistics data
Products per master (outer) case	40 pc(s)
Master (outer) case length	515 mm
Master (outer) case width	390 mm
Master (outer) case height	313 mm
