StarTech.com 155UE-USB4-DOCK laptop dock/port replicator

Informations

Turn your USB4 laptop into a multi-monitor high-resolution workstation with 6 USB ports, 2.5 Gigabit Ethernet and 100W Laptop Charging

This USB4 (USB-C 40Gbps) docking station uses a single USB4 or Thunderbolt port on a host computer to add high-performance connectivity while charging the laptop.

Flexible High-Performance Video

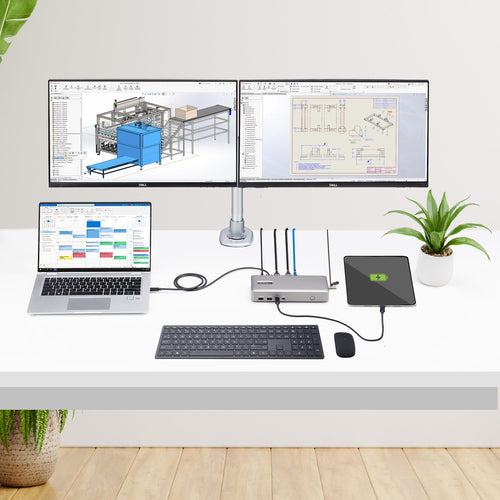

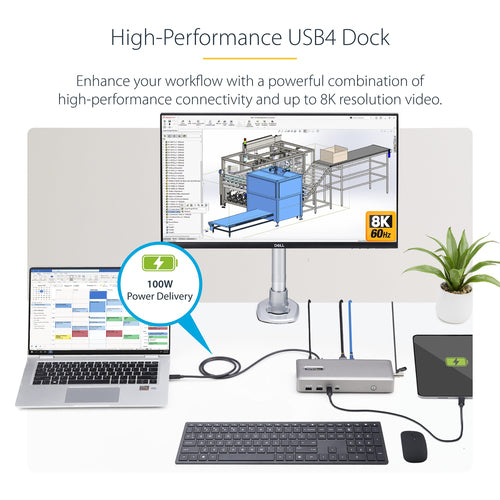

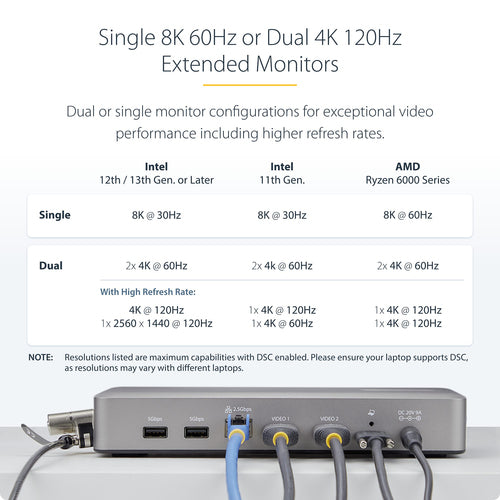

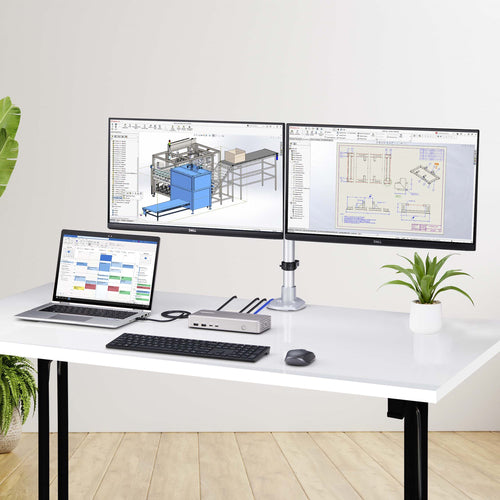

The dock is equipped with 2x HDMI 2.1 video outputs for connecting dual monitors to the host computer. The dock supports can support dual-monitors with support for resolutions up dual 4K 60Hz at 4:4:4 (RGB) or dual 4K 120Hz at 4:2:2. A single display workstation is also supported at resolutions up to 8K 30Hz 4:4:4 (RGB) or 8K 60Hz at 4:2:2.

Port Connectivity

The docking station utilizes the high 40Gbps throughput available from a Thunderbolt 4/3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications.

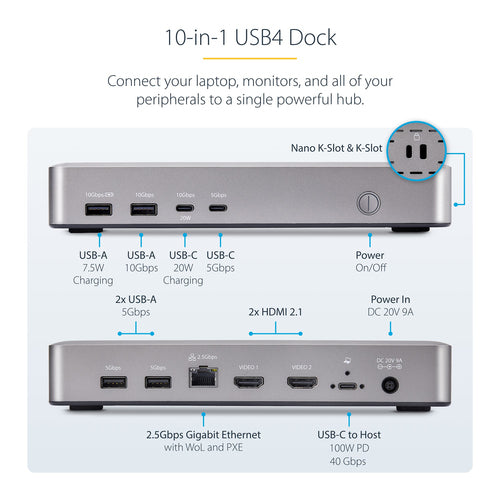

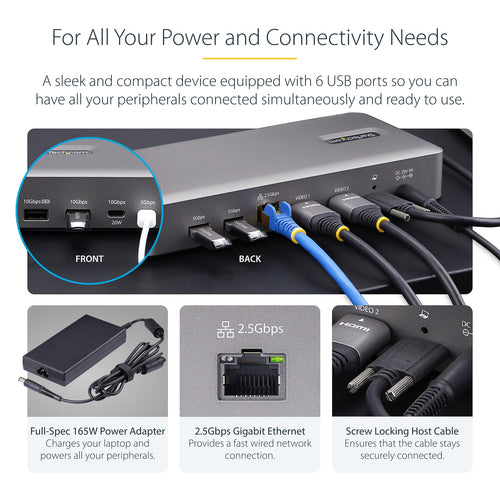

The dock features:

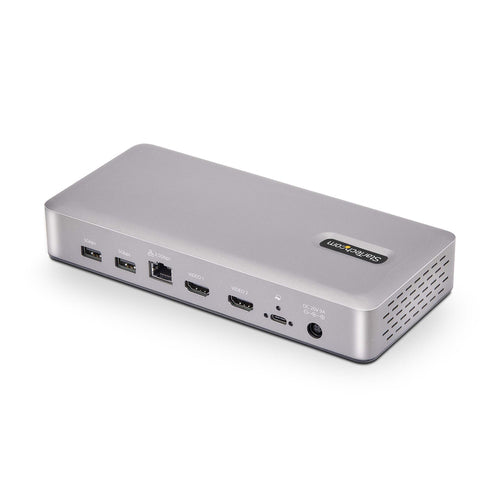

• 2x HDMI ports to connect displays.
• 6x USB Hub (2x 10Gbps USB Type-A, 2x USB Type-A 5Gbps, 1x USB Type-C 10Gbps, 1x USB-C 5Gbps) to connect USB peripheral devices.
• 1x 2.5 Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN)

100W USB Power Delivery

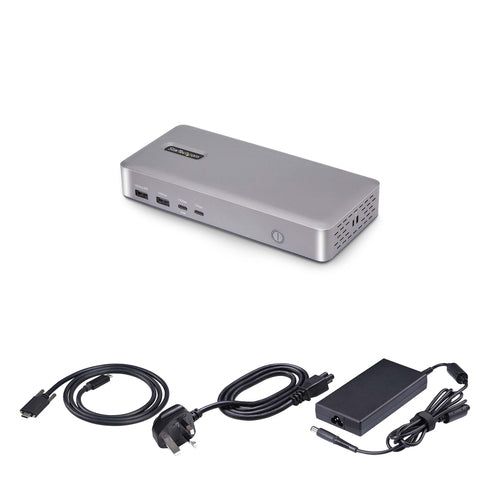

Includes a 180W power adapter and supports 100W USB power delivery. This enables the dock to charge the laptop, with enough additional power for all downstream ports. The 6-Port USB hub includes a 20W downstream USB-C Power Delivery port and a 7.5W BC 1.2 Downstream Charging Port (DCP) for charging tablets, smartphones or other battery-powered USB devices.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools App

Developed to improve performance and security, Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software includes:

•

Advanced Windows Layout Utility : To setup and save custom windows layouts.

•

Mac Address Pass-Through Utility : To improve network security.

•

USB Event Monitoring Utility : To track and log connected USB devices

•

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

StarTech.com 155UE-USB4-DOCK laptop dock/port replicator

Name: StarTech.com 155UE-USB4-DOCK laptop dock/port replicator
Brand: StarTech.com
SKU: 155UE-USB4-DOCK
Price: 128.98 GBP
Availability: InStock

1 people are viewing this product

£128.98 GBP

£128.98 GBP ~~£176.70 GBP~~

Shipping calculated at checkout.

StarTech.com Dual-Monitor USB4 Docking Station, Dual 4K 120Hz or Single 8K 60Hz HDMI, 100W Laptop Charging, 2.5GbE, USB-C Multi-Monitor Dock, Driverless, Wired, USB4, 100 W, 10,100,1000,2500 Mbit/s, Silver, 40 Gbit/s

Vendor: StarTech.com

Type: Laptop Docks & Port Replicators

Available stock: 33

★

Free Shipping over £2000

Estimated delivery: Jul 08 - Jul 12

Informations

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Ports & interfaces
Connectivity technology	Wired
Host interface	USB4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
HDMI ports quantity	2
Microphone in	No
DC-in jack	Yes
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Wake-on-LAN ready	Yes
Full duplex	Yes
Performance
Card reader integrated	No
Data transfer rate	40 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	2
Maximum refresh rate	120 Hz

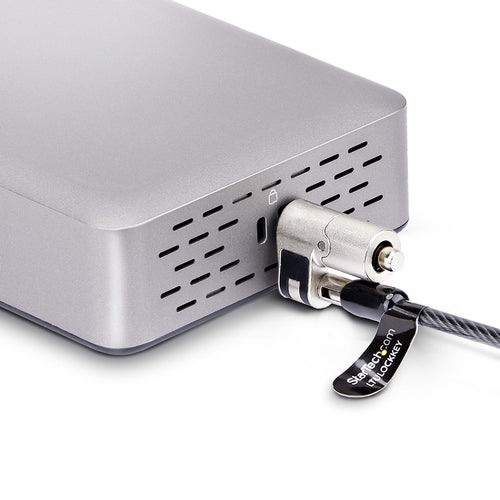

Cable lock slot	Yes
Cable lock slot type	Kensington, Nano
Product colour	Silver
On/off switch	Yes
LED indicators	Yes
UASP support	Yes
Housing material	Plastic
Power
Power source type	DC
AC input voltage	100 - 240 V
Input current	2.5 A
Output voltage	20 V
Output current	9 A
Power consumption (typical)	165 W
Power plug type	Type M
Compatible power plug types	EU, UK

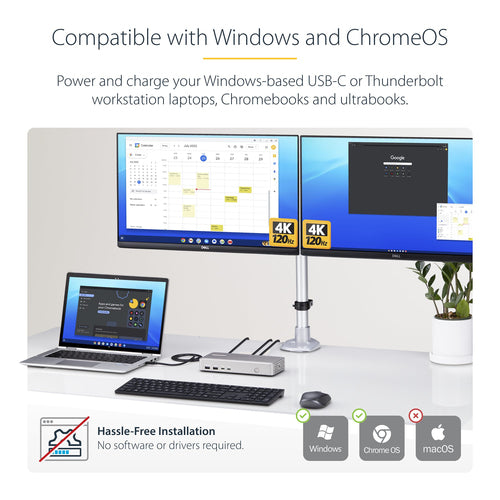

Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Other operating systems supported	ChromeOS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%

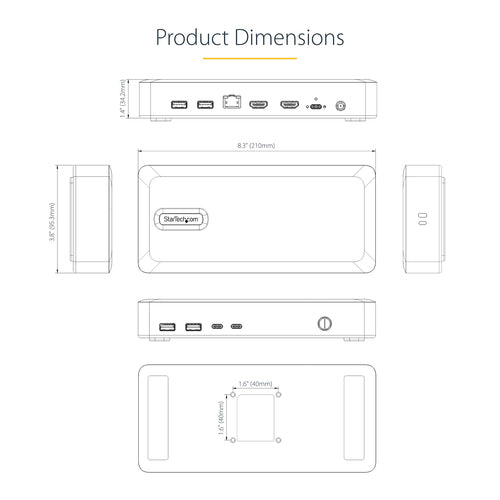

Weight & dimensions
Width	210 mm
Depth	95 mm
Height	34 mm
Weight	138.6 g
Packaging data
Package width	145 mm
Package depth	230 mm
Package height	89 mm
Package weight	1.3 kg

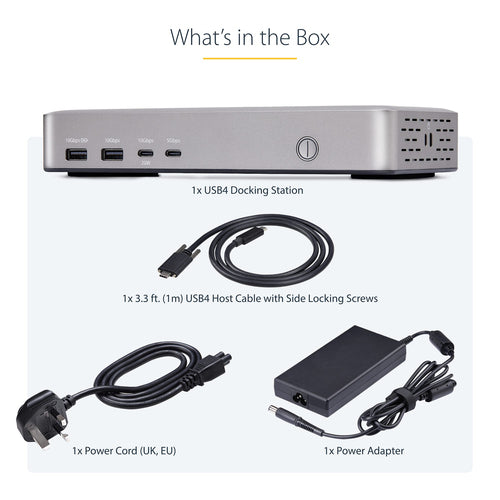

Packaging content
Cables included	USB
Quick start guide	Yes
Logistics data
Products per master (outer) case	8 pc(s)
Master (outer) case width	305 mm
Master (outer) case length	375 mm
Master (outer) case height	265 mm
Other features
Chipset	VIA - VL830, VIA - VL163, Realtek - RTD2188-VA-CG, Genesys Logic - GL9901NE
