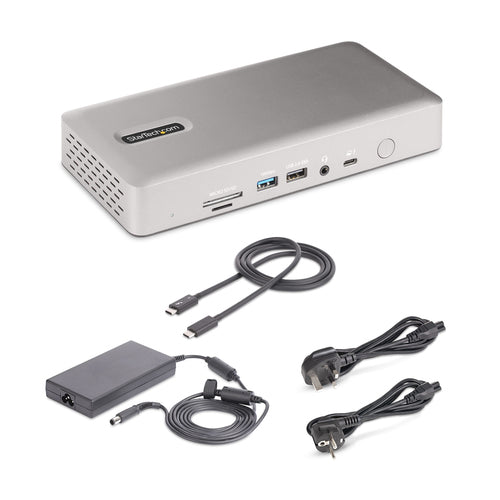

StarTech.com 132UE-TB4USB4DOCK laptop dock/port replicator
StarTech.com 132UE-TB4USB4DOCK laptop dock/port replicator
1 people are viewing this product
Regular price
£210.31 GBP
Sale price
£210.31 GBP
Regular price
£231.34 GBP
Shipping calculated at checkout.
StarTech.com Universal USB4 & Thunderbolt 4 Docking Station, Quad Display on Windows, Dual Display on MacBook, HDMI DP Dock with 98W Laptop Charging, Wired, Thunderbolt 4, 98 W, 3.5 mm, 10,100,1000,2500 Mbit/s, 2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T
Available stock: 39
-
Estimated delivery: Jul 08 - Jul 12
Share this product
Couldn't load pickup availability
Informations
Informations
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 98 W |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Copper ethernet cabling technology | 2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T |
| Full duplex | Yes |
| Performance | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Data transfer rate | 40 Gbit/s |

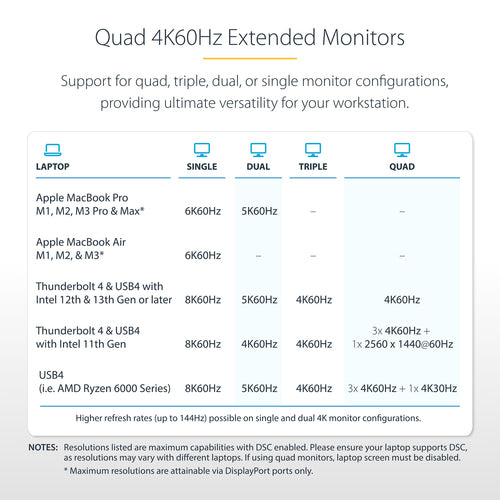

| HD type | 8K Ultra HD |
| Maximum digital resolution | 7680 x 4320 pixels |
| Maximum refresh rate | 60 Hz |

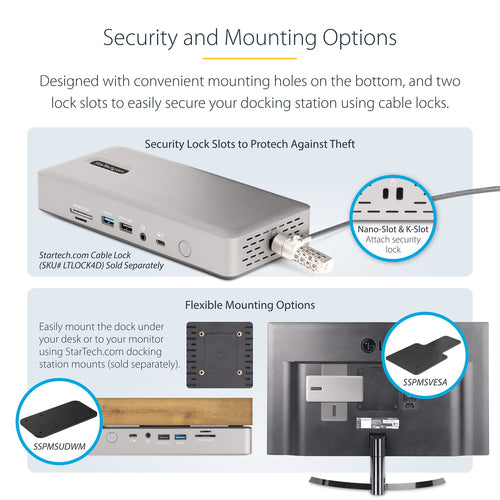

| Cable lock slot | Yes |
| Cable lock slot type | Kensington, Nano |
| Product colour | Grey |
| On/off switch | Yes |
| LED indicators | LAN, Power |
| UASP support | Yes |
| Housing material | Aluminium |
| Power | |
| Power source type | DC |
| AC input voltage | 110 - 240 V |
| Input current | 2.5 A |
| Output voltage | 20 V |
| Output current | 9 A |
| Power consumption (max) | 180 W |
| Compatible power plug types | EU, UK |
| Software | |

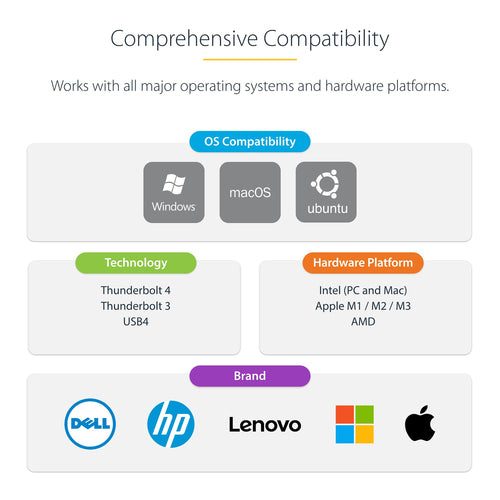

| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Sustainability | |
| Sustainability compliance | Yes |

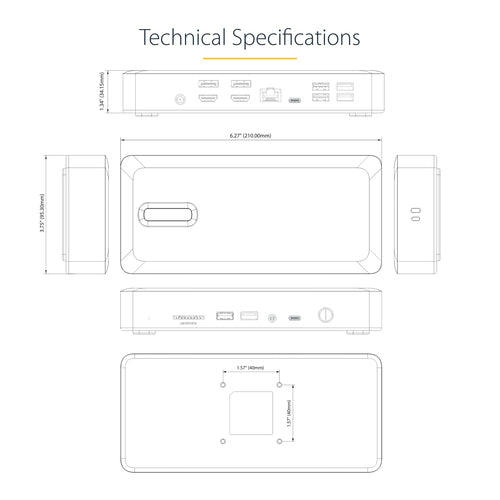

| Weight & dimensions | |
| Width | 210 mm |
| Depth | 96 mm |
| Height | 34 mm |
| Weight | 200 g |
| Packaging data | |
| Package width | 235 mm |
| Package depth | 145 mm |
| Package height | 90 mm |
| Package weight | 1.4 kg |

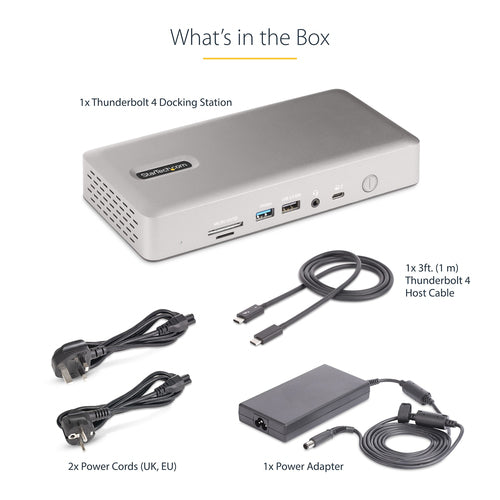

| Packaging content | |
| Cables included | Thunderbolt |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case height | 285 mm |
| Other features | |
| Chipset | Intel - JHL8440, Cypress - HX3PD, Parade - FL5801, Realtek - RTL8156BG, Genesys Logic - GL3231S, Realtek - ALC4030U, Realtek - RTD2188, Cypress - CCG5, TI - TPS2546 |
