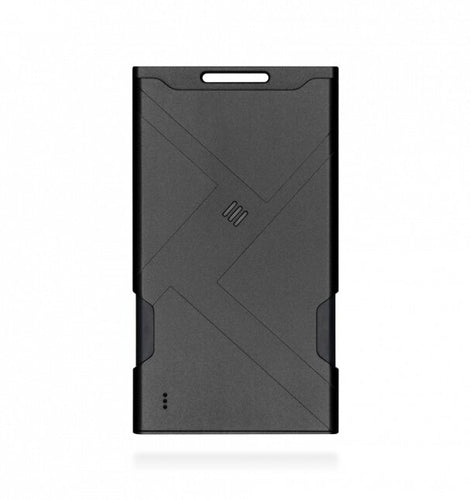

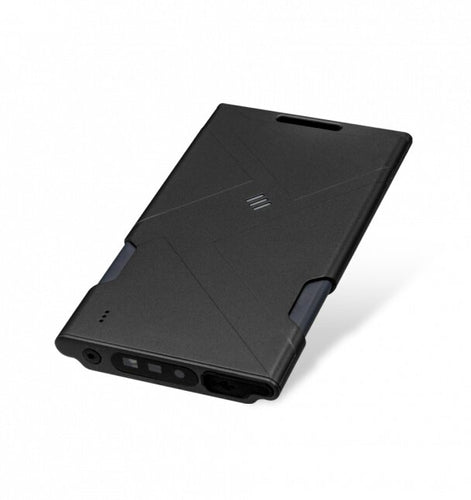

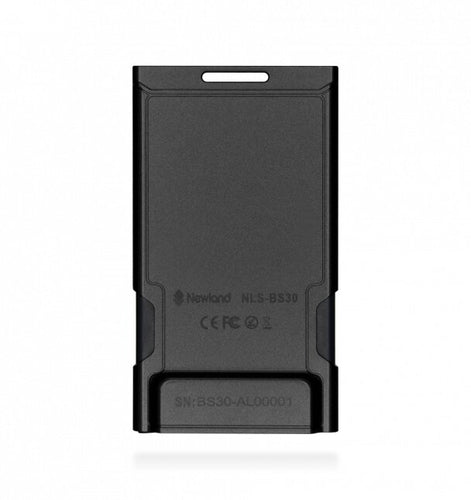

Newland WD3
Newland WD3Available stock: 35
-
Estimated delivery: Oct 07 - Oct 11
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Scanning | |
|---|---|
| Type | Wearable bar code reader |
| Scanner type | 1D/2D |
| Sensor type | CMOS |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), ISBN, ISSN, Interleaved 2 of 5, MSI, Plessey, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Grid Matrix Code, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Tilt reading angle | -55 - 55° |
| Pitch reading angle | -55 - 55° |
| Yaw reading angle | 0 - 360° |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Standard interfaces | Bluetooth, USB |
| Wireless range | 30 m |
| Bluetooth Low Energy (BLE) | Yes |
| Performance | |
| International Protection (IP) code | IP65 |
| Protection features | Drop proof, Electrostatic Discharge (ESD) protection |
| LED indicators | Yes |
| Buzzer | Yes |
| Print contrast | 25% |
| Product colour | Black |
| Certification | CE RED, FCC IF, SRRC, IEC 62471 |
| Power | |
| Power source type | Battery |
| Battery type | Built-in battery |
| Battery voltage | 5 V |
| Battery life | 8 h |
| Charging time | 2 h |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 110.8 mm |
| Depth | 62.3 mm |
| Height | 10.6 mm |
| Weight | 53 g |
| Packaging data | |
| Cables included | USB Type-C |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 300 mAh |
| Technical details | |
| Compliance certificates | RoHS |
