Newland FM430 Barracuda
Newland FM430 Barracuda
1 people are viewing this product
Regular price
£97.98 GBP
Sale price
£97.98 GBP
Regular price
£113.66 GBP
Shipping calculated at checkout.

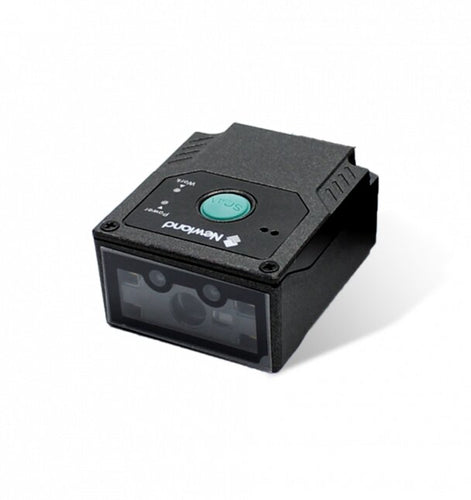

Newland FM430 Barracuda, Fixed bar code reader, 1D/2D, CMOS, Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, ITF-14, ITF-6, Industrial 2..., Aztec Code, Code 1, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, 1280 x 800 pixels
Available stock: 8
-
Estimated delivery: Jul 11 - Jul 15
Share this product
Couldn't load pickup availability
Informations
Informations
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Scanning | |
|---|---|
| Type | Fixed bar code reader |
| Scanner type | 1D/2D |
| Sensor type | CMOS |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, ITF-14, ITF-6, Industrial 2 of 5, MSI, Matrix 2 of 5, Plessey, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Code 1, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Read rate (max) | 60 reads/s |
| Tilt reading angle | -55 - 55° |
| Pitch reading angle | -55 - 55° |
| Yaw reading angle | 0 - 360° |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | USB |
| Cable length | 0.5 m |
| Performance | |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| International Protection (IP) code | IP54 |
| Protection features | Drop proof, Electrostatic Discharge (ESD) protection |
| Buzzer | Yes |
| Print contrast | 25% |
| Built-in processor | Yes |
| Processor frequency | 1000 MHz |
| Product colour | Black |
| Certification | FCC Part15 Class B, CE EMC Class B, IEC60825, IEC62471, KC |
| Power | |
| Power source type | USB |
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| AC adapter output voltage | 5 V |
| Power consumption | 276.8 mA |
| Weight & dimensions | |
| Width | 41.5 mm |
| Depth | 49.5 mm |
| Height | 24.3 mm |
| Weight | 75 g |
| Packaging data | |
| Cables included | USB |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Compliance certificates | RoHS |
