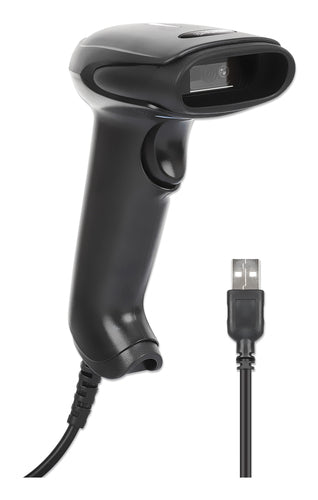

Manhattan 153997 barcode reader
Manhattan 153997 barcode reader
1 people are viewing this product
Regular price
£37.10 GBP
Sale price
£37.10 GBP
Regular price
£40.81 GBP
Shipping calculated at checkout.
Manhattan Contact CCD Handheld Barcode Scanner, USB, 60mm Scan Width, Cable 152cm, Max Ambient Light 5,000 lux (sunlight), Black, Three Year Warranty, Handheld bar code reader, 1D/2D, LED, Codabar, Code 11, Code 128, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar..., Aztec Code, Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code, 640 x 480 pixels
Available stock: 2
-
Estimated delivery: Jul 11 - Jul 15
Share this product
Couldn't load pickup availability
Informations
Informations
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1 Databar Limited, GS1 Databar RSS14, ISSN, Industrial 2 of 5, Interleaved 2 of 5, JAN-13, JAN-8, MSI, Matrix 2 of 5, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Optical sensor resolution (W x H) | 640 x 480 pixels |
| 1D resolution (min) | 0.1 mm |
| 2D resolution (min) | 0.17 mm |
| Working distance | 32 cm |
| Horizontal field of view | 36° |
| Vertical field of view | 28° |
| Read rate (max) | 100 reads/s |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | USB |
| Cable length | 1.4 m |
| Performance | |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Print contrast | 25% |
| Product colour | Black |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
| Power source type | USB |
| Input voltage | 5 V |
| Power consumption | 130 mA |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 150 mm |
| Height | 95 mm |
| Weight | 110 g |
| Packaging data | |
| Package width | 195 mm |
| Package depth | 80 mm |
| Package height | 105 mm |
| Package weight | 260 g |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Drop resistance | 1.2 m |
| Technical details | |
| Warranty period | 3 year(s) |
| Compliance certificates | CE, REACH, RoHS, UKCA, Federal Communications Commission (FCC) |
| Logistics data | |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case gross weight | 10.2 kg |
| Master (outer) case length | 565 mm |
| Master (outer) case width | 360 mm |
| Master (outer) case height | 400 mm |
