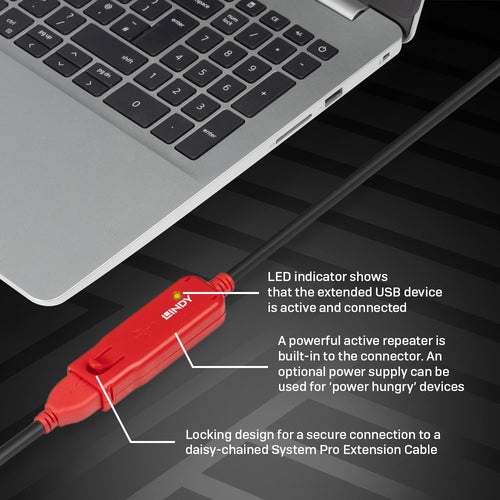

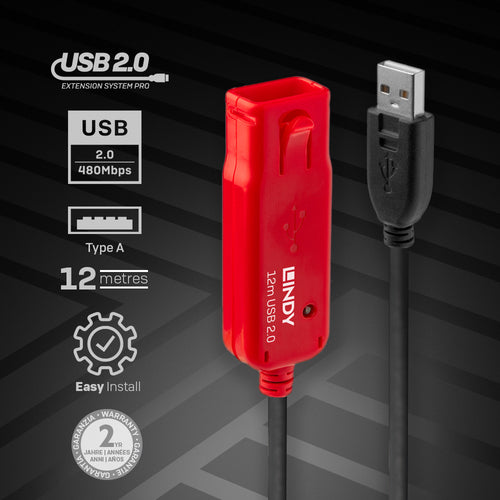

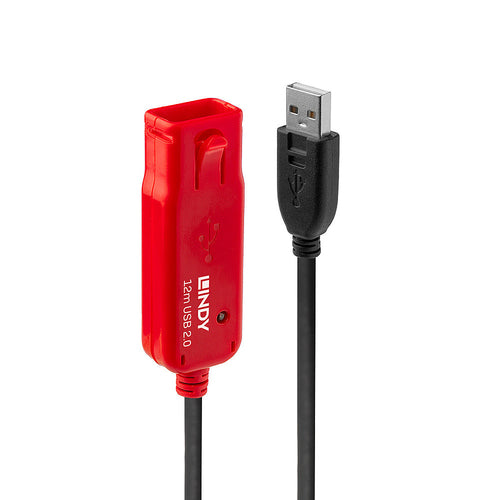

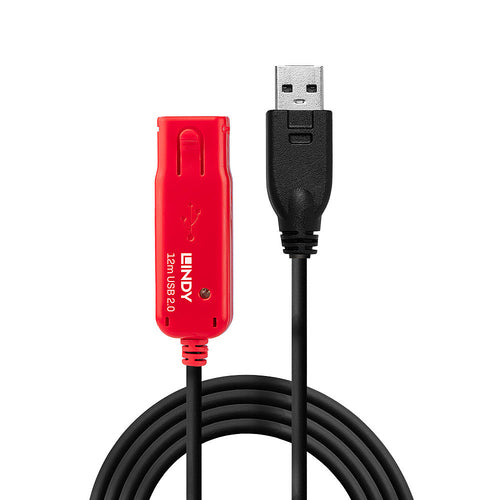

Lindy 42782 USB cable
Lindy 42782 USB cable
Available stock: 3
-
Estimated delivery: Oct 05 - Oct 09
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Features | |
|---|---|
| USB version | USB 2.0 |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 26/20 |
| Connector material | Gold/Nickel |
| Contact material | Brass |
| Connector contacts plating | Gold |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Tinned copper |
| Connector shield material | Aluminium |
| Connector housing material | Plastic |
| Maximum data transfer rate | 480 Mbit/s |
| Maximum data transfer rate | 0.48 Gbit/s |
| Cable type | Round cable |
| Product colour | Black |
| Transmission medium | Twisted pair |
| Nominal attenuation | 0.064 MHz, -0.08 dB 0.256MHz, -0.11 dB 0.512MHz, -0.13 dB 0.772 MHz, -0.15 dB 1 MHz, -0.2 dB 4 MHz, -0.39 dB 8 MHz, -0.57 dB 12 MHz, -0.76 dB 24 MHz, -0.95 dB 48 MHz, -1.35dB 96 MHz, -1.9 dB 200 MHz, -3.2 dB 400 MHz, -5.8 dB |
| Weight & dimensions | |
| Cable length | 12 m |
| Cable diameter | 5 mm |
| Weight | 420 g |
| Bend radius (min) | 2.6 cm |
| Connector 1 dimensions (WxDxH) | 15 x 43 x 8 mm |
| Connector 2 dimensions (WxDxH) | 20 x 64 x 13 mm |
| Packaging data | |
| Package type | Box |
| Package width | 238 mm |
| Package depth | 202 mm |
| Package height | 66 mm |
| Package weight | 597 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certificates | |
| Certification | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Compatible operating systems | Win ME, 2000, XP, Vista Mac OS Linux |
