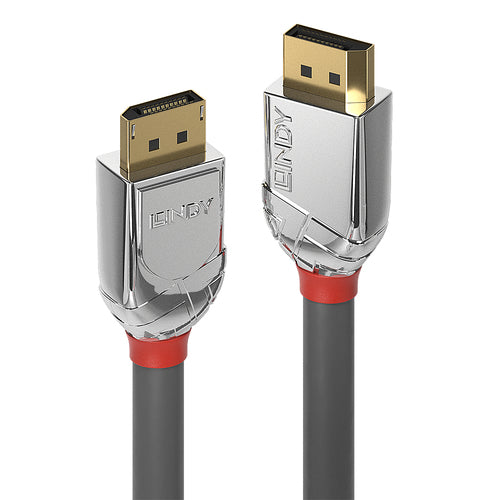

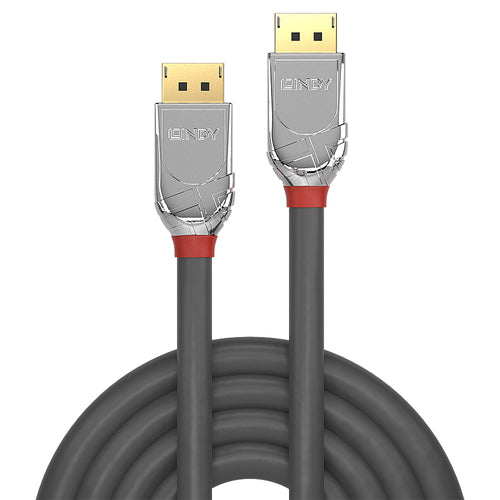

Lindy 36303 DisplayPort cable
Lindy 36303 DisplayPort cable
Available stock: 3
-
Estimated delivery: Oct 07 - Oct 11
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| DisplayPort version | 1.2 |
| Maximum resolution | 4096 x 2160 pixels |
| Supported video modes | 2160p |
| Maximum refresh rate | 60 Hz |
| 3D | Yes |
| Cable length | 3 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Chrome, Grey |
| Cable material | Tinned copper |
| Cable shielding | Copper |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| AWG wire size | 28 |
| Data transfer rate | 21.6 Gbit/s |
| Contact material | Phosphor bronze |
| Connector material | Gold |
| Colour sampling | 4:4:4 |
| Cable type | Round cable |
| Nominal attenuation | 300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Certificates | |
| Compliance certificates | REACH, RoHS |
| Certification | RoHS, REACH, UL |
| Weight & dimensions | |
| Cable diameter | 7.3 mm |
| Connector 1 dimensions (WxDxH) | 19.7 x 12 x 38.9 mm |
| Connector 2 dimensions (WxDxH) | 19.7 x 12 x 38.9 mm |
| Bend radius (min) | 7.3 cm |
| Packaging data | |
| Package type | Polybag |
| Packaging content | |
| Manual | Yes |
| Supplier features | |
| Product or Article Information Sheet available? | Yes |
| Logistics data | |
| Pallet net height | 3.89 cm |
| Harmonized System (HS) code | 84733080 |
