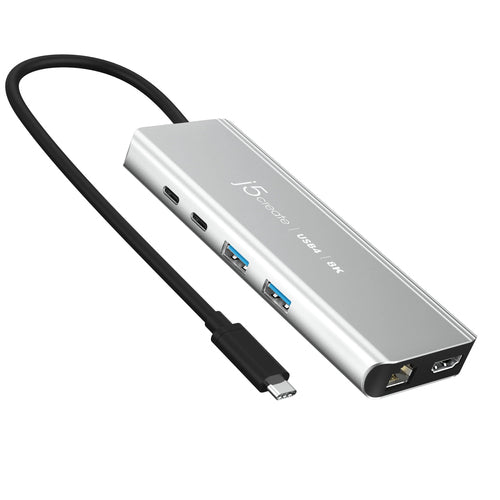

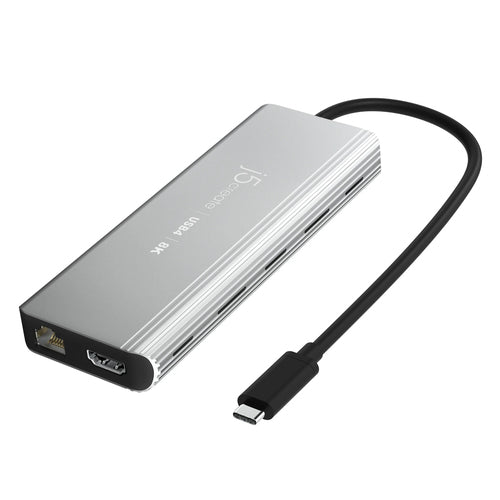

USB4 8K Multi-Port Hub j5create JCD403 Grey HDMI RJ-45 USB 3.2
USB4 8K Multi-Port Hub j5create JCD403 Grey HDMI RJ-45 USB 3.2
Enhance your connectivity options with the j5create USB4® 8K Multi-Port Hub. It's designed to elevate your workspace by connecting multiple devices seamlessly.
This multi-port hub is ideal for professionals and gamers alike, allowing you to connect HDMI displays, USB peripherals, and a wired network—all through a single USB Type-C connection.
- Supports USB4® with speed up to 10,000 Mbit/s
- Dual display support: 3840 x 2160 and 7680 x 4320 pixels

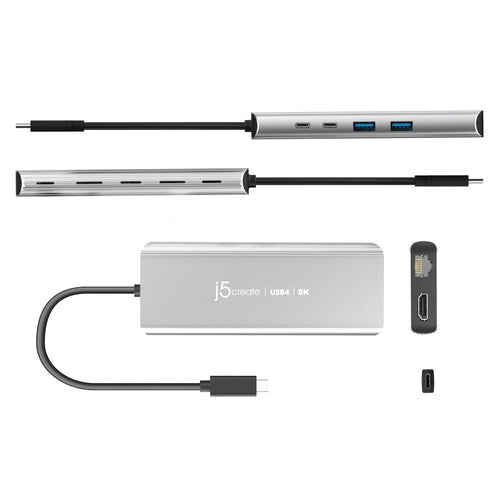

- Ports: HDMI, RJ-45, USB 3.2 Gen 2 Type-A, and Type-C
- Compact grey design for easy integration into any setup
Available stock: 13
-
Estimated delivery: May 30 - Jun 03
Share this product
Couldn't load pickup availability
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Ports & interfaces | |
|---|---|
| Host interface | USB Type-C |
| Hub interfaces | HDMI, RJ-45, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |

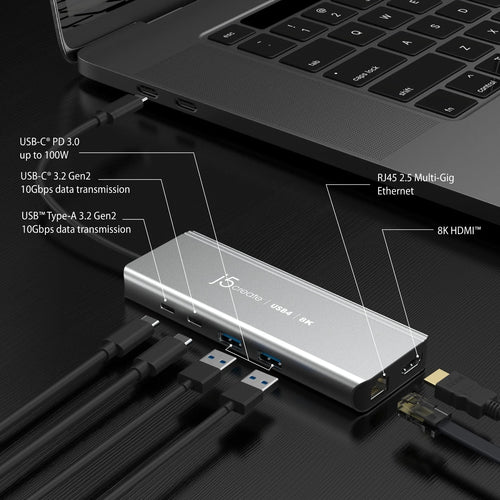

| I/O ports | 1- USB-C 3.2 Gen2 10Gbps data transmission 1- USB-C power delivery 3.0 100W 2- USB Type-A 3.2 Gen2 10Gbps data transmission 1- 8K HDMI 1- RJ45 2.5 Gigabit Ethernet |
| Ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Features | |
| Data transfer rate | 10000 Mbit/s |
| Supported graphics resolutions | 3840 x 2160, 7680 x 4320 |
| Maximum resolution (HDMI) | 7680 x 4320 pixels |
| Product colour | Grey |
| Housing material | Aluminium |
| USB Power Delivery revision | 3.0 |

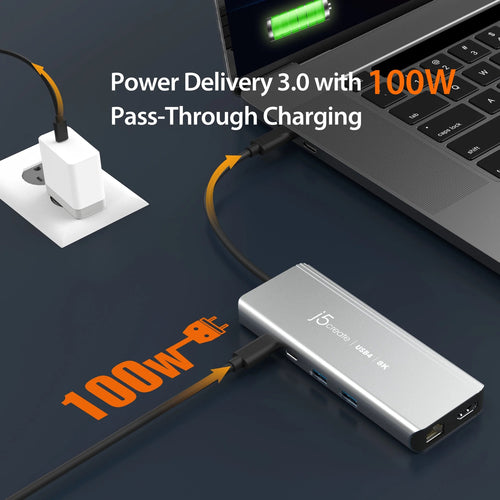

| USB Power Delivery up to | 100 W |
| HD type | 8K Ultra HD |
| Number of displays supported | 1 |
| Cable type | Round cable |
| Plug and Play | Yes |
| Country of origin | Taiwan |
| Compatible products | Available Thunderbolt 4, Thunderbolt 3, USB4, and USB-C host laptops. GPU and video source: DisplayPort 1.4 alt mode with DSC supports 8K 60 Hz or 4K 144Hz. DisplayPort 1.4 alt mode without DSC supports 8K 30 Hz or 4K 120 Hz. * DSC = VESA Display Stream Compression (DSC) Standard. Only available on NVIDIA GeForce RTX 20 Series and AMD Radeon RX 6000 Series GPUs or above. * Recommended Graphics Cards: Intel HD Graphics 620, Intel' HD Graphics 520 or above. * Notes: Macs supports up to 4K 60Hz on an 8K HDMI display. |
| Network | |
| Ethernet interface type | Gigabit Ethernet |

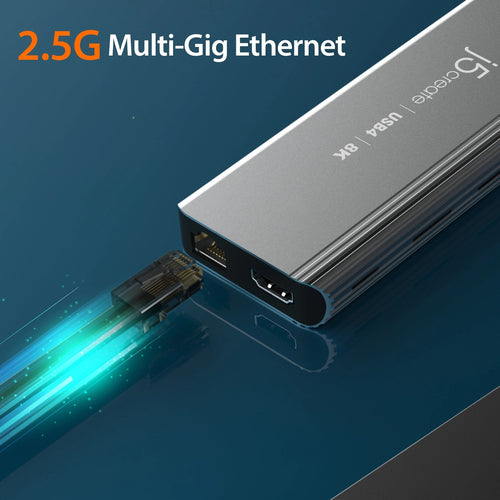

| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Power | |
| Power supply type | USB/AC |
| Power supply | 100 W |
| Input voltage | 20 V |
| Input current | 5 A |
| Output voltage | 20 V |
| Output current | 4.75 A |
| Power plug type | Type C |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
| Width | 51 mm |
| Depth | 15 mm |
| Height | 135 mm |
| Weight | 109 g |
| Packaging content | |
| AC adapter included | No |
| Quick start guide | Yes |
| Packaging content | 1 - JCD403 USB4 8K Multi-Port Hub 1 - Quick Installation Guide (QIG) |
| Operational conditions | |
| Operating temperature (T-T) | -1 - 41 °C |
| Operating temperature (T-T) | 30 - 116 °F |
| Storage temperature (T-T) | -17 - 68 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Technical details | |
| Warranty period | 2 year(s) |
