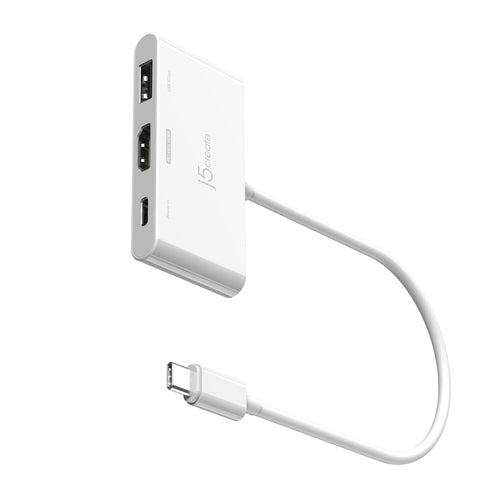

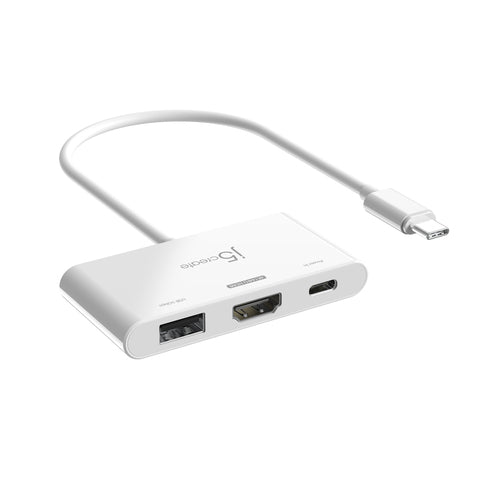

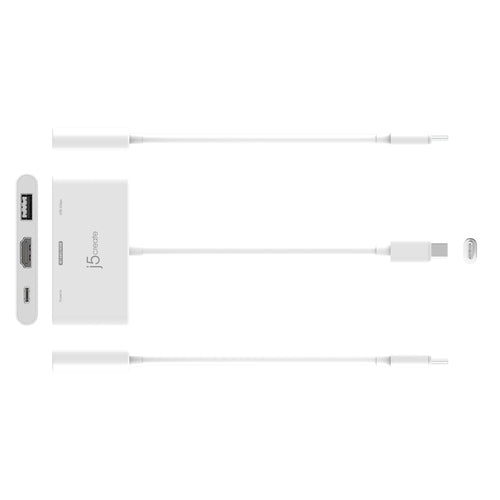

j5create JCA399-N interface hub
j5create JCA399-N interface hub
1 people are viewing this product
Regular price
£33.73 GBP
Sale price
£33.73 GBP
Regular price
£45.20 GBP
Shipping calculated at checkout.
j5create JCA399 USB-C® to HDMI™ 4K144Hz & USB™ 3.2 with Power Delivery 100W, Black, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, HDMI, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 5000 Mbit/s, 144 Hz, 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160, 1080p, 1440p, 2160p
Available stock: 11
-
Estimated delivery: Jun 30 - Jul 04
Share this product
Couldn't load pickup availability
Infomations
Infomations
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Hub interfaces | HDMI, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ports quantity | 3 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Features | |
| Data transfer rate | 5000 Mbit/s |
| Maximum refresh rate | 144 Hz |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160 |
| Supported video modes | 1080p, 1440p, 2160p |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Product colour | White |
| Housing material | Acrylonitrile butadiene styrene (ABS), Plastic |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| Cable length | 0.2 m |
| Country of origin | Taiwan |
| Power | |
| Power supply type | USB |
| Input voltage | 20 V |
| Input current | 5 A |
| Output voltage | 20 V |
| Output current | 4.5 A |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
| Weight & dimensions | |
| Width | 75 mm |
| Depth | 11 mm |
| Height | 45 mm |
| Weight | 31.5 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 170 mm |
| Package depth | 105 mm |
| Package height | 25 mm |
| Package weight | 101 g |
| Package type | Box |
| Packaging content | |
| Packaging content | 1 - USB-C® to HDMI™ 4K 144Hz & USB™ 3.2 with Power Delivery 100W (JCA399) 1 - Quick Installation Guide (QIG) |
| Operational conditions | |
| Minimum operating temperature | -1 °C |
| Maximum operating temperature | 41 °C |
| Operating temperature (T-T) | -1 - 41 °C |
| Operating temperature (T-T) | 30 - 106 °F |
| Storage temperature (T-T) | -17 - 68 °C |
| Performance | |
| Export Control Classification Number (ECCN) | EAR99 |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Master (outer) case net weight | 2.3 kg |
| Master (outer) case width | 255 mm |
| Master (outer) case length | 260 mm |
| Master (outer) case height | 224 mm |
| Products per master (outer) case | 16 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 24712795088209 |
| Shipping (inner) case width | 11.8 cm |
| Shipping (inner) case length | 19.9 cm |
| Shipping (inner) case height | 11.7 cm |
| Products per shipping (inner) case | 4 pc(s) |
| Shipping (inner) case net weight | 500 g |
| Technical details | |
| Warranty period | 2 year(s) |
| Compliance certificates | CE, REACH, RoHS |
| Other features | |
| Maximum resolution | 3840 x 2160 pixels |
