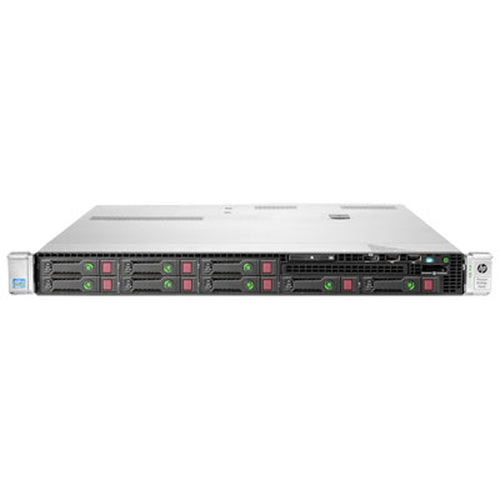

HPE ProLiant DL360p Gen8 server
HPE ProLiant DL360p Gen8 serverAvailable stock: 10
-
Estimated delivery: Oct 07 - Oct 11
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-2603V2 |
| Processor frequency | 1.8 GHz |
| Processor boost frequency | 1.8 GHz |
| Processor cores | 4 |
| Processor cache | 10 MB |
| Motherboard chipset | Intel C600 |
| Memory channels supported by processor | Quad |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 6.4 GT/s |
| Maximum number of SMP processors | 2 |
| Processor socket | LGA 2011 (Socket R) |
| Processor lithography | 22 nm |
| Processor threads | 4 |
| Processor operating modes | 64-bit |
| Bus type | QPI |
| Number of QPI links | 2 |
| Processor codename | Ivy Bridge EP |
| Tcase | 71 °C |
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory bandwidth supported by processor (max) | 42.6 GB/s |
| ECC supported by processor | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Maximum number of PCI Express lanes | 40 |
| PCI Express configurations | x4, x8, x16 |
| Processor package size | 52.5 x 45 mm |
| Supported instruction sets | AVX |
| Scalability | 2S |
| Physical Address Extension (PAE) | 46 bit |
| Embedded options available | No |
| Processor series | Intel Xeon E5-2600 v2 |
| Conflict-Free processor | No |
| Memory | |
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Memory slots | 24x DIMM |
| ECC | Yes |
| Memory clock speed | 1600 MHz |
| Memory layout (slots x size) | 1 x 4 GB |
| Maximum internal memory | 384 GB |
| Storage | |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| HDD size | 2.5" |
| Number of HDDs supported | 8 |
| RAID support | Yes |
| RAID levels | 0, 1, 1+0 |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 6 |
| VGA (D-Sub) ports quantity | 2 |
| Serial ports quantity | 1 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Design | |
| Chassis type | Rack (1U) |
| Software | |
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server Canonical Ubuntu Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Oracle Solaris VMware Citrix XenServer |
| Processor special features | |
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Demand Based Switching | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel® OS Guard | Yes |
| Intel 64 | Yes |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 0.00 |
| Processor ARK ID | 76157 |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply | 460 W |
| Number of main power supplies | 1 |
| Weight & dimensions | |
| Width | 434.7 mm |
| Depth | 698.5 mm |
| Height | 43.2 mm |
| Weight | 19.2 kg |
| Other features | |
| Graphics card | G200 |
| Graphics card family | Matrox |
